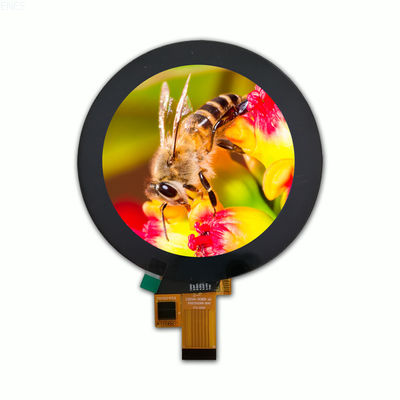

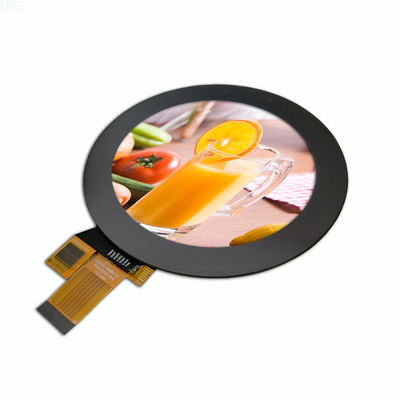

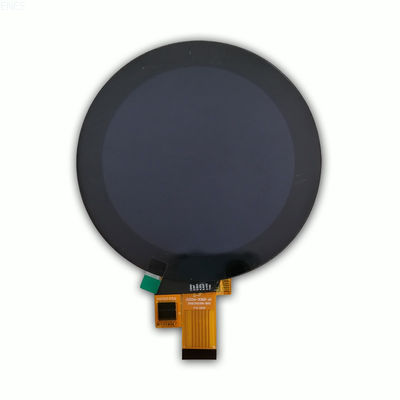

3.4'' 800 X 800 IPS Round TFT Display Instruments Screen Video HDMI Input Board

3.4'' 800 X 800 IPS Round TFT Display Instruments Screen Video HDMI Input Board
3.4'' 800 X 800 IPS Round TFT Display Instruments Screen Video HDMI Input Board
video play

Large Image :  3.4'' 800 X 800 IPS Round TFT Display Instruments Screen Video HDMI Input Board

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T034-30MB-A1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Size: 3.4 Inch Display Mode: Normally Black
Resolution: 800(RGB)x800 Pixel Pitch: 36.5(H) X 109.5(V)
Pixel Arrangement: RGB Vertical Stripe Viewing Direction: Free
Module Outline Dimension: 94.9 (H)*96.95 (V)*2.22(D) LCD AA: 87.6 (H)* 87.6 (V)
Colors: 16.7M Surface Lumiannce: 400/cd
Driver IC: JD9365DA Interface: MIPI
Backlight: White LED Operating Temperature: -20℃~ +70℃
Storage Temperature: -25℃~ +75℃ Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

800 X 800 round tft display

,

IPS round tft display

,

3.4'' hdmi input board

3.4'' 800 X 800 IPS Round TFT Display Instruments Screen Video HDMI Input Board
Product Specifications
Attribute Value
LCD size 3.4 inch
Display Mode Normally Black
Resolution 800(RGB)x800
Pixel pitch 36.5(H) x 109.5(V)
Pixel Arrangement RGB Vertical Stripe
Viewing direction Free
Module outline dimension 94.9 (H)*96.95 (V)*2.22(D)
LCD AA 87.6 (H)* 87.6 (V)
Colors 16.7M
Surface Lumiannce 400/cd
Driver IC JD9365DA
Interface MIPI
Backlight White LED
Operating Temperature -20℃~ +70℃
Storage Temperature -25℃~ +75℃
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Product Overview

3.4 inch IPS industrial instruments meters LCD round PACP touch screen circular display HDMI board with high-quality performance and versatile applications.

Key Features
Panel Size: 3.4 inch Resolution: 800(RGB)×800 Display Area: 87.6(W)×87.6(H) mm Brightness: 350 cd/m² (Typ.) Contrast Ratio: 800:1 (Typ.) Viewing Angle: 80/80/80/80 (Typ.) Display Colors: 16.7M 70% NTSC Operating Temperature: -20 ~ 70 °C Signal Interface: MIPI (3 data lanes), 39 pins, FPC
Applications

Ideal for industrial applications, instruments & meters, and round display requirements.

Advantages
High quality components Large stock availability Cost-effective solution Multiple customization options Complete turnkey LCD display project solutions

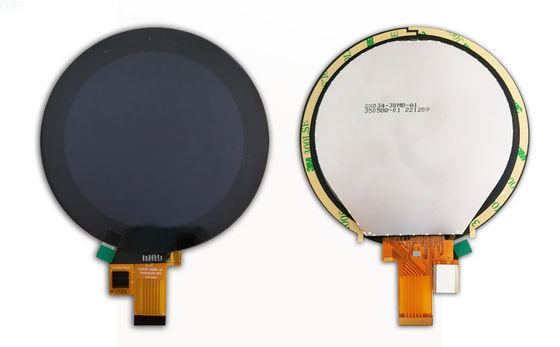

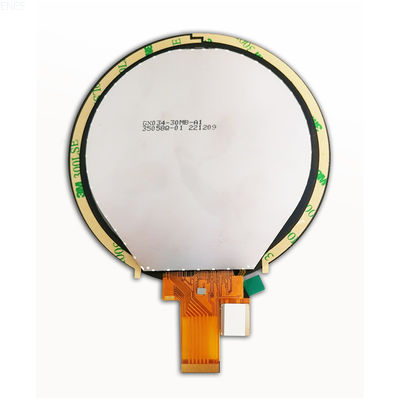

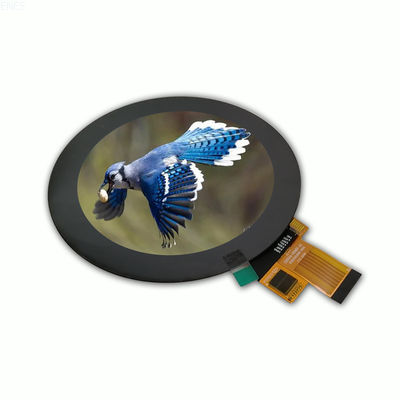

Product Images
3.4'' 800 X 800 IPS Round TFT Display Instruments Screen Video HDMI Input Board 0 3.4'' 800 X 800 IPS Round TFT Display Instruments Screen Video HDMI Input Board 1
Frequently Asked Questions
What kinds of display does TSD have?

TSD specializes in manufacturing TFT LCD displays, Monochrome LCD displays, Touch Screens, customized LCD panels, COB and COG displays.

How can I find the right product?

Please send us your requirements or datasheet. We will recommend our standard products, or make necessary adjustments for customization.

Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity orders as pilot production (no less than MOQ).

What are the payment terms?

We usually accept T/T, Paypal, with other terms negotiable.

What's the lead time?

Typically 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (based on quantity and product specifics).
