5'' FHD 1080P Round TFT LCD Display 1080x1080 With High Brightness 400cd

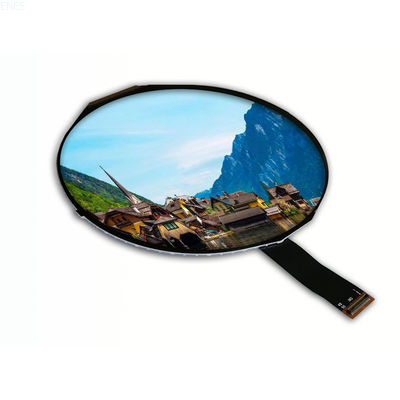

Large Image : 5'' FHD 1080P Round TFT LCD Display 1080x1080 With High Brightness 400cd

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TS050YMM-J40

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	5.0 Inch	LCD IC:	HX8399C
Operating Temperature:	-20℃~ +60℃	Storage Temperature:	-30℃~ +70℃
Active Area:	127.008 (H) ×127.008 (V)	Number Of Pixels:	1080(H) RGB × 1080(V)
Pixel Pitch:	0.1176 (H) ×0.1176 (V)	Pixel Arrangement:	1pixel 2domain
Display Colors:	16.7 M	Color Gamut:	65%(Min.) 70%(typ.)
Display Mode:	Normally Black, Transmissive Mode	Dimensional Outline:	136.531x132.208x1.98mm
Viewing Direction (Human Eye):	U/D/L/R Free Viewing Direction	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	1080P round tft lcd display , 5'' round tft lcd display , 1080x1080 round tft lcd

5'' FHD 1080P Round TFT LCD Display 1080x1080 With High Brightness 400cd

Product Specifications

Attribute	Value
LCD size	5.0 inch
LCD IC	HX8399C
Operating Temperature	-20℃~ +60℃
Storage Temperature	-30℃~ +70℃
Active Area	127.008 (H) ×127.008 (V)
Number of Pixels	1080(H) RGB × 1080(V)
Pixel Pitch	0.1176 (H) ×0.1176 (V)
Pixel Arrangement	1pixel 2domain
Display Colors	16.7 M
Color Gamut	65%(Min.) 70%(typ.)
Display Mode	Normally Black, Transmissive mode
Dimensional Outline	136.531x132.208x1.98mm
Viewing Direction (Human Eye)	U/D/L/R free viewing direction
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

5-inch FHD 1080P 1080x1080 TFT LCD module with high brightness 400cd

Full HD image quality
Professional school color restoration authenticity
The 5-inch physical resolution 1080 * 1080 LCD, and the display screen is more delicate and clear after professional color correction
IPS Full View | 400cd/m² brightness

Absolute Maximum Ratings

Electrical Specifications

Frequently Asked Questions

Q1: Do you accept customization displays and touch screens?

A: Sure, you can customize the FPC, Backlight and the touch screen.

Q2: What type of interface is your display screen?

A: Small sized displays generally support SPI, MCU, RGB, MIPI. Medium sized displays generally support LVDS, MIPI, EDP. Different specifications use different interfaces.

Q3: Do you used capacitive touch screen or resistive touch screen?

A: We have capacitive touch screen and resistive touch screen.

Q4: What is your sample policy?

A: If there is stock, you can sample at any time. If there is no stock, it will take some time to wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q5: How long is your lead time for mass production?

A: It takes about 20 - 45 working days for mass production, depending on the model and order quantity.

Q6: How to ensure long-term stable delivery?

A: First, we will recommend products that can be delivered for a long time to customers, and second, we will have a large number of stocks in advance for a long time.

Q7: What is your mode of payment for mass production?

A: Generally, after receiving 50%-100% deposit from customers, they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q8: Will you inspect the goods before delivery?

A: Yes, we'll ship the goods after 100% inspection.

Q9: How long is your warranty period?

A: We guarantee the quality for one year.
