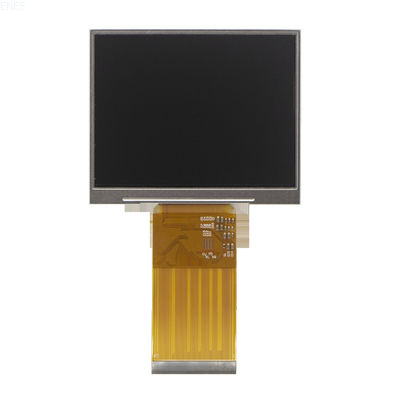

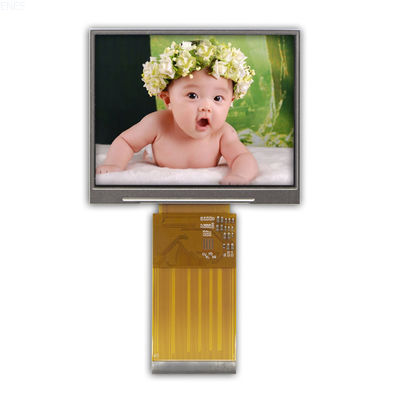

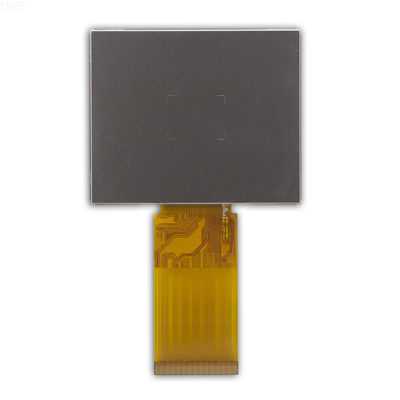

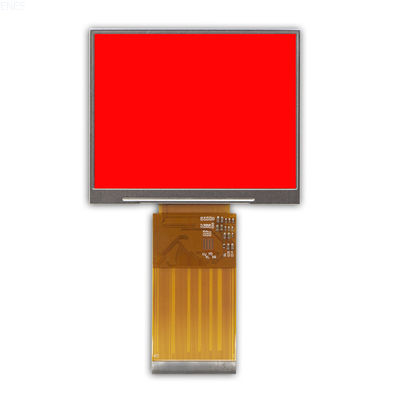

3.5 Inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219 With RTP

Large Image : 3.5 Inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219 With RTP

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ENSN
Certification:	ISO9001/ISO14001
Model Number:	T035Q08-T
Document:	T035Q08-T full spec.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000/PCS
Price:	Please enquiry
Packaging Details:	All products are packaged in an appropriate and correct manner.
Delivery Time:	2-4 weeks
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	3.5inch	Resolution:	320(horizontal)*240(Vertical)
Interface:	18/16/9/8 Bit Parallel InterfaceSerial Peripheral Interface	Connect Type:	Connector
Color Depth:	262K	Technology Type:	A-Si
Driver IC:	SSD2219	LCM (W X H X D) (mm):	76.9064.03.1
Display Spec. Pixel Pitch (mm):	0.219 X 0.219	Storage Temperature:	-30'c~+80°c
Working Temperature:	-20C~+70°C	Pixel Configuration:	R.G.B. Vertical Stripe
Display Mode:	Normally White	Surface Treatment:	HC
Viewing Direction:	6 O’clock	Active Area(mm):	70.08 X 52.56
With /Without TSP:	With RTP	Weight (g):	TBD
LED Numbers:	6 LEDs

3.5inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219 With RTP

Absolute Maximum Ratings

Item	Symbol	MIN	MAX	Unit	Remark
Supply Voltage	VDD	-0.3	5.0	V
Input Signal Voltage	Vin	-0.3	VDD+0.3	V
Logic Output Voltage	VOUT	-0.3	VDD+0.3	V
Operating Temperature	TOPR	-20	70	℃
Storage Temperature	TSTG	-30	80	℃

4. Operating conditions:

Parameter	Symbol	MIN	TYP	MAX	Unit	Remark
Power Voltage	Vcc	3.0	3.3	3.6	V
Digital Operation Current	Icc		8.6		mA
Gate On Power	VCOMH	2.5	13.9	4.5	V
Gate Off Power	VGH	-	-13.6	15	V
Vcom High Voltage	VcomH	-	3.9	-	V	Note1
Vcom low Voltage	VcomL	-	-1.2	-	V	Note1
Vcom level max	VcomA	-	-	6	V

Note1. VcomH& VcomL:Adjust the color with gamma data. Vp-p should be higher then 4V.(Option 5V)

Note2: Viewing direction is follow the data which measured by optics equipment.

Note3: Requirements on Environmental Protection: RoHS

Note4: LCM weight tolerance: +/- 5%

Drawing:

3.5 Inch Tft Lcd 3.5inch Lcd Module 320x240 Resolution IC SSD2219 With RTP 0

FAQ

Q: What is the backlight color of the T035Q08-T?
A: The backlight color of the product is white.

Q: What temperature range can the T035Q08-T operate in?
A: The product can operate in a wide temperature range of -20 ~ +70 ℃.

Q: Does the T035Q08-T come with any certificates?
A: Yes, the product has RoHS, CE, and FCC certificates.

Q: What is the warranty period for the T035Q08-T?
A: The product has a one-year warranty period.

Q: What is the MOQ for the T035Q08-T?
A: The MOQ for the product is 1 piece.

Q: What is the delivery period for the T035Q08-T?
A: The delivery period for the product is 7-15 working days.

Q: How do I pay for my order?
A: Payment for orders can be made via T/T.

A: How to guarantee the quality of your products and services?
Q: Our products and services have obtained ISO9001 certification, which ensures that our products and services meet international quality standards. All of our products provide CE, FCC, RoHS certificates, which guarantee our products meet international safety standards. Our engineers can directly connect with customers, provide customers with professional solutions, and assist customers to solve problems. In addition, we also provide long-term after-sales service to ensure that customers can enjoy the best service. Both our products and services have been recognized and praised by customers, because we always adhere to customer-centricity and provide customers with the best service and the highest quality products.

A: How do you ensure long-term and stable supply of your products and services?
Q: We are a professional manufacturer, focusing on providing customers with high-quality LCD display solutions. We have an independent TFT Lcd manufacturing plant, R&D technical department team and sales team to ensure that our products and services can meet the needs of customers. Our engineers can directly connect with customers, provide customers with professional solutions, and assist customers to solve problems. In addition, we also provide long-term after-sales service to ensure that customers can enjoy the best service. Both our products and services have been recognized and praised by customers, because we always adhere to customer-centricity and provide customers with the best service and the highest quality products.

A: How do your products and services ensure customer satisfaction?
Q: We always adhere to customer-centricity and provide customers with the best service and the highest quality products. Our engineers can directly connect with customers, provide customers with professional solutions, and assist customers to solve problems. In addition, we also provide long-term after-sales service to ensure that customers can enjoy the best service.
