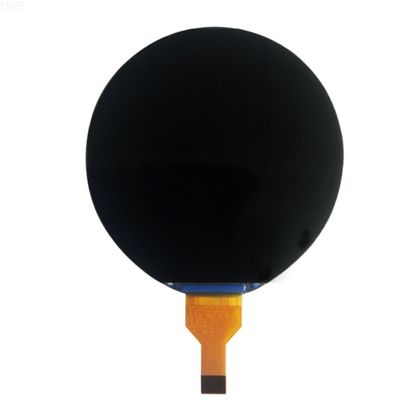

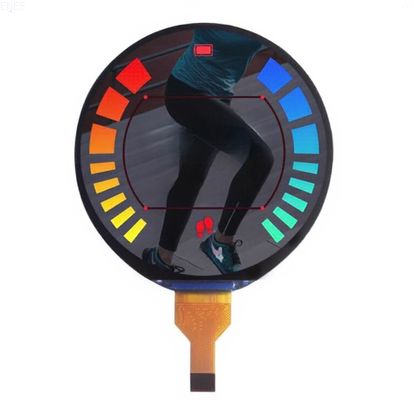

1.8 Inch IPS Round TFT LCD Display 360 X 360 MIPI ST77916 Smartwatch 15pin

1.8 Inch IPS Round TFT LCD Display 360 X 360 MIPI ST77916 Smartwatch 15pin
1.8 Inch IPS Round TFT LCD Display 360 X 360 MIPI ST77916 Smartwatch 15pin
video play

Large Image :  1.8 Inch IPS Round TFT LCD Display 360 X 360 MIPI ST77916 Smartwatch 15pin

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T180TFN31A
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 3-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Model No.: 1.8 Inch Type: IPS
Resolution: 360*360 Viewing Direction: ALL
Driver LC: ST77916 Number Of LED3-LED Chips: 3-LED
Electric Current: 60mA Working Temperature:: -20℃~70℃
Storage Temperature:: -30℃~80℃ Planar Warping Degree: ≤0. 35mm
Highlight:

IPS Round TFT LCD Display

,

1.8 Inch Round TFT LCD Display

,

360 X 360 round lcd module

1.8 Inch IPS Round TFT LCD Display 360 X 360 MIPI ST77916 Smartwatch 15pin
Product Specifications
Attribute Value
Model No. 1.8 inch
Type IPS
Resolution 360*360
Viewing Direction ALL
Driver IC ST77916
Number Of LED Chips 3-LED
Electric Current 60mA
Working Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Planar Warping Degree ≤0.35mm
Display Features
  • Display Type: TFT LCD Display
  • Model No.: T180TFN31A
  • Display Size: 1.8 inch
  • Resolution: 360*360
  • Interface: MIPI 1 Lane
  • Viewing Angle: IPS Full Viewing Angle
  • Luminance: 300cd/m²
  • Outline Dimension: 48.08(H)*49.95(V)*1.96(T)mm
  • Active Area: 45.68(H)*45.68(V)mm

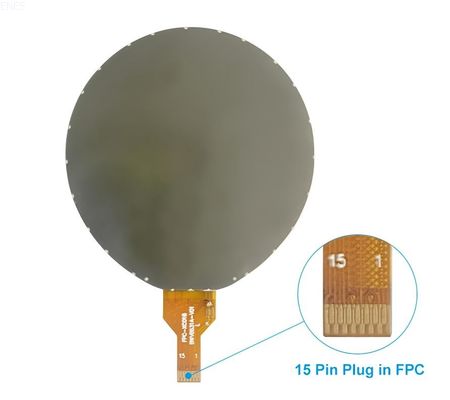

  • FPC Connecting Method: 15 Pin Plug in FPC
  • Touch Panel: Without touch (supports customization)
Product Diagram
1.8 Inch IPS Round TFT LCD Display 360 X 360 MIPI ST77916 Smartwatch 15pin 0
Pin Description
1.8 Inch IPS Round TFT LCD Display 360 X 360 MIPI ST77916 Smartwatch 15pin 1
Customization Services
Customization Process:
  1. Contact Service
  2. Confirm Requirements
  3. Provide Solution
  4. Customer Approve
  5. Process Tooling
  6. Confirm Samples
Backlight Customization Options:
  • Dimension
  • Using Life
  • LED Color
  • Luminance <1000cd/m²
Touch Panel Customization Options:
  • Shape
  • Dimension
  • FPC
  • Touch Points (Single/Multi)
FPC Customization Options:
  • Shape
  • Dimension
  • Pin Definition
  • EMI Film
Additional Information

Testing board is optional. For datasheet, initial code, and any customization requirements, please contact our service team.
