2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance

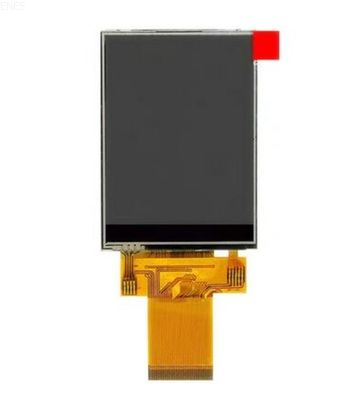

Large Image : 2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T028QV25

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

DISPLAY TYPE:	CTC 2.8" TFT	MAIN LCD DRIVER IC:	ILI9341V
VIEWING DIRECTION:	6 0’CLOCK	GRAY SCALE INVERSION DIRCTION:	12 O’CLOCK
OPTIMUM VIEWING ANGLE::	12 O’CLOCK	LUMINANCE:	230MIN Cd/M2 250TYP Cd/M2
OPERATING TEMP:	-20°C~70°C	STORAGE TEMP:	-30°C~80°C
INTERFACE:	4 SPI
Highlight:	LCD resistive touchscreen , 2.8'' resistive touchscreen , 240 X 320 resistive touchscreen monitor

2.8'' TFT LCD Resistive Touchscreen SPI 240 X 320 ILI9341V IC Tapeable Resistance

Product Specifications

Attribute	Value
DISPLAY TYPE	CTC 2.8" TFT
MAIN LCD DRIVER IC	ILI9341V
VIEWING DIRECTION	6 0'CLOCK
GRAY SCALE INVERSION DIRCTION	12 O'CLOCK
OPTIMUM VIEWING ANGLE	12 O'CLOCK
LUMINANCE	230MIN Cd/M2 250TYP Cd/M2
OPERATING TEMP	-20°C~70°C
STORAGE TEMP	-30°C~80°C
INTERFACE	4 SPI

Circuit diagram of the 2.8-inch TFT LCD module

Product Overview

The T028Q11 is a 2.8-inch wide LCD module featuring thin film transistors as active elements with a resolution of 240(H) × 320(V) pixels. Each pixel consists of red, green, and blue dots arranged in vertical stripes. This normally white mode display is designed for transmission-type applications and does not include a built-in backlight unit (BLU) or circuit board.

General Specifications
