MIPI RGB Interface ST7701S IPS TFT LCD Display 2.8'' 2.76'' Round 480x480

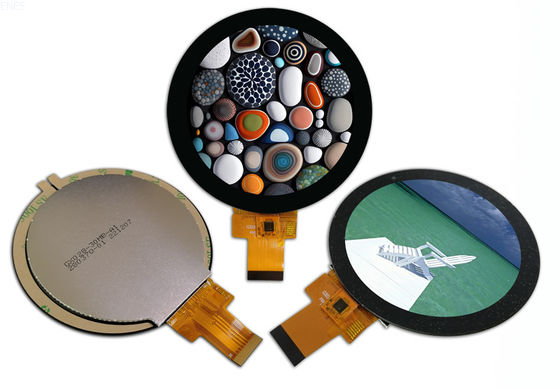

Large Image : MIPI RGB Interface ST7701S IPS TFT LCD Display 2.8'' 2.76'' Round 480x480

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX028-30MB-A1-CTP

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board	LCD Size:	2.76 Inch
Display Mode:	Normally Black	Resolution:	480(RGB)x480
Pixel Pitch:	0.1497(H) X 0.1462(V)	Pixel Arrangement:	RGB Vertical Stripe
Viewing Direction:	Free	Module Outline Dimension:	73.03 (H)76.48 (V)2.3(D)
LCD AA:	70.128 (H)* 70.128 (V)	TP VA:	--
Colors:	16.7M	Surface Lumiannce:	300/cd
Driver IC:	ST7701SN	Interface:	MIPI
Backlight:	White LED	Operating Temperature:	-20℃~ +60℃
Storage Temperature:	-30℃~ +80℃
Highlight:	IPS tft lcd display , ST7701S tft lcd display , 2.76'' resistive touch screen display

MIPI RGB Interface ST7701S IPS TFT LCD Display 2.8'' 2.76'' Round 480x480

Product Specifications

Attribute	Value
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
LCD size	2.76 inch
Display Mode	Normally Black
Resolution	480(RGB)x480
Pixel pitch	0.1497(H) x 0.1462(V)
Pixel Arrangement	RGB Vertical Stripe
Viewing direction	Free
Module outline dimension	73.03 (H)76.48 (V)2.3(D)
LCD AA	70.128 (H)* 70.128 (V)
TP VA	--
Colors	16.7M
Surface Lumiannce	300/cd
Driver IC	ST7701SN
Interface	MIPI
Backlight	White LED
Operating Temperature	-20℃~ +60℃
Storage Temperature	-30℃~ +80℃

Product Overview

The 2.8-inch circular IPS TFT LCD display features a 480x480 resolution with vivid color reproduction and excellent viewing angles. This high-performance display module combines MIPI and RGB interfaces for optimal data transmission and color accuracy, powered by the ST7701S driver IC for stable operation.

Key Features

Circular 2.8-inch IPS TFT LCD with 480x480 resolution
Dual interface design (MIPI and RGB) for flexible integration
ST7701S driver IC ensures stable display performance
300 cd/m² surface luminance for bright, clear visibility
Wide operating temperature range (-20℃ to +60℃)
16.7 million colors with RGB vertical stripe pixel arrangement
Customizable options including touch panels and connectors

Applications

Ideal for smart terminals, handheld devices, and creative product designs requiring circular displays. Perfect for applications demanding high-quality visual interfaces with responsive touch capabilities.

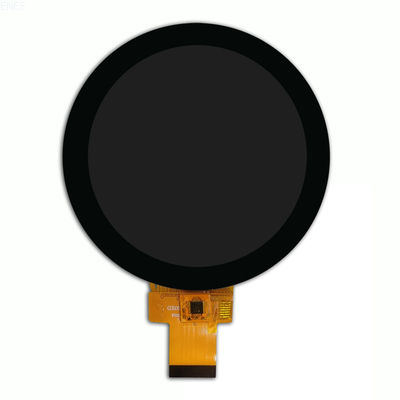

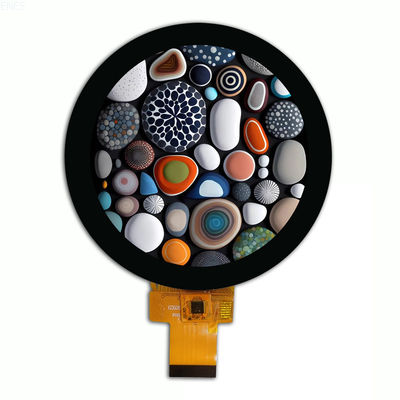

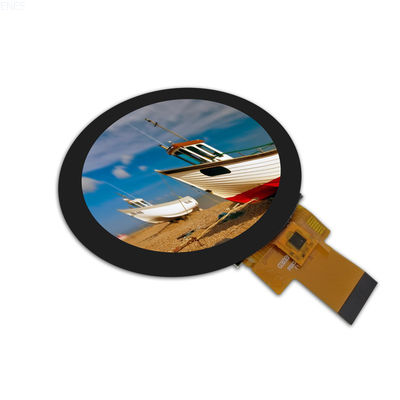

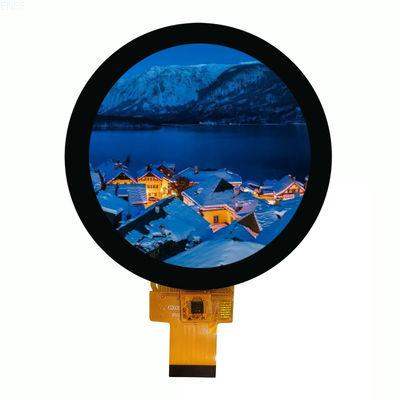

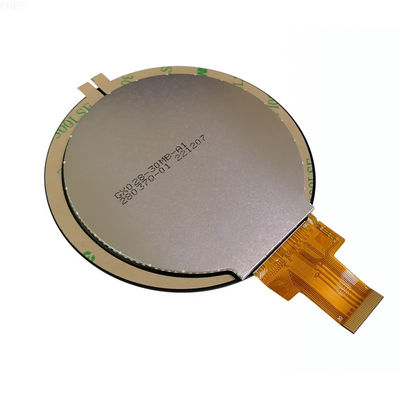

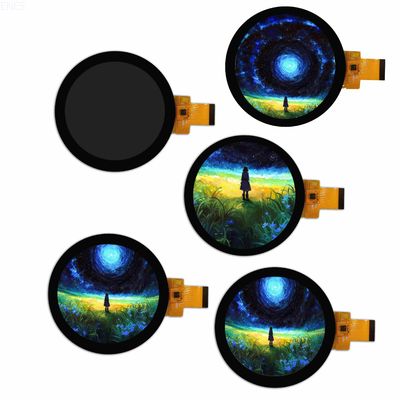

Product Images

Frequently Asked Questions

Q: Are you manufactory or trade company?

A: We are manufactory in China. Our factory located in Dongguan, and office located in Shenzhen.

Q: How can I get the samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea colle.

Q: Can you design the LCD in accordance with our demand?

A: Sure. We have professional team to meet all your demand.

Q: How to place orders?

A: If you confirm samples ok, Please send us your purchase order by Email or Fax, Then we will send you an Invoice for deposit payment. We need to know the following information of your order:
1. Product information-Quantity, part number
2. Delivery time required.
3. Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.
4. Forwarder's contact details if you have any in China.

Q: How long of mass production?

A: 25-30 business days. It depends on different order quantities and part number.
