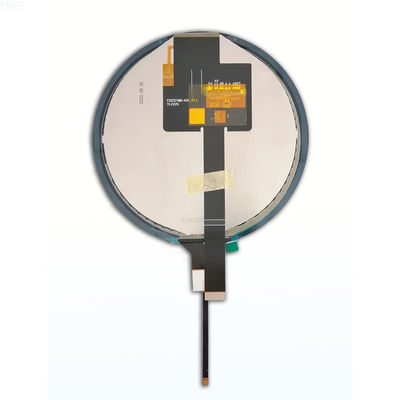

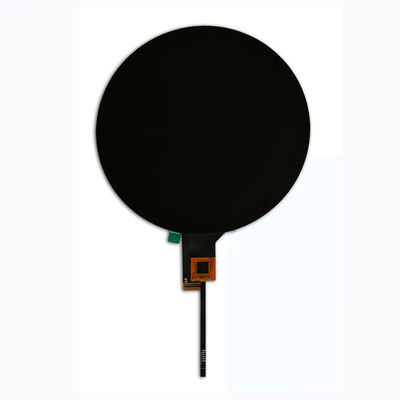

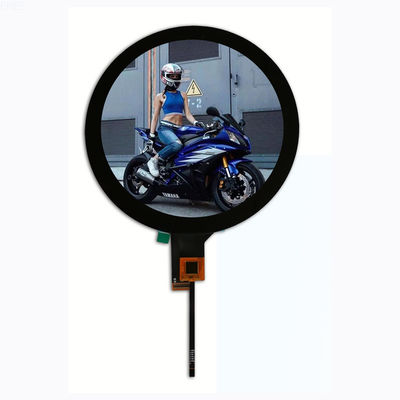

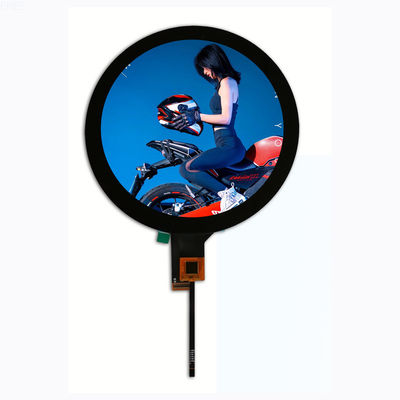

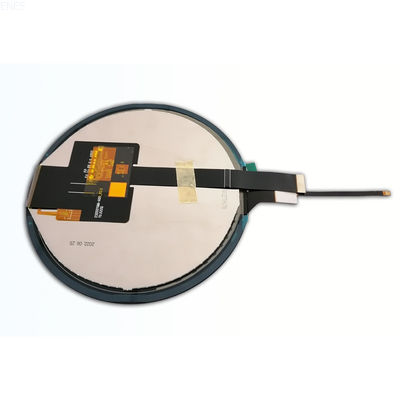

1080x1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

Large Image : 1080x1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TS050YMM-J40-CT

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	5.0 Inch	LCD IC:	HX8399C
Operating Temperature:	-20℃~ +60℃	Storage Temperature:	-30℃~ +70℃
Active Area:	127.008 (H) ×127.008 (V)	Number Of Pixels:	1080(H) RGB × 1080(V)
Pixel Pitch:	0.1176 (H) ×0.1176 (V)	Pixel Arrangement:	1pixel 2domain
Display Colors:	16.7 M	Color Gamut:	65%(Min.) 70%(typ.)
Display Mode:	Normally Black, Transmissive Mode	Dimensional Outline:	136.531x132.208x1.98mm
Viewing Direction (Human Eye):	U/D/L/R Free Viewing Direction	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	MIPI 5 inch round lcd display , 1080x1080 5 inch round lcd display , HX8399C lcm panel

1080×1080 IPS MIPI DSI 5 Inch Round LCD Display Color TFT LCM Panel HX8399C 50Pin

Product Specifications

Attribute	Value
LCD size	5.0 inch
LCD IC	HX8399C
Operating Temperature	-20℃~ +60℃
Storage Temperature	-30℃~ +70℃
Active Area	127.008 (H) ×127.008 (V)
Number of Pixels	1080(H) RGB × 1080(V)
Pixel Pitch	0.1176 (H) ×0.1176 (V)
Pixel Arrangement	1pixel 2domain
Display Colors	16.7 M
Color Gamut	65%(Min.) 70%(typ.)
Display Mode	Normally Black, Transmissive mode
Dimensional Outline	136.531×132.208×1.98mm
Viewing Direction	U/D/L/R free viewing direction
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

The TS050YMM-J40-CT is a color active matrix TFT-LCD Panel using LTPS TFT's (Thin Film Transistors) as active switching devices. This model combines a TFT-LCD Panel, driving circuit and backlight system in a transmissive type display operating in normal black mode.

The 5.0 inch diagonally measured active area features FHD resolution (1080×1080 pixel array) with each pixel divided into Red, Green, and Blue dots arranged in 1pixel 2 domain configuration, capable of displaying 16.7M colors.

0.2t Glass (Single)
High contrast ratio and wide viewing angle
Module Design
RoHS Compliant

Frequently Asked Questions

How can I find the right product?

Please send us your requirements or datasheet. We will recommend our standard products, and if none fit, we can make necessary adjustments and customizations.

Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity orders for pilot production (no less than MOQ).

What are the payment terms?

We usually accept T/T and Paypal, with other terms available through negotiation.

What's the lead time?

Typically 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (depending on quantity and specific product requirements).
