4'' IPS Round LCD Display 720 X 720 Resolution With SPI RGB Interface

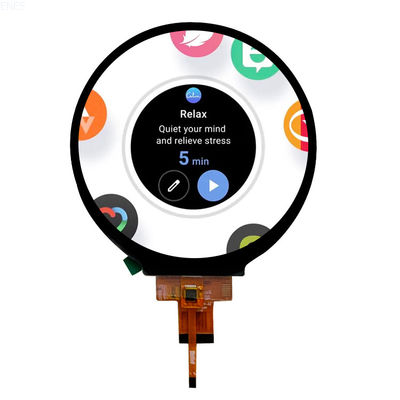

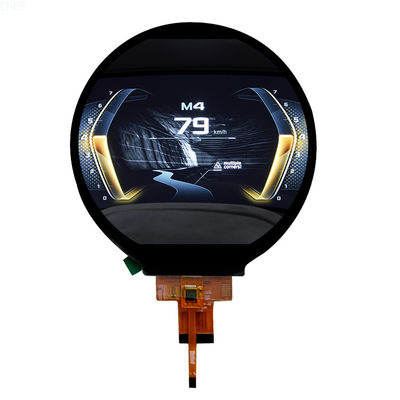

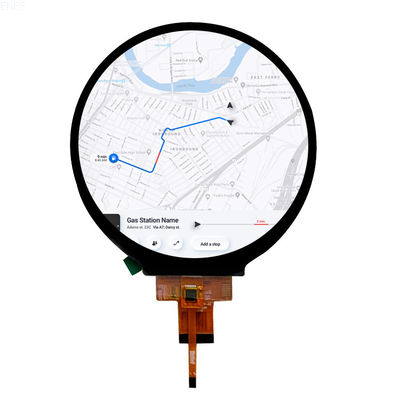

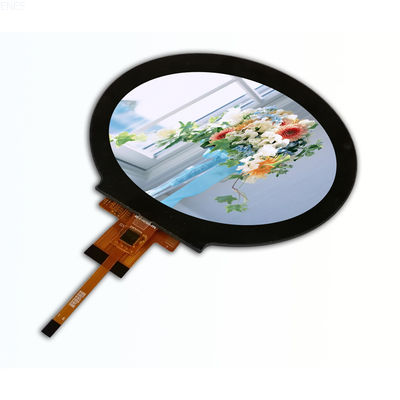

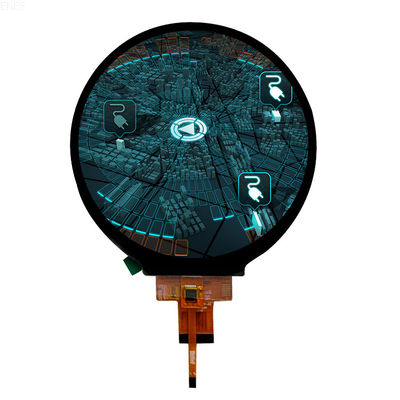

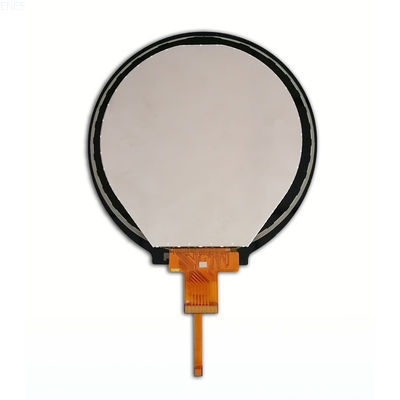

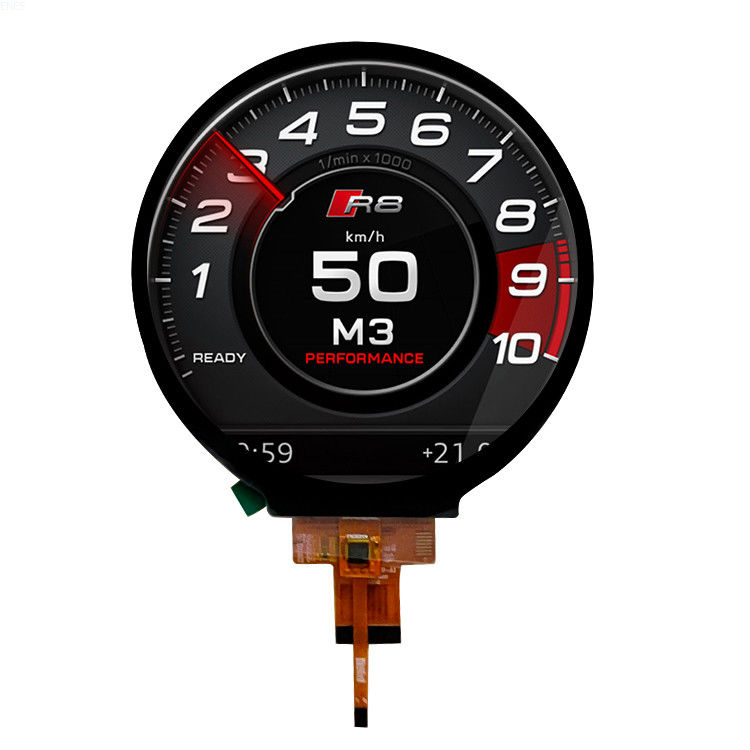

Large Image : 4'' IPS Round LCD Display 720 X 720 Resolution With SPI RGB Interface

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX040R-30MB-CT

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	4.0 Inch	Display Mode:	Normally Black
Resolution:	720(RGB)x720	Pixel Pitch:	0.047 (H) X 0.141 (V)
Pixel Arrangement:	RGB Stripe	Viewing Direction:	Free
Module Outline Dimension:	105.6 (H)109.87 (V)2.1(D)	LCD AA:	101.52 (H)* 101.52 (V)
Colors:	16.7M	Surface Lumiannce:	400/cd
Driver IC:	JD9365DA	Interface:	MIPI
Backlight:	White LED	Operating Temperature:	-20℃~ +70℃
Storage Temperature:	-25℃~ +75℃	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	IPS round lcd display , 4'' round lcd display , 720 X 720 circular lcd display

4'' IPS Round LCD Display 720 X 720 Resolution With SPI RGB Interface

Product Specifications

Attribute	Value
LCD size	4.0 inch
Display Mode	Normally Black
Resolution	720(RGB)x720
Pixel pitch	0.047 (H) x 0.141 (V)
Pixel Arrangement	RGB Stripe
Viewing direction	Free
Module outline dimension	105.6 (H)109.87 (V)2.1(D)
LCD AA	101.52 (H)* 101.52 (V)
Colors	16.7M
Surface Lumiannce	400/cd
Driver IC	JD9365DA
Interface	MIPI
Backlight	White LED
Operating Temperature	-20℃~ +70℃
Storage Temperature	-25℃~ +75℃
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

The TX040R-30MB-CT features a 4-inch round LCD screen with a 720×720 resolution and 16.7 million colors, delivering vibrant, lifelike images. Its IPS technology provides wide viewing angles of 85/85/85/85 degrees, while the transmissive, normally black display mode ensures excellent visibility.

This robust display operates reliably in temperatures ranging from -20℃ to +70℃, making it suitable for demanding environments. With support for both SPI and RGB interfaces, it offers flexible integration options for various applications.

Beyond motorcycle applications, this high-quality circular LCD is ideal for:

Home appliances (refrigerators, cooking equipment)
Industrial control systems
IoT devices
Medical equipment
Artificial intelligence devices

Frequently Asked Questions

What is the brand name of the IPS LCD monitor?

The brand of the IPS LCD monitor is ESEN.

What is the model number of the IPS LCD monitor?

The model number of the IPS LCD monitor is TX040R-30MB-CT.

Where is the IPS LCD monitor manufactured?

The IPS LCD monitor is manufactured in China, Shenzhen.

What certifications does the IPS LCD monitor have?

The IPS LCD monitor has CE and RoHS certifications.

What is the minimum order quantity for the IPS LCD monitor?

The minimum order quantity for the IPS LCD monitor is 200 units.

How are the IPS LCD monitors packaged?

All products are packaged securely using pallets + cartons for small items and foam trays + cartons for larger items. Custom packaging solutions are available upon request.

When is the delivery time for the IPS LCD monitor?

The delivery time is 10-15 working days.

How is the supply capacity of the IPS LCD monitor?

The supply capacity is 300,000 units per month.
