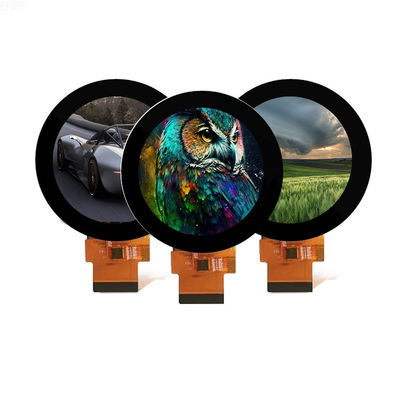

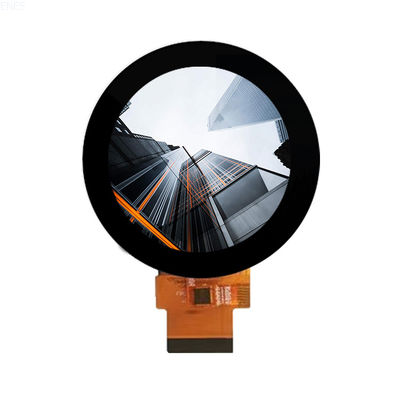

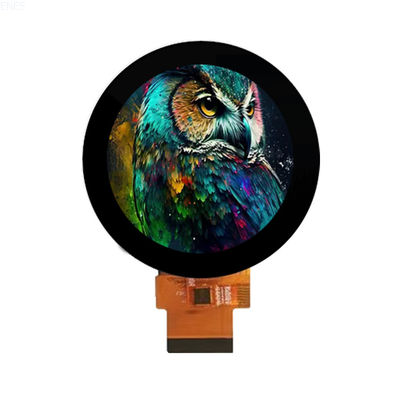

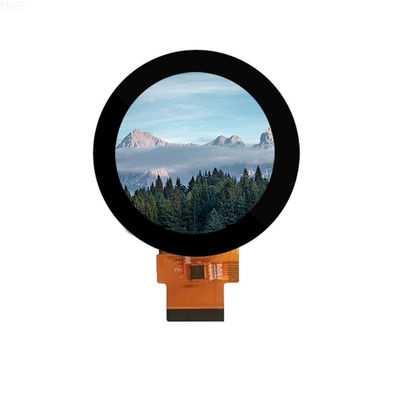

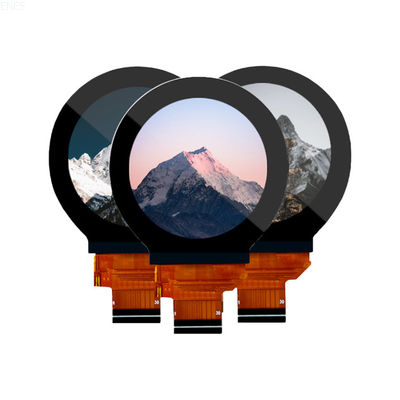

Round IPS TFT LCD Screen ST7701S 2.1'' 480x480 CTP Resolution SPI RGB Interface

Large Image : Round IPS TFT LCD Screen ST7701S 2.1'' 480x480 CTP Resolution SPI RGB Interface

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX021-40RB-CTP

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	2.1 Inch	Resolution:	480(RGB)×480
Technology Type:	A-Si TFT	Pixel Configuration:	R.G.B. Vertical Stripe
Display Mode:	Normally Black	Surface Treatment:	Glare
Viewing Direction:	ALL	OutlineDimensions (W X H X T) (mm):	56.1859.712.3
Active Area(mm):	53.28*53.28	With /Without Touch Screen:	CTP
Match Connector:	0.5pitch, 40pin	Backlight Type:	LED
Interface:	3SPI+18RGB	Number Of Color:	262K
Driver IC:	ST7701S	Brightness:	500 Cd/m2
Operation Temperature:	-20℃ To +70℃	Storage Temperature:	-30℃ To +80℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	ST7701S tft lcd screen , 2.1'' tft lcd screen , 480x480 resistive panel

Round IPS TFT LCD Screen ST7701S 2.1'' 480x480 CTP Resolution SPI RGB Interface

Technical Specifications

Attribute	Value
Size	2.1 inch
Resolution	480(RGB)×480
Technology Type	a-Si TFT
Pixel Configuration	R.G.B. Vertical Stripe
Display Mode	Normally Black
Surface Treatment	Glare
Viewing Direction	ALL
Outline Dimensions (W x H x T) (mm)	56.1859.712.3
Active Area (mm)	53.28*53.28
With/Without Touch screen	CTP
Match Connector	0.5pitch, 40pin
Backlight Type	LED
Interface	3SPI+18RGB
Number of color	262K
Driver IC	ST7701S
Brightness	500 cd/m2
Operation temperature	-20℃ to +70℃
Storage temperature	-30℃ to +80℃
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

TX021-40RB-CP is a high-performance 2.1-inch TFT LCD display with 480x480 pixel resolution and RGB interface. This circular display features an IPS panel with built-in ST7701S driver IC, offering superior image quality and viewing angles.

Key Features:
