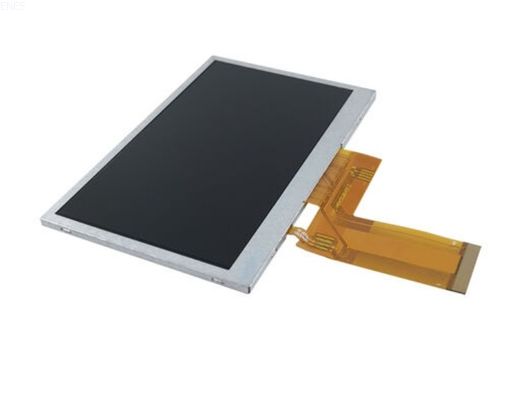

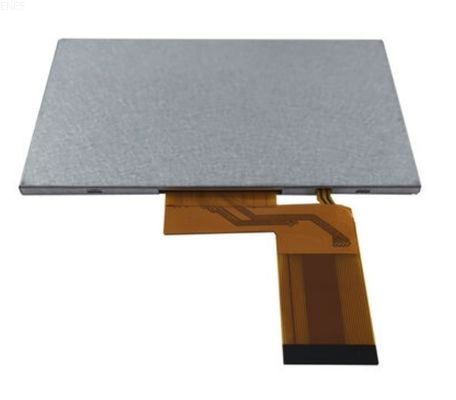

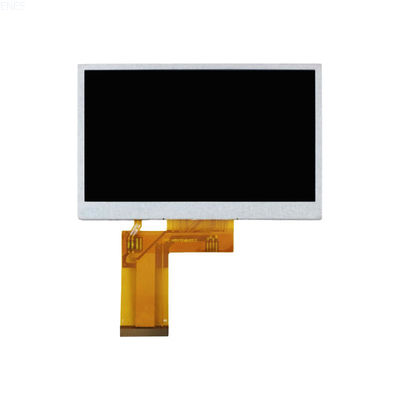

4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive

Large Image : 4.3 Inch 480x272 24bit Rgb Standard Tft Lcd Display St7282a IC 4.3 Inch Tft transmissive

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T043WQ16

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	4.3 Inch	Technology Type:	A-Si
LC:	ST7282A	Display Format:	480(RGB)x 272
Active Area(mm):	95.04 X 53.856	LCM (Wx H X D)(mm):	105.4267.072.9
Intrface:	24-bit RGB	Color Depth:	16.7M
Display Spec:	0.198 X 0.198	Display Mode:	Normally White
Viewing Direction:	12 0'clock	Gray Viewing Direction:	6 O'clock
With /Without TSP:	Without TSP	LED Numbers:	10 LEDS
Working Temperature:	-20°C~70°C	Storage Temperature:	-30°C~80°C

4.3 Inch 480x272 24bit RGB Standard TFT LCD Display with ST7282A IC

Product Specifications

Attribute	Value
LCD Size	4.3 inch
Technology type	a-Si
IC	ST7282A
Display Format	480(RGB)x 272
Active Area (mm)	95.04 x 53.856
LCM Dimensions (W×H×D)	105.42 × 67.07 × 2.9 mm
Interface	24-bit RGB
Color Depth	16.7M
Display Spec	0.198 × 0.198
Display Mode	Normally White
Viewing Direction	12 O'clock
Gray Viewing Direction	6 O'clock
Touch Screen Panel	Without TSP
LED Numbers	10 LEDs
Working Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Mechanical Drawing

Absolute Maximum Ratings

Item	Symbol	MIN	MAX	Unit
Supply Voltage	VDD	-0.3	4.5	V
Input Signal Voltage	Vin	-0.3	VDD+0.3	V
Logic Output Voltage	VOUT	-0.3	VDD+0.3	V
Operating Temperature	TOPR	-20	70	℃
Storage Temperature	TSTG	-30	80	℃

Electrical Characteristics

1. Operating Conditions

Parameter	Symbol	MIN	TYP	MAX	Unit	Remark
Power Voltage	Vcc	3.0	3.3	3.6	V
Digital Operation Current	Icc		5		mA
Gate On Power	VCOMH	9	15	16	V
Gate Off Power	VGH	-11	-10	-7	V
Vcom High Voltage	VcomH	3.26	-	5.8	V	Note1
Vcom Low Voltage	VcomL	-2	-	-0.2	V	Note1
