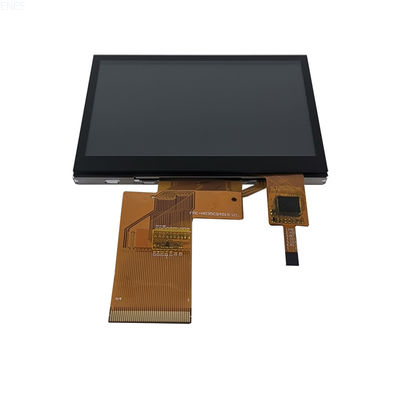

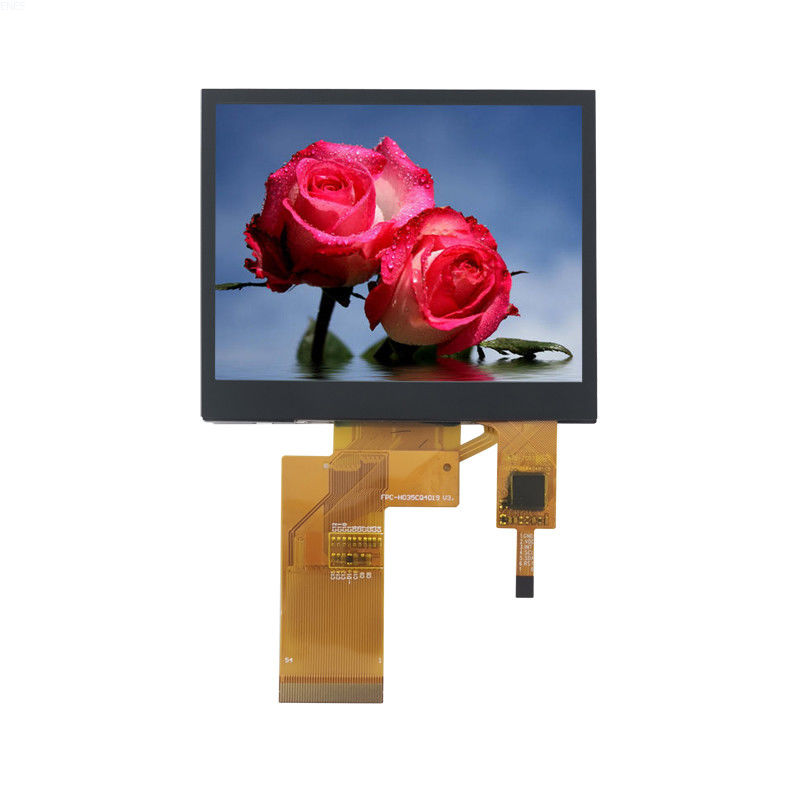

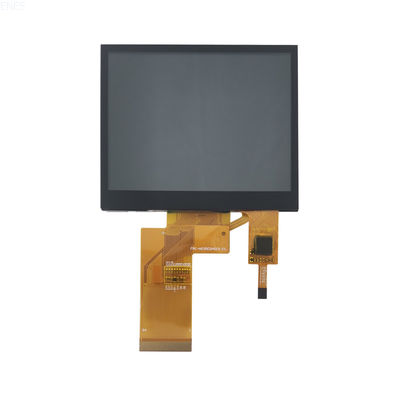

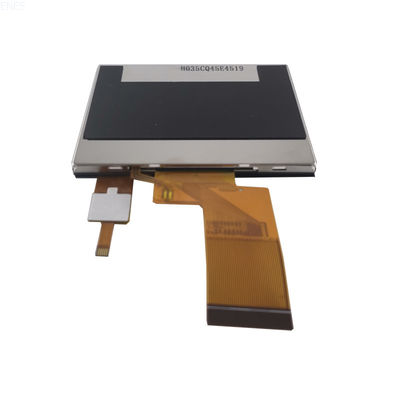

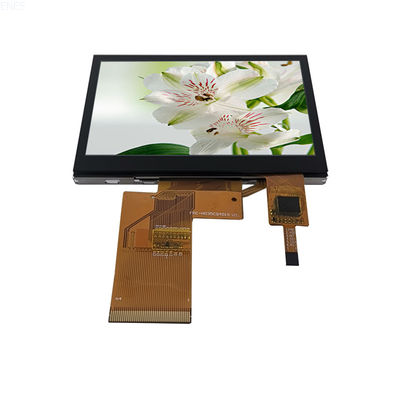

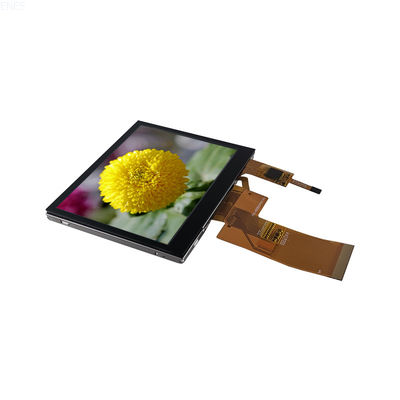

3.5 Inch Resistive Touch Panel 320x240 TFT Transmissive HX8238D

Large Image : 3.5 Inch Resistive Touch Panel 320x240 TFT Transmissive HX8238D

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T035CQ40E4519-CT

Payment & Shipping Terms:

Minimum Order Quantity:	1000/PCS
Price:	Please enquiry
Packaging Details:	All products are packaged in an appropriate and correct manner.
Delivery Time:	2-4 weeks
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	3.5inch	Resolution:	320xRGBx240
LCD IC:	HX8238D	Luminance:	450cd/m2
Operating Temp:	-20°C~+70°C	Storage Temp:	-30°c~+80°c
Surface Treatment:	Haze 20%	Viewing Direction:	12 0'clock
Gray Viewing Direction:	6 0'clock	LCM(WxHxD)(mm):	76.8463.843.15
Active Area(mm):	70.08 X52.56	Display Type:	3.5 Inch Tft Transmissive
Backlight:	6 Chip White Led,in Parallel
Highlight:	3.5 Inch Resistive Touch Panel , 320x240 Resistive Touch Panel , HX8238D resistive touch screen

3.5 Inch Resistive Touch Panel 320x240 TFT Transmissive HX8238D

Product Specifications

Attribute	Value
LCD Size	3.5inch
Resolution	320xRGBx240
LCD IC	HX8238D
Luminance	450cd/m²
Operating temp	-20°C~+70°C
Storage temp	-30°C~+80°C
Surface Treatment	Haze 20%
Viewing Direction	12 o'clock
Gray Viewing Direction	6 o'clock
LCM Dimensions (W×H×D)	76.84 × 63.84 × 3.15 mm
Active Area	70.08 × 52.56 mm
Display type	3.5 Inch TFT transmissive
Backlight	6 chip white LED, in parallel

Product Features

IPS or 12 o'clock display screen orientation
Customization options available: Logo, Touch Button, Silk-Printing, Mirror Cover Lens, Shape/Hole
Special treatments: Anti-Glare, Anti-Finger, Anti-Reflective, Waterproof, Gloves Touch Available
Complete solutions: Supply TFT, Touch Panel, or touch display module (TFT+CTP)

Our Advantages

Factory direct pricing for cost efficiency
Consistent high-quality manufacturing standards
Fast shipping within 5 business days
No minimum order quantity - orders from 1 piece accepted
Secure online payment options
7-day refund policy
24/7 after-sales support

Packing Method

Storage & Handling Guidelines

Storage Precautions:

Avoid exposure to direct sunlight or fluorescent lamps
Store within recommended temperature range (0°C~40℃) with relative humidity ≤80% for long-term storage
Keep in environment free from acid, alkali, and harmful gases

Transportation Precautions:

Prevent dropping or violent shocks during transport
Protect from excessive pressure, water, moisture, and direct sunlight
