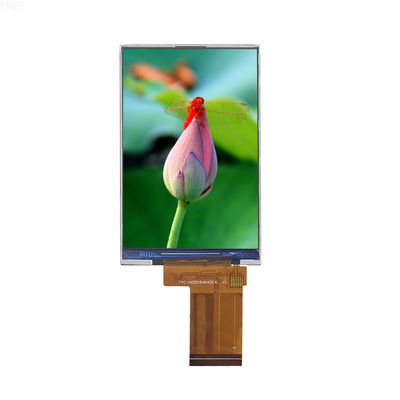

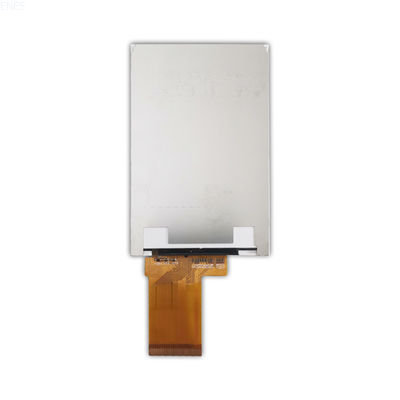

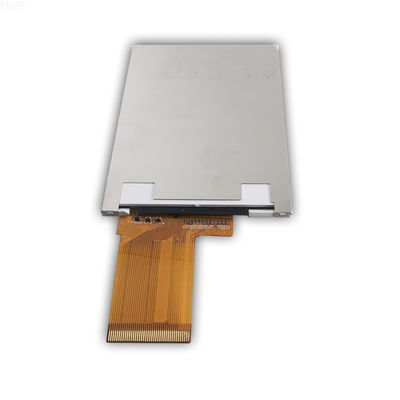

320 X 480 3.5 Inch TFT Display 262K Color Normally White Transmissive Standard

Large Image : 320 X 480 3.5 Inch TFT Display 262K Color Normally White Transmissive Standard

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T035SHV40E3014

Payment & Shipping Terms:

Minimum Order Quantity:	1000/PCS
Price:	Please enquiry
Packaging Details:	All products are packaged in an appropriate and correct manner.
Delivery Time:	2-4 weeks
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	3.5inch	Driver IC:	IL9488
Resolution:	320(horizontal)*480(Vertical)	Operating Temp:	-20°C~+70°C
Storage Temp:	-30°c~+80°c	Backlight:	WHITE(3.2V120mA)
Operating Voltage::	VDD=2.8V	Interface:	RGB Interface
Cnnect Type:	Connector	Color Depth:	262K
Technology Type:	A-Si	Display Spec. Pixel Pitch (mm):	0.153x 0.153
Piel Configuration:	R.G.B. Vertical Stripe	Display Mode:	Normally White
Surface Treatment:	HC	Viewing Direction:	6 O'cock
LCM(WxHxD)(mm):	54.4884.712.30	Active Area(mm):	48.96 X 73.44
With /without TSP:	Without TSP	LED Numbers:	6 LEDS
Highlight:	320 X 480 3.5 inch tft display , 262K 3.5 inch tft display , IL9488 3.5 inch lcd screen

320 X 480 3.5 Inch TFT Display 262K Color Normally White Transmissive Standard

Product Specifications

Attribute	Value
LCD Size	3.5inch
Driver IC	IL9488
Resolution	320(horizontal)*480(Vertical)
Operating temp	-20°C~+70°C
Storage temp	-30°C~+80°C
Backlight	WHITE(3.2V120mA)
Operating Voltage	VDD=2.8V
Interface	RGB interface
Connect type	connector
Color Depth	262K
Technology type	a-Si
Display Spec. Pixel pitch (mm)	0.153x 0.153
Pixel Configuration	R.G.B. Vertical Stripe
Display Mode	Normally White
Surface Treatment	HC
Viewing Direction	6 O'clock

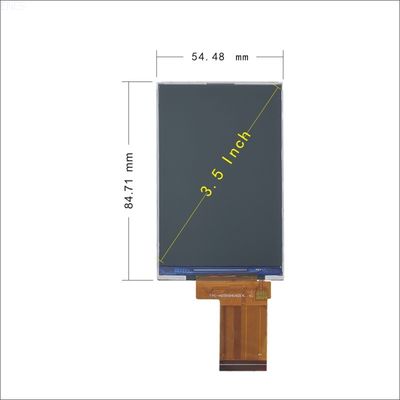

LCM(WxHxD)(mm)	54.4884.712.30
Active Area(mm)	48.96 x 73.44
With/without TSP	Without TSP
LED Numbers	6 LEDS

Product Overview

3.5inch 320 X 480 262K Color Normally White Transmissive Standard TFT LCD Display

Key Features

High transmittance glass substrate provides clear, bright, and colorful display with low-power consumption

Ultra-thin design with compact size and light weight for easy integration

Energy efficient operation with minimal heat generation

Low radiation output for healthier viewing experience

Flicker-free display reduces eye strain during prolonged use

Uniform brightness maintains high visibility even in outdoor lighting

This industrial-grade touch screen features a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. Ideal for applications requiring a 3.5 inch display with 320x480 resolution.

Frequently Asked Questions

Q: Can this product be customized for specific requirements?

A: Yes, we offer customization options including FPC, touch screen, backlight, and bezel configurations. Custom solutions may require additional tooling costs.

Q: What payment methods do you accept?

A: We accept PayPal and credit cards for samples. For mass orders, we prefer T/T transfers with 30% advance payment for large quantities.

Q: What is your delivery timeline?

A: Sample orders ship within 3 days if in stock. Small batches take 15-20 working days, while large orders require 20-30 working days for production. We provide exact timelines before order confirmation.

Q: How is the product packaged for shipping?

A: All units are packed in anti-static bags within foam-protected boxes to ensure safe transportation.
