ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320

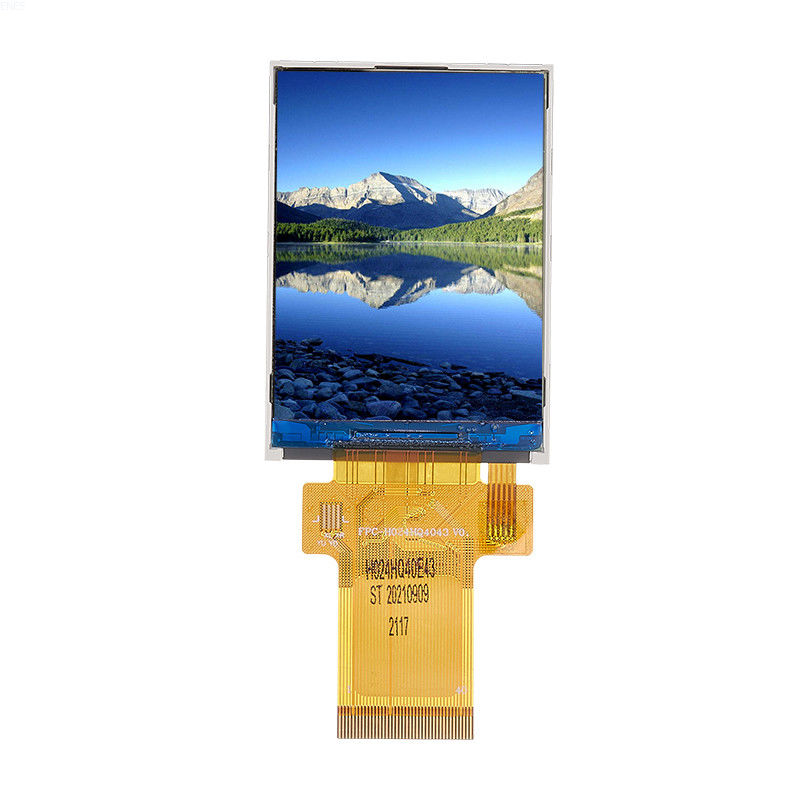

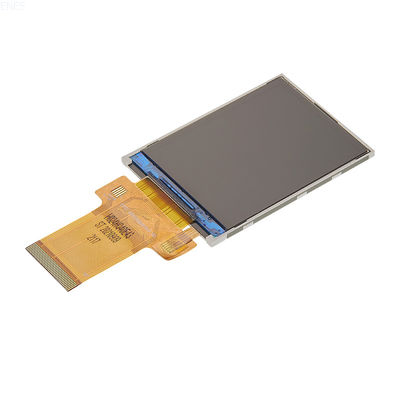

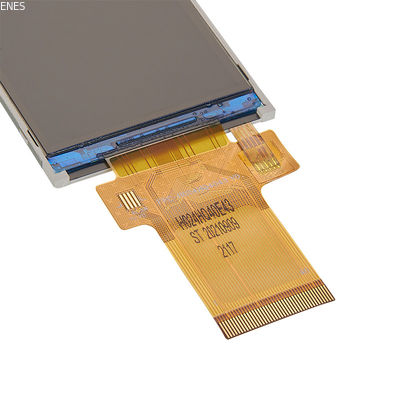

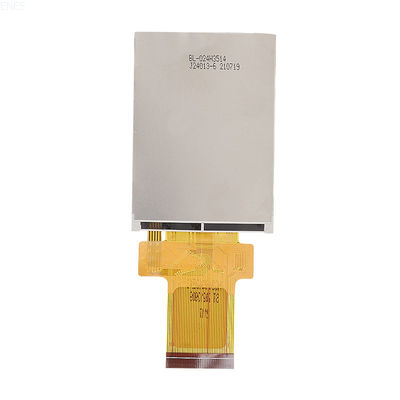

Large Image : ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T024HQ40E2543

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	Meet product specifications
Delivery Time:	3-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Drive:	ST7789V	Dimensional Outline:	42.72(W)60.26(H)2.20+/-0.1 (T) (FPC Not Include)
Resolution:	240RGB*320mm	LCD Active Area:	36.72(W)*48.96(H) Mm
Pixel Size:	0.180(W)*0.180(H)	Display Mode:	Transmissive 、a-TFT
Display Format:	Graphic 240RGB*320 Dot-matrix	Input Data:	3-wire Serial Port / 4-wire Serial Port/8bits /16bits Parallel Interface
Viewing Direction:	12 O’clock	Backlight:	4 Chip White Led,in Parallel
Interface:	MCU Interface，FPC Welding	Operatingtemp:	-20°C~+70°C
Storagetemp:	-30°c~+80°c
Highlight:	ST7789V 2.4 inch tft lcd display , 240RGB X 320 2.4 inch tft lcd display , ST7789V 2.4 inch tft lcd

ST7789V 2.4 Inch TFT LCD Display Module TN Panel 240RGB X 320

Product Specifications

Attribute	Value
Drive	ST7789V
Dimensional outline	42.72(W)60.26(H)2.20+/-0.1 (FPC not included)
Resolution	240RGB*320mm
LCD Active area	36.72(W)*48.96(H) mm
Pixel size	0.180(W)*0.180(H)
Display Mode	Transmissive, a-TFT
Display Format	Graphic 240RGB*320 Dot-matrix
Input Data	3-wire/4-wire serial port or 8bits/16bits parallel interface
Viewing Direction	12 o'clock
Backlight	4 Chip White LED, in Parallel
Interface	MCU Interface, FPC welding
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Product Overview

ESEN's 2.4-inch IPS TFT LCD module features a resolution of 240x320, delivering clear images and excellent color performance. With its compact size and stable performance, this module is ideal for small-sized intelligent devices and portable instruments, providing accurate and intuitive display information.

T024HQ40E2543 Technical Details: This 240RGB*320 dot matrix TFT LCD module contains a panel composed of 240 sources and 320 gates, designed for easy integration with micro-controllers.

Power Supply Configuration

IOVCC and VCC are connected together, requiring 2.8V-3.3V power supply. The backlit LED can be powered separately (3.0-3.4V) or share voltage with VCC (positive connected to VCC, negative connected to ground).

Mechanical Dimensions
