2.0 Inch 240x320 Resolution ST7789V SPI Interface TFT LCD Screen lcd display module

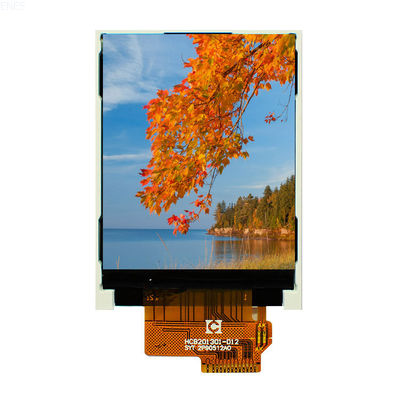

Large Image : 2.0 Inch 240x320 Resolution ST7789V SPI Interface TFT LCD Screen lcd display module

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T20U1302

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	2.0TFT	Dimension:	34.70（W）* 47.95（H） * 2.2(T)
Active Area:	30.60* 40.80	Number OfDots:	240 * RGB * 320
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	ILI9340X	Interface Type:	SPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	230min /cd~250typ/Cd
With /without TsP:	Without TP/with TP	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

2.0 Inch 240x320 Resolution ST7789V SPI Interface TFT LCD Display Module

Product Specifications

Attribute	Value
Size	2.0TFT
Dimension (mm)	34.70(W) × 47.95(H) × 2.2(T)
Active Area (mm)	30.60 × 40.80
Number of Dots	240 × RGB × 320
LCD Type	a-Si TFT
Viewing Direction	ALL
Driver IC	ILI9340X
Interface Type	SPI
Operating Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Backlight Type	4 LEDs
Luminance	230min/cd ~ 250typ/cd
Touch Panel Options	Without TP/With TP
Custom Services	FPC, CTP, RTP, pin definition, packing, HD-MI board

Product Overview

This compact 2-inch TFT LCD display module delivers high-quality visual performance with its 240×320 resolution, ensuring clear information display. Featuring the ILI9340X driver chip with SPI interface for stable and efficient data transmission, this IPS technology TFT screen offers wide viewing angles and excellent color reproduction.

Pin Assignments

Industry Applications

Automotive Products Consumer Electronics Smart Wearable Devices POS Systems PDA Devices Medical Equipment IoT Products Smart Home Applications White Goods Industrial Equipment Communication Devices Fiscal Products Meters Measuring Devices

Available Product Options

Our extensive product range includes TFT LCD displays, Monochrome LCD displays, Touch Screens, capacitive touch panels, resistive touch panels, customized LCD panels, COB, and COG display solutions.
