2.0 Inch 176x220 Resolution ST7775R MCU Interface TFT LCD Screen lcd display module

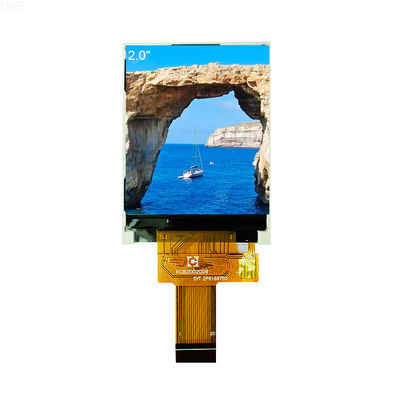

Large Image : 2.0 Inch 176x220 Resolution ST7775R MCU Interface TFT LCD Screen lcd display module

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T200B2008

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	2.0TFT	Dimension:	34.70（W）* 47.95（H） * 2.2(T)
Active Area:	31.68* 39.60 Mm	Number OfDots:	176 * RGB * 220
LCD Type:	A-Si TFT	Viewing Direction:	12 O'clock
Driver IC:	ST7775R	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	3 LEDs	Luminance:	250min /cd~300typ/Cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

2.0 inch 176x220 Resolution ST7775R MCU Interface TFT LCD Screen lcd display module

It has a resolution of 176×220 which is sufficient for displaying the required information. Data until October 2024 Screen is stable with ST7775R driver chip. 176×220 resolution can present the crucial information of the vehicle clearly. It allows rich color performance and rapid response. It can also provide reliable information for drivers in terms of speed and fuel consumption.

2.0 Inch 176x220 Resolution ST7775R MCU Interface TFT LCD Screen lcd display module 0

Pin Assignments

2.0 Inch 176x220 Resolution ST7775R MCU Interface TFT LCD Screen lcd display module 1

Contrast Ratio (CR)

2.0 Inch 176x220 Resolution ST7775R MCU Interface TFT LCD Screen lcd display module 2

Attention

 - Since LCM has been assembled and adjusted with a high degree of precision, avoid applying excessive shocks to the module or making any alterations or modifications to it.

 - Do not alter, modify or change the shape of the tab on the metal frame.

 - Do not make extra holes on the printed circuit board, modify its shape or change the positions of components to be attached.  - Do not damage or modify the pattern writing on the printed circuit board.

- Absolutely do not modify the zebra rubber strip (conductive rubber) or heat seal connector.

- Except for soldering the interface, do not make any alterations or modifications with a soldering iron.

- Do not drop, bend or twist the LCM.
