MCU Interface ILI9342C Colour LCD Display Module 2.3'' 320x240 Resolution

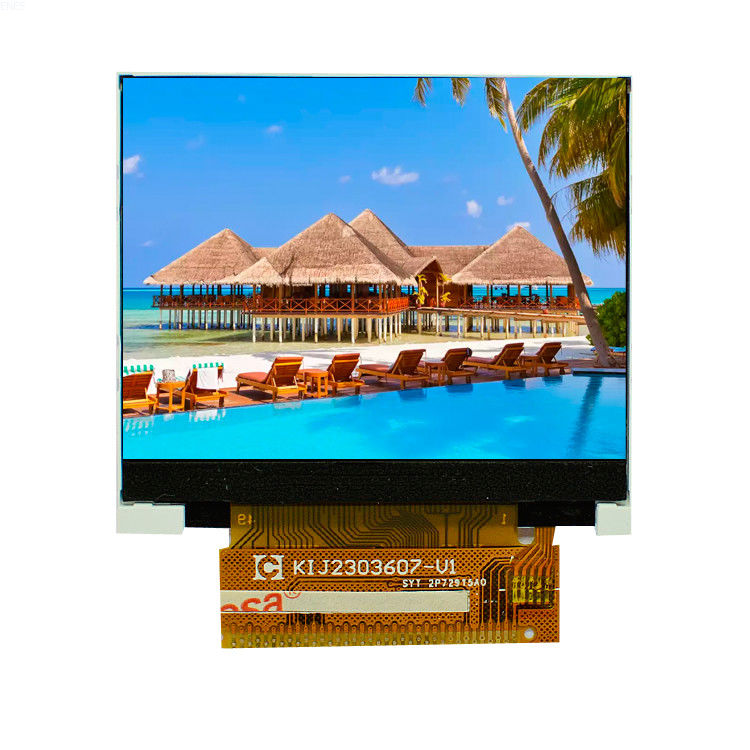

Large Image : MCU Interface ILI9342C Colour LCD Display Module 2.3'' 320x240 Resolution

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T230J3607

Payment & Shipping Terms:

Minimum Order Quantity:	1000 PCS
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	2.3 TFT	Dimension:	50.80（W）* 45.80（H） * 2.35(T)
Active Area:	46.75* 35.06 Mm	Number OfDots:	320 * RGB * 240
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ILI9342C	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	230cd~250cd
POL:	UP 0.22/below 0.22	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	ILI9342C colour lcd display module , 2.3in colour lcd display module , 320x240 color tft screen

MCU Interface ILI9342C Colour LCD Display Module 2.3'' 320x240 Resolution

Product Specifications

Attribute	Value
Size	2.3 TFT
Dimension	50.80(W) × 45.80(H) × 2.35(T) mm
Active Area	46.75 × 35.06 mm
Number Of Dots	320 × RGB × 240
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ILI9342C
Interface Type	MCU
Operating Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃
Backlight Type	4 LEDs
Luminance	230cd to 250cd
POL	UP 0.22/below 0.22
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

The 2.3-inch MCU Interface ILI9342C Colour LCD Display Module features a 320×240 resolution TFT screen designed for industrial and commercial applications. With a brightness of 250 nits and 16-bit microcontroller interface, this display module delivers reliable performance in demanding environments.

Key Features

High-quality a-Si TFT LCD with 320×240 resolution
ILI9342C driver chip with on-chip storage and power system
Wide operating temperature range (-20℃ to 70℃)
4 LED backlight with 230-250cd brightness
Customization options available for interface and FPC
Industrial-grade durability for commercial applications

Frequently Asked Questions

Can we customize the product? What cost will be included?

The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?

Please contact our sales and we will provide any files if you need.

Do you have products in stock? How long will it take for delivery?

Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.

How to control the quality of products?

Our company has a professional quality team, and all products are 100% inspected prior to ship.

How long can you guarantee for the quality?

Usually we will guarantee for 12 months. However, when never you got a problem and need help. Just tell our sales and we will try our best to help you. You become our customer one day, you are our customer forever.
