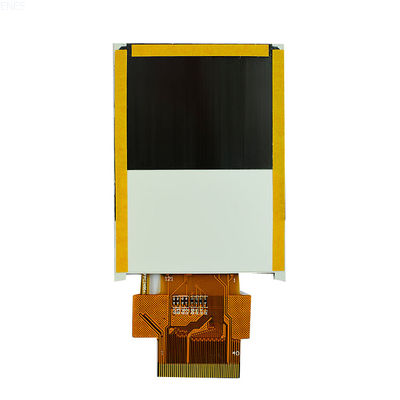

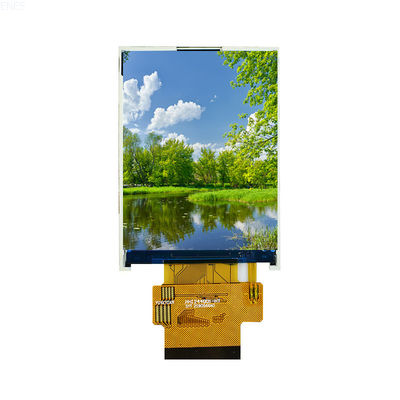

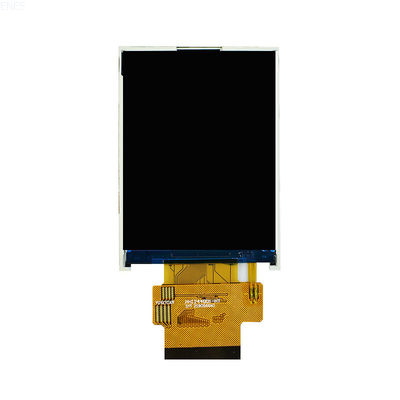

2.4 Inch 240x320 IPS RGB ALL ST7789V TFT LCD Display

2.4 Inch 240x320 IPS RGB ALL ST7789V TFT LCD Display
2.4 Inch 240x320 IPS RGB ALL ST7789V TFT LCD Display
video play

Large Image :  2.4 Inch 240x320 IPS RGB ALL ST7789V TFT LCD Display

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T24I4001
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 400K/mth
Contact Now
Detailed Product Description
Size: 2.4 TFT Dimension: 42.72（W）* 60.26（H） * 2.35(T)
Active Area: 36.72* 48.96 Mm Number OfDots: 240 * RGB * 320
LCD Type: A-Si TFT Viewing Direction: ALL
Driver IC: ST7789V Interface Type: RGB
Operating Temperature: -20℃~ 70℃ Storage Temperature: -30℃~ 80℃
Backlight Type: 4 LEDs Luminance: 280cd~300cd
POL: UP 0.17/below 0.17 Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

2.4 Inch 240x320 IPS RGB ALL ST7789V TFT LCD Display
Product Specifications
Attribute Value
Size 2.4 TFT
Dimension 42.72(W) × 60.26(H) × 2.35(T) mm
Active Area 36.72 × 48.96 mm
Number Of Dots 240 × RGB × 320
LCD Type a-Si TFT
Viewing Direction ALL
Driver IC ST7789V
Interface Type RGB
Operating Temperature -20℃ ~ 70℃
Storage Temperature -30℃ ~ 80℃
Backlight Type 4 LEDs
Luminance 280cd ~ 300cd
POL UP 0.17/below 0.17
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
2.4 Inch 240x320 IPS RGB ALL ST7789V TFT LCD Display 0
Product Overview

The 2.4-inch 240×320 IPS RGB ALL ST7789V TFT LCD Display offers high-quality visual performance with wide viewing angles and excellent color reproduction. This display module features an a-Si TFT panel with RGB interface and ST7789V driver IC.

If you don't find a suitable product on our platform, please contact us as we offer many more products than currently displayed.
Our Advantages
  • One-stop solution: Comprehensive services from panel cutting to complete module assembly
  • LCD panel cutting and etching services with our own factory
  • Direct distribution of LCD panels and driver chips ensuring supply reliability
  • ISO9001 and CE certified LCD module assembly
  • Custom capacitive touch panel solutions with 100% OEM capability
  • Integrated controller board solutions for various applications
  • Custom plastic frame enclosure options available
Packaging & Shipping
  • All products securely packaged for protection
  • Small sizes: tray + carton packaging
  • Larger sizes: foam slot + carton packaging
  • Custom packaging solutions available upon request
Frequently Asked Questions
Q: Why choose ESEN Co., Ltd.?

A: We provide high-quality OEM & ODM services with 24-hour response time. Our products meet international quality standards with strict production testing for industrial, medical, consumer, and financial applications.

Q: Can I order a sample for quality testing?

A: Yes, we recommend testing samples before bulk orders. Samples are available for evaluation.

Q: How can I get product catalog and pricing?

A: Our full product range is available on our platform. Please email your specific requirements for detailed information.

Q: What are the benefits for large orders?

A: Please send your detailed requirements (product numbers, quantities, specifications) for customized bulk pricing.

Q: What payment methods do you accept?

A: Samples/small orders: 100% advance payment. Bulk orders: 30% deposit, 70% balance. We accept TT, LC, bank transfer, and PayPal.

Q: What is your shipping timeline?

A: Samples ship in 1-3 days. Custom orders typically ship in 7-15 days after confirmation. We notify promptly if inventory affects timelines.

Q: What does your warranty cover?

A: One-year limited warranty against manufacturing defects (materials/workmanship). Normal wear and tear or damage not included.
