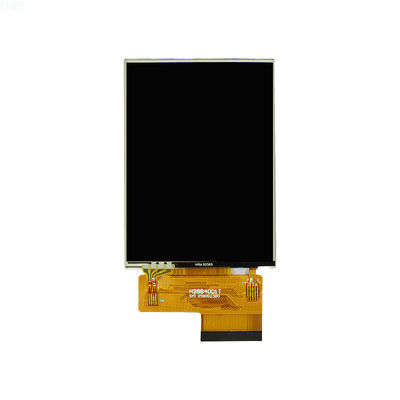

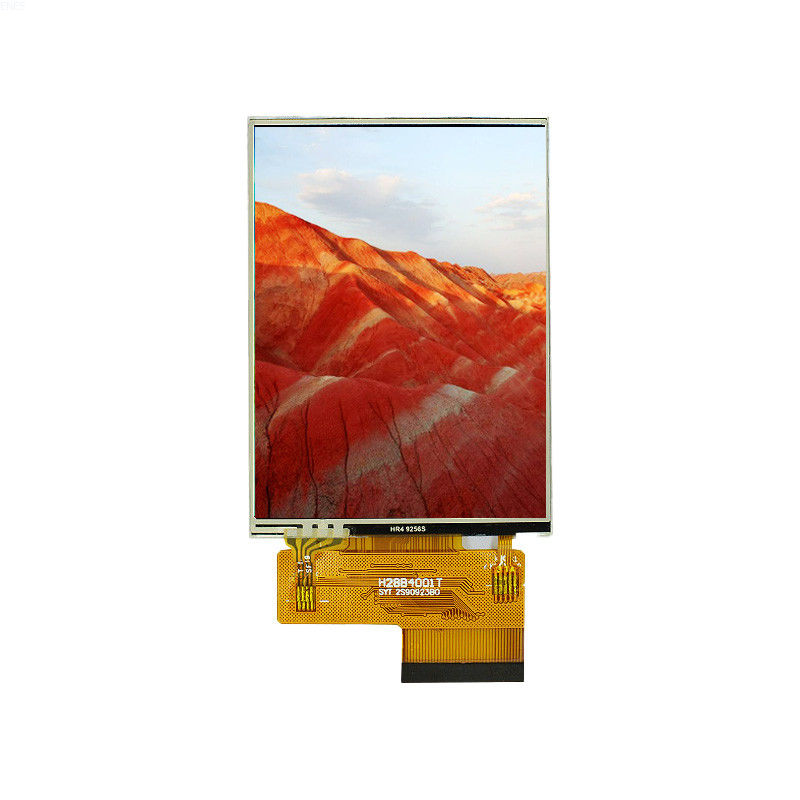

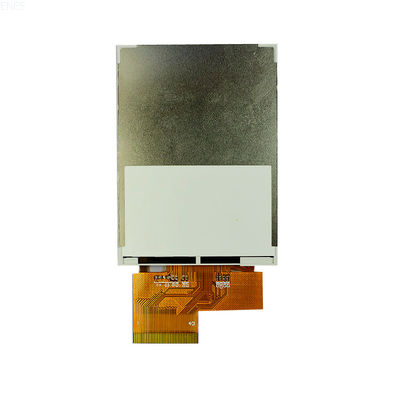

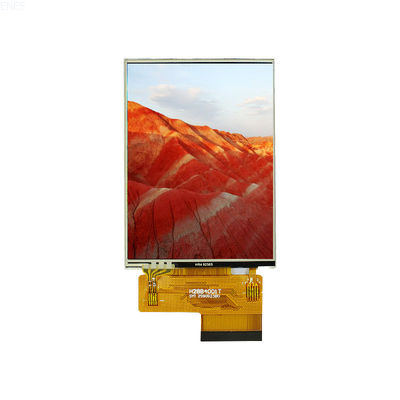

2.8 Inch RGB 240X320 Transmissive TFT LCD Module Panel Ili9341v Driver Ic

Large Image : 2.8 Inch RGB 240X320 Transmissive TFT LCD Module Panel Ili9341v Driver Ic

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T28B4001

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	2.8TFT	Dimension:	50.00（W）* 69.20（H） * 2.30(T)
Active Area:	43.20* 57.60 Mm	Number OfDots:	240 * RGB * 320
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ILI9341V	Interface Type:	RGB
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	230cd~250cd
POL:	UP 0.17/below 0.17	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

2.8 Inch RGB 240X320 Transmissive TFT LCD Module Panel with ILI9341V Driver IC

Product Specifications

Attribute	Value
Size	2.8TFT
Dimension	50.00(W) × 69.20(H) × 2.30(T) mm
Active Area	43.20 × 57.60 mm
Number of Dots	240 × RGB × 320
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ILI9341V
Interface Type	RGB
Operating Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Backlight Type	4 LEDs
Luminance	230cd ~ 250cd
POL	UP 0.17/below 0.17
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

The 2.8-inch TN TFT LCD features a 240×320 resolution for detailed image rendering. Utilizing SPI and RGB interfaces ensures stable data transmission, making it ideal for various electronic devices. The ILI9341V driver chip enhances performance with higher refresh rates, lower latency, and smoother motion picture display.

Key Features

IPS or 12 o'clock display screen
Customization options: Logo, Touch Button, Silk-Printing, Mirror Cover Lens, Shape/Hole
Special treatments available: Anti-Glare, Anti-Finger, Anti-Reflective, Waterproof, Gloves Touch
Available as TFT panel, Touch Panel, or complete touch display module (TFT+CTP)

Pin Assignments

Mechanical Drawing

Typical Operation Conditions

Backlight Circuit Characteristics

Frequently Asked Questions

What is the MOQ?

No MOQ for samples; different MOQ requirements apply for bulk orders.

What about the delivery time?

Standard products: 1 week for samples, 4 weeks for bulk orders. Customized products: 3-4 weeks for samples, 4 weeks for mass production after sample confirmation.

Do you offer customization service?

Yes, we welcome OEM & ODM projects. Please send us your requirements for assessment.

Is there any warranty for your products?

Yes, we offer a 12-month warranty for non-artificial defects.
