240 X 400 RGB 18 Bit TP Transmissive LCD TFT 2.8 ILI9327 CHSC6440 Driver LC

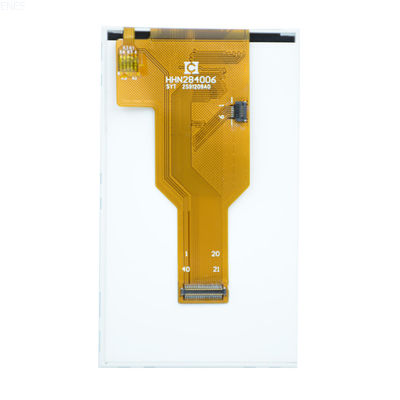

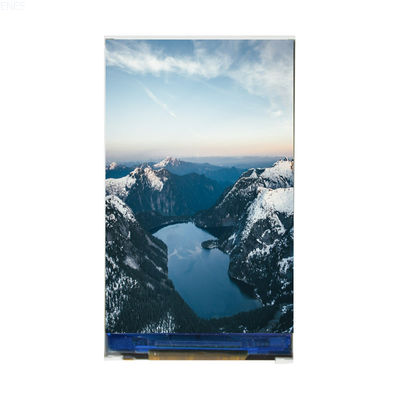

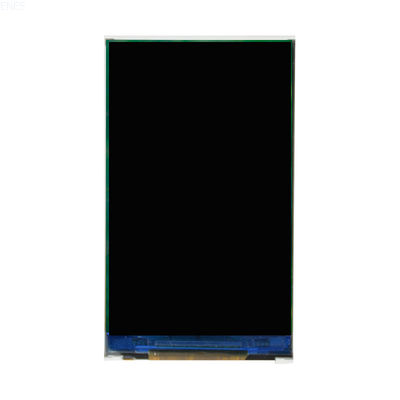

Large Image : 240 X 400 RGB 18 Bit TP Transmissive LCD TFT 2.8 ILI9327 CHSC6440 Driver LC

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T28N4009 -TP

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	2.8TFT	Dimension:	43.22（W）* 73.20（H） * 3.05(T)
Active Area:	36.72* 61.20mm	Number OfDots:	240 * RGB * 400
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ILI9327	TP IC:	CHSC6440
Interface Type:	RGB 18bit	Structure Type:	G+F
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	230cd~250cd
VDD Voltage:	2.8V	IC Voltage:	1.8V.
POL:	UP 0.17/below 0.17	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	240 X 400 lcd tft 2.8 , 18 Bit lcd tft 2.8 , CHSC6440 2.8 tft lcd

240 X 400 RGB 18 Bit TP Transmissive LCD TFT 2.8 ILI9327 CHSC6440 Driver LC

Product Specifications

Attribute	Value
Size	2.8TFT
Dimension	43.22(W) × 73.20(H) × 3.05(T) mm
Active Area	36.72 × 61.20mm
Number Of Dots	240 × RGB × 400
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ILI9327
TP IC	CHSC6440
Interface Type	RGB 18bit
Structure Type	G+F
Operating Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Backlight Type	4 LEDs
Luminance	230cd ~ 250cd
VDD Voltage	2.8V
IC Voltage	1.8V
POL	UP 0.17/below 0.17
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

2.8inch 240×400 RGB 18bit TP Transmissive TFT LCD Module Panel with ILI9327 CHSC6440 Driver IC

This medical-grade LCD display features a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. With a 2.8-inch size and 240 × 400 resolution, it delivers sharp image quality with a measured luminance of 250 nits under normal operating conditions.

Frequently Asked Questions

I am unable to locate the size, interface requirements, and FPC that meet my needs. Is it possible for TP to customize these components?

Absolutely. Please provide us with detailed specifications of your requirements. For TFT LCD modules, customization may incur varying mold costs depending on the size, including components such as FPC, touch screens, backlights, and frames. We kindly request you to take this into consideration.

Is it possible to make payments via credit card or PayPal?

For sample orders, we support payment through PayPal and credit card. For bulk orders, we require wire transfer payments. For large-scale orders, we accept advance payments (typically 30% prior to production).

Could you please clarify your delivery methods?

We offer international shipping via DHL, UPS, FedEx, TNT, or any other courier service.
