240 X 320 TFT LCD Display Module 2.8 Inch SPI Interface White LED Backlight

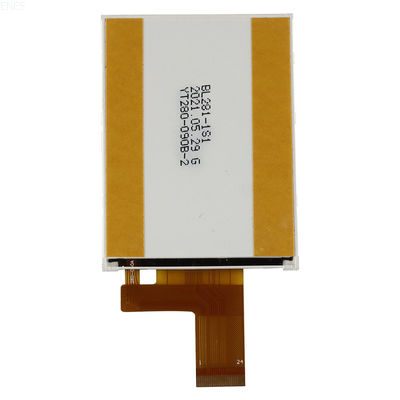

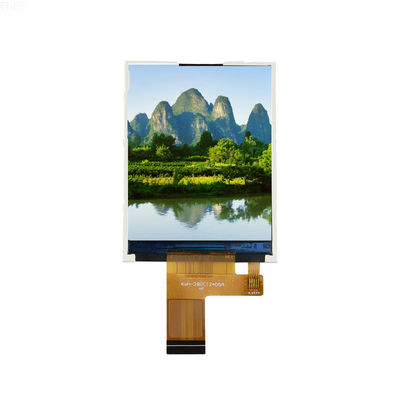

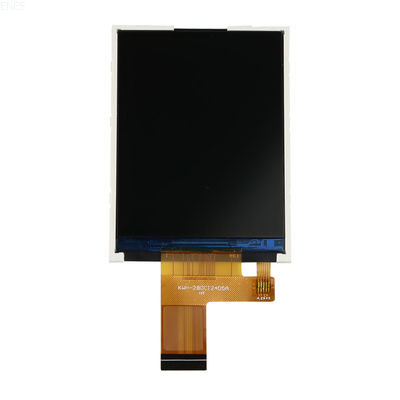

Large Image : 240 X 320 TFT LCD Display Module 2.8 Inch SPI Interface White LED Backlight

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-280CI2405

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	2.8TFT	Dimension:	50.00（W）* 69.20（H） * 2.30(T)
Active Area:	43.20* 57.60 Mm	Number OfDots:	240 * RGB * 320
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ST7789V	Interface Type:	SPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	230cd~250cd
POL:	UP 0.17/below 0.17	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	240 X 320 TFT LCD Display , 2.8in TFT LCD Display , SPI Interface 2.8 tft display

240 X 320 TFT LCD Display Module 2.8 Inch SPI Interface White LED Backlight

Product Specifications

Attribute	Value
Size	2.8TFT
Dimension	50.00（W）* 69.20（H） * 2.30(T)
Active Area	43.20* 57.60 mm
Number OfDots	240 * RGB * 320
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ST7789V
Interface Type	SPI
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	4 LEDs
Luminance	230cd~250cd
POL	UP 0.17/below 0.17
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

2.8 inch 240x320 TFT LCD Display Module SPI Interface White LED Backlight.

Pin Assignments

LCM Viewing Angle

Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface.

One-Stop Solution

LCD panels and driver ICs: We are direct distributors and can guarantee supply.
LCD modules: We have an LCD module assembly factory and have passed ISO9001 and ISO14001 certifications.
LCD modules + capacitive touch screens: We can customize different capacitive touch screens according to customer requirements, 100% OEM.
LCD modules + control boards: We have our own controller board company and have many engineers, providing different types of circuit board solutions.
Complete solutions: We have the ability to provide complete solutions and can also customize frames to accommodate our displays.

Product Applications

Frequently Asked Questions

Question: I am unable to locate the size, interface requirements, and FPC that meet my needs. Is it possible for TP to customize these components?

Answer: Absolutely. Please provide us with detailed specifications of your requirements. However, for TFT LCD modules, customization may incur varying mold costs depending on the size, including components such as FPC, touch screens, backlights, frames, etc. We kindly request you to take this into consideration.

Question: Is it possible to make payments via credit card or PayPal?

Answer: For sample orders, we support payment through PayPal and credit card. For bulk orders, we require wire transfer payments. Additionally, for large-scale orders, we accept advance payments (typically 30% prior to production).

Question: Could you please clarify your delivery methods?

Answer: We offer international shipping via DHL, UPS, FedEx, TNT, or any other courier service.
