2.8 Inch 300 Nits TFT LCD Display High Brightness 240x320 MCU Interface IPS

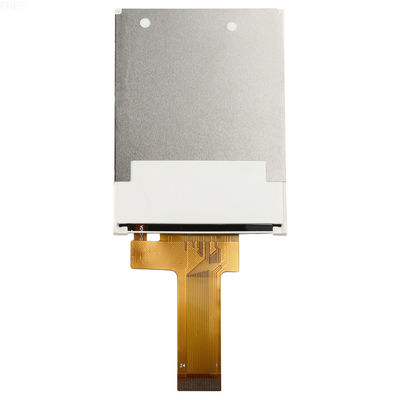

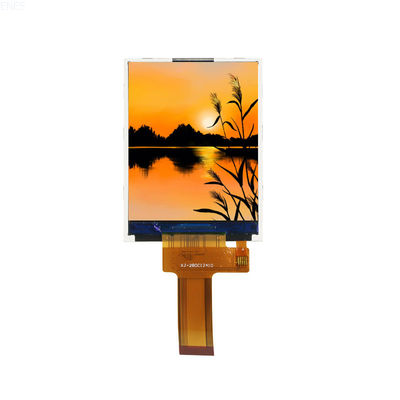

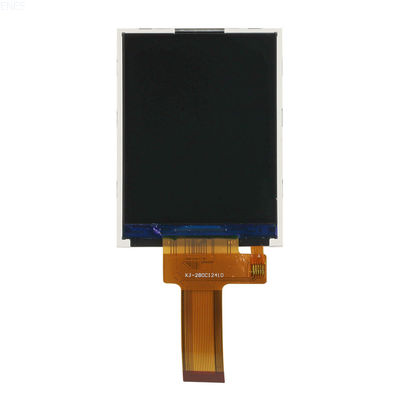

Large Image : 2.8 Inch 300 Nits TFT LCD Display High Brightness 240x320 MCU Interface IPS

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-280CI2410

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	2.8TFT	Dimension:	50.00（W）* 69.20（H） * 2.30(T)
Active Area:	43.20* 57.60 Mm	Number OfDots:	240 * RGB * 320
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ST7789V	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	250cd~300cd
POL:	UP 0.17/below 0.17	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	300 Nits TFT LCD Display , 2.8in TFT LCD Display , 240x320 2.8 inch tft display

2.8 Inch 300 Nits TFT LCD Display High Brightness 240x320 MCU Interface IPS

Product Specifications

Attribute	Value
Size	2.8TFT
Dimension	50.00（W）* 69.20（H） * 2.30(T)
Active Area	43.20* 57.60 mm
Number Of Dots	240 * RGB * 320
LCD Type	a-Si TFT
Viewing Direction	12 o'clock
Driver IC	ST7789V
Interface Type	MCU
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	4 LEDs
Luminance	250cd~300cd
POL	UP 0.17/below 0.17
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

The 2.8 Inch 300nits High Brightness TFT LCD Display offers exceptional performance with 240x320 resolution and MCU interface, making it ideal for industrial and commercial applications.

Key Features

Compact Size: 2.8-inch display screen suitable for space-constrained devices
High Resolution: 240x320 pixel resolution for crisp image quality
IPS Technology: Excellent color performance from wide viewing angles
High Brightness: 300 cd/m² luminance for visibility in various lighting conditions
Multiple Interfaces: Supports SPI, RGB, and MCU interfaces for flexible integration
Touch Panel: Optional capacitive touch with I2C interface
Wide Temperature Range: Operates from -20℃ to +70℃ for industrial environments
Customization Options: Available for FPC shape, interface type, and other specifications

Frequently Asked Questions

What industries can utilize this display module?

The T-280CI2410 is versatile and suitable for industrial control systems, smart home applications, medical devices, and IoT equipment due to its robust performance and adaptability.

What is the minimum order quantity (MOQ)?

The standard minimum order quantity is 100 pieces, allowing for competitive pricing and efficient production.

Are there any specific certifications for this product?

Yes, the display module complies with various industry standards and certifications to ensure quality and reliability in professional applications.

How can I place an order?

Orders can be placed through our website or by contacting our sales team. We offer factory wholesale pricing and support sample requests for product evaluation.

What support is available after purchase?

Our after-sales service team provides troubleshooting assistance and solutions to ensure complete satisfaction with the product.
