2.8 Inch TFT LCD SPI MIMP JD9852 Lower Power LCD Dot Matrix Display

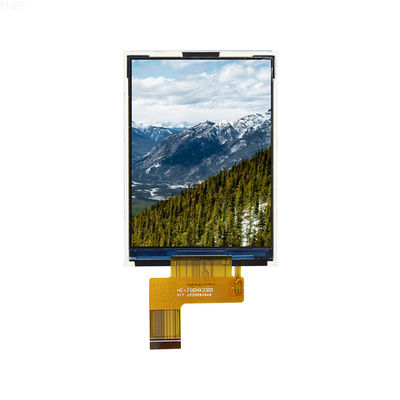

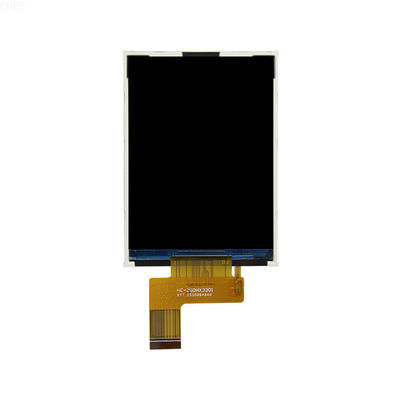

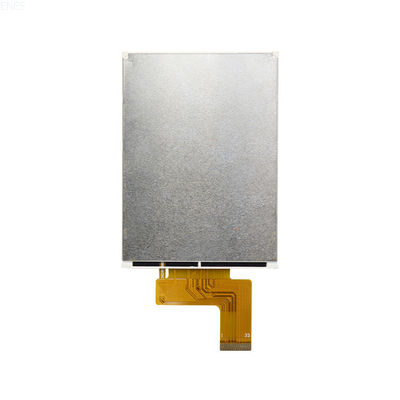

Large Image : 2.8 Inch TFT LCD SPI MIMP JD9852 Lower Power LCD Dot Matrix Display

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-280HX3301

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	2.8 Inch	Dimension:	50.00（W）* 69.20（H） *2.15(T)
Active Area:	43.20* 57.60 Mm	Number OfDots:	240 * RGB * 320
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	JD9852	Interface Type:	SPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	4 LEDs	Luminance:	230/cd~300/cd
POL:	UP 0.17/below 0.17	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	SPI 2.8 inch tft lcd , JD9852 2.8 inch tft lcd , JD9852 2.8 lcd display

2.8 Inch TFT LCD SPI MIMP JD9852 Lower Power LCD Dot Matrix Display

Product Specifications

Attribute	Value
Size	2.8 inch
Dimension	50.00（W）* 69.20（H） *2.15(T)
Active Area	43.20* 57.60 mm
Number Of Dots	240 * RGB * 320
LCD Type	a-Si TFT
Viewing Direction	ALL
Driver IC	JD9852
Interface Type	SPI
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	4 LEDs
Luminance	230/cd~300/cd
POL	UP 0.17/below 0.17
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

2.8inch SPI MIMP JD9852 Lower Power LCD Dot Matrix Display TFT LCD Display

DC Characteristics

Typical Operation Conditions

Backlight Circuit Characteristics

Frequently Asked Questions

Are you a manufacturing company or a trading company?

We are a manufacturing company with factories located in Shenzhen, Dongguan, and Jiangxi.

How can we obtain the samples?

The process for obtaining samples is as follows: Send an inquiry -> Receive a quotation -> Confirm the quotation and pay the mold fee -> Provide technical drawings -> Confirm the drawings -> Manufacture the mold and produce samples -> Complete the samples -> Deliver via freight or sea transportation.

How long will it take to receive the samples?

Wireframe drawing preparation takes 2-3 business days. Sample production time is approximately 10-15 business days.

Will you provide free samples?

Yes, we typically provide 1-3 free samples per order. However, the mold fee must be covered by the client.

Can you design LCD displays according to our specifications?

Absolutely. We specialize in custom designs and offer competitive mold fees tailored to your requirements.

What is the process for placing an order?

Once the samples have been approved, please submit your official purchase order via email or fax. Upon receipt, we will issue an invoice for the deposit. To proceed, we require the following details regarding your order:
1) Product information: quantity and part numbers
2) Delivery schedule preferences
3) Logistics information: company name, address, postal code, phone and fax numbers, and destination port
4) If applicable, please provide contact details for your freight forwarder in China.

How long does mass production take?

Mass production typically requires 25-30 business days. This timeline may vary depending on the specific order quantities and part numbers.
