3.2 Inch 240X320 12 0'CLOCK TFT LCD ST7793 IPS TFT LCD Module

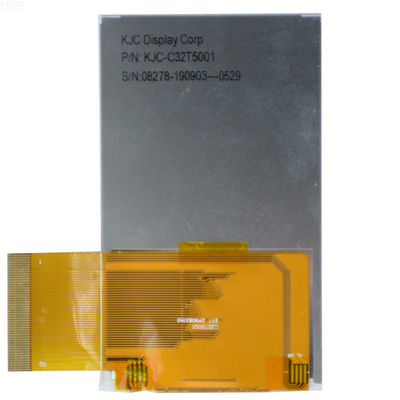

Large Image : 3.2 Inch 240X320 12 0'CLOCK TFT LCD ST7793 IPS TFT LCD Module

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T32T5001

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	3.2 Inch	Dimension:	47.66（W）* 80.90（H） * 2.3(T)
Active Area:	41.76 * 69.60 Mm	Number OfDots:	240 * RGB * 400
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ST7793	Interface Type:	RGB SPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	7 LEDs	Luminance:	450/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	240X320 tft lcd , 3.2in tft lcd , ST7793 ips tft display

3.2 Inch 240X320 12 0'CLOCK Tft Lcd ST7793 TFT LCD Module

Product Description

This colour active matrix thin film transistor liquid crystal display uses an amorphous silicon TFT as a switching device. This model is composed of a TFT panel, a driving circuit and a back light system. The TFT LCD has a 3.2 inch diagonally measured active display area with 240 horizontal by 320 vertical pixels resolution.

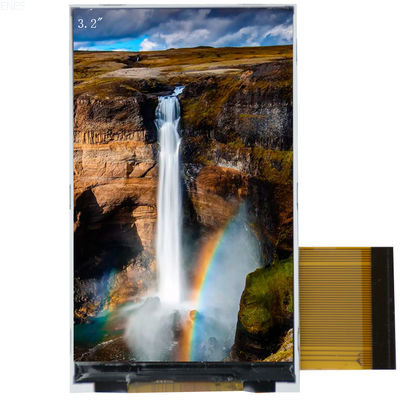

3.2 Inch 240X320 12 0'CLOCK TFT LCD ST7793 IPS TFT LCD Module 0

DC Characteristics

3.2 Inch 240X320 12 0'CLOCK TFT LCD ST7793 IPS TFT LCD Module 1

Typical Operation Conditions

3.2 Inch 240X320 12 0'CLOCK TFT LCD ST7793 IPS TFT LCD Module 2

Backlight Circuit Characteristics

3.2 Inch 240X320 12 0'CLOCK TFT LCD ST7793 IPS TFT LCD Module 3

FAQ

Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: How long can I get the goods?
A: It depends on the quantity. Our inventory is mainly raw materials, semi-finished and a small number of finished products. Samples available in stock will be sent in 3 days; Small batch delivery takes 15-20 working days include producing; Large batch delivery takes 20-30 working days. We will list the time cost for you before order.

Q: What if the goods get lost/ damaged on the way?
A: We strongly suggest to buy insurance in case of any problem. We will discuss these details with you before order.
