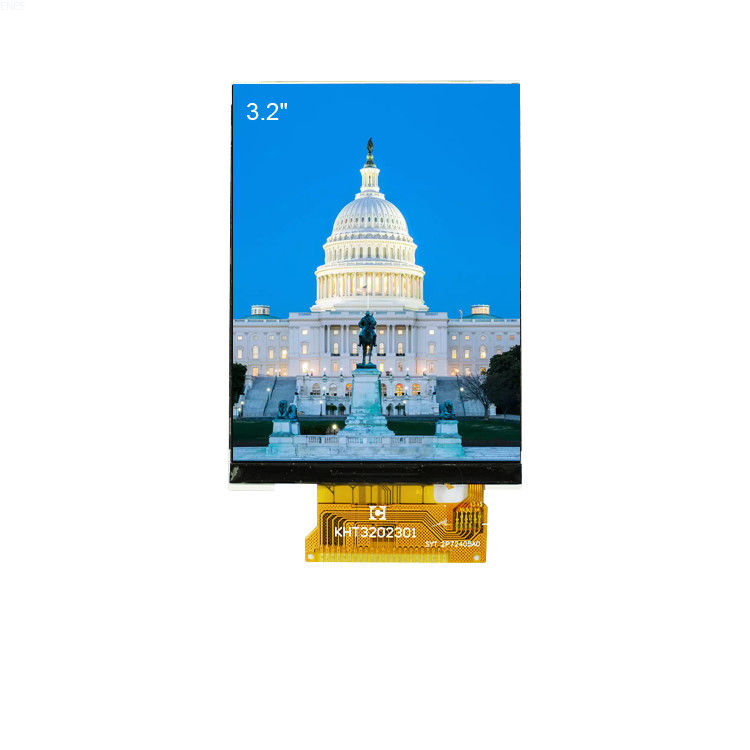

3.2 Inch 240x320 Resolution MCU TFT Custom LCD Display Module OEM
1.Product Description
3.2 Inch TFT Custom LCD Display Module OEM 240*320 Resolution Factory 3.2 Inch Tft Lcd Display Module Oem Custom 240*320 Resolution
2. Description

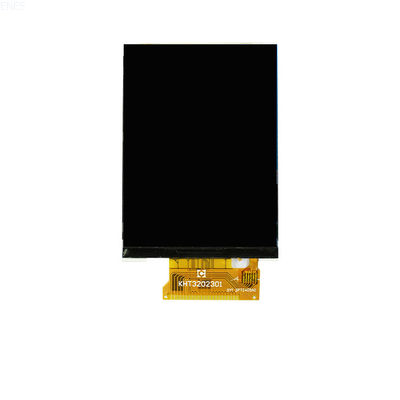

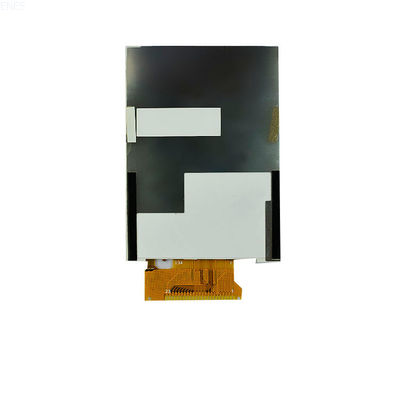

GC9306 is a color active-matrix thin-film transistor (TFT) liquid crystal display (LCD) that adopts amorphous silicon TFT as the switching device. This model consists of TFT liquid crystal panel, driver IC, backlight and FPC.

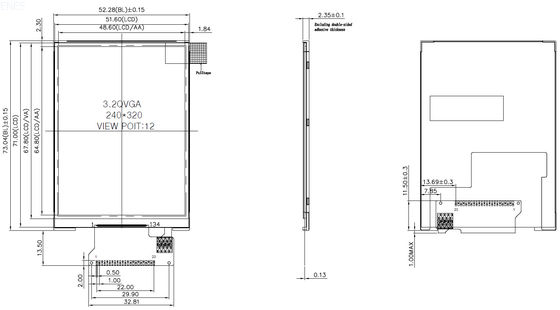

This TFT LCD has an active display area of 3.2 (vertical screen) inches diagonally measured, with a resolution of 240*320 (240 horizontal × 320 vertical pixels).
The driver used in this project is GC9306. It is installed on the glass through signal input and drives the display module through interconnection with components including FPC. It supports RGB and MCU interface.
In addition, FPC can be customized according to requirements, such as modifying backlight and interface definition, etc.
It complies with RoHS standards and halogen-free.
DC Characteristics
Typical Operation Conditions
Backlight Circuit Characteristics
FAQ
1.How can I find the right product?
Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.
2. Do you accept sample order or small quantity order?
Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
3. What are the payment terms?
We usually accept T/T, Paypal, other terms to be negotiated.
4.What’s the lead time?
Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).
Packing Method
1. Put module into tray cavity.
2. Tray stacking.
3. Put 1 foam under the tray stack and 1 foam above.
4. Fix the cardboard to the tray stack with adhesive tape.
5. Put the tray stack into carton. 6. Carton sealing with adhesive tape.
