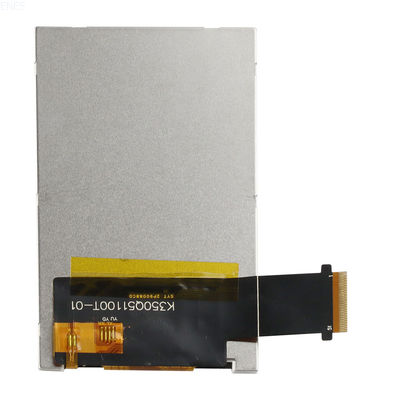

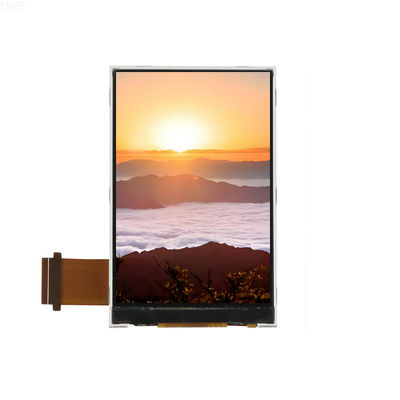

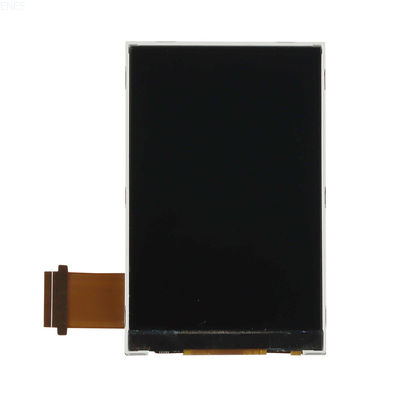

480 X 800 RGB IPS ST7701S 3.5 Inch TFT LCD With Touch Screen

Large Image : 480 X 800 RGB IPS ST7701S 3.5 Inch TFT LCD With Touch Screen

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T35B5102

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

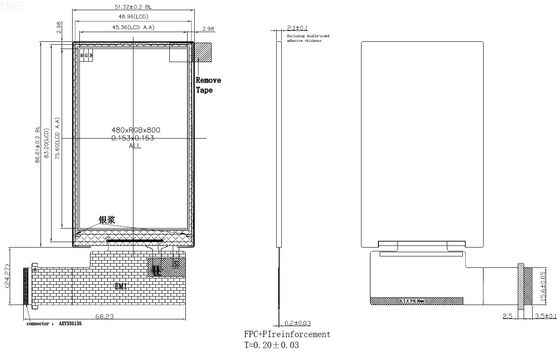

Size:	3.5 Inch	Dimension:	51.32（W）* 86.61（H） * 2.1(T)
Active Area:	45.36 * 75.60 Mm	Number OfDots:	480 * RGB * 800
LCD Type:	TFT-LCD /IPS	Viewing Direction:	ALL
Driver IC:	ST7701S	Interface Type:	RGB(24bit/18bit/16bit)
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	7 LEDs	Luminance:	350/cd~400/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	IPS 3.5 inch tft lcd screen , ST7701S 3.5 inch tft lcd screen , 480X800 3.5 inch tft lcd

480 X 800 RGB IPS ST7701S 3.5 Inch TFT LCD With Touch Screen

Product Specifications

Attribute	Value
Size	3.5 inch
Dimension	51.32(W) × 86.61(H) × 2.1(T) mm
Active Area	45.36 × 75.60 mm
Number Of Dots	480 × RGB × 800
LCD Type	TFT-LCD / IPS
Viewing Direction	ALL
Driver IC	ST7701S
Interface Type	RGB (24bit/18bit/16bit)
Operating Temperature	-20℃ ~ 70℃
Storage Temperature	-30℃ ~ 80℃
Backlight Type	7 LEDs
Luminance	350 cd/m² ~ 400 cd/m²
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

The 3.5-inch RGB IPS TFT display with touch screen delivers high-quality visuals with excellent viewing angles, responsive touch interaction, and robust performance. Engineered for versatility and durability, this display module is energy efficient and compatible with various applications.

Applications

This versatile 3.5-inch IPS TFT display with touch screen is ideal for numerous industrial and commercial applications:

Industrial Control Systems: Process monitoring, real-time data display, and operator interfaces
Consumer Electronics: Handheld devices, portable gaming consoles, and smart home interfaces
Medical Equipment: Patient monitoring systems, diagnostic tools, and portable medical devices
Automotive Infotainment: Navigation displays, entertainment systems, and vehicle diagnostics
Home Automation: Smart device control panels and environmental monitoring interfaces
Test & Measurement Equipment: Data visualization and control interfaces
Handheld Instruments: Multimeters, oscilloscopes, and signal generators
Portable Communication Devices: Two-way radios, walkie-talkies, and GPS units

The display's combination of high performance, durability, and interactive capabilities makes it suitable for demanding applications across multiple industries.
