320x480 3.5 Inch TFT LCD Display IPS MCU ST7796S IC Custom LCD Panel

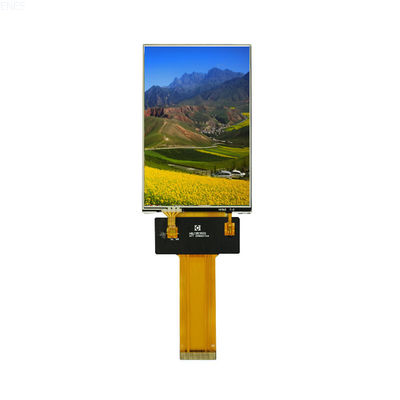

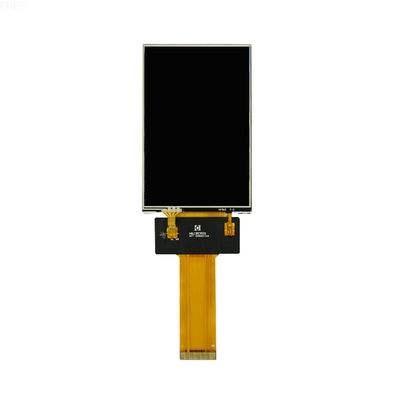

Large Image : 320x480 3.5 Inch TFT LCD Display IPS MCU ST7796S IC Custom LCD Panel

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T35J3501

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	3.5 Inch	Dimension:	54.48（W）* 84.71（H） * 2.30(T)
Active Area:	48.96* 73.44 Mm	Number OfDots:	320 * RGB * 480
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	ST7796S	Interface Type:	MCU
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	6 LEDs	Luminance:	250/cd~300/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	320x480 3.5 inch tft lcd display , IPS 3.5 inch tft lcd display , ST7796S 3.5 inch lcd display

3.5 Inch 320x480 IPS MCU TFT LCD Module ST7796S IC Customized LCD Panel

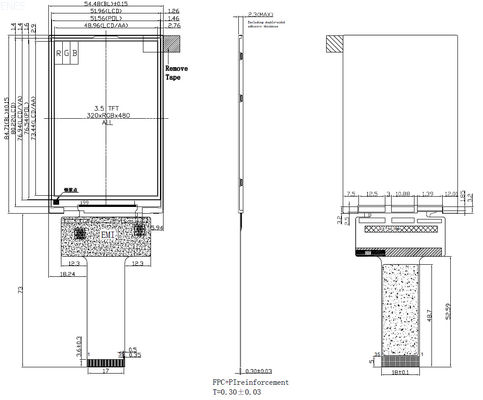

320x480 3.5 Inch TFT LCD Display IPS MCU ST7796S IC Custom LCD Panel 0
PinAssignments

Electro-Optical Characteristics

Product Features

1. Using high transmittance glass substrate: This LCD screen uses a glass substrate with high light transmittance, which makes the screen clear, bright, distinct, and colorful. At the same time, because it is designed with a low-power driver IC circuit, the whole machine consumes less power. The volume is greatly reduced, thereby reducing the user's cost of use.
2. Ultra-thin body: Small size, thin thickness, light weightand and easy to carry and use.
3. Low energy consumption: It saves power and does not generate high temperatures (the main power consumption and heat generation parts are in the backlight tube or LED)
4. Low radiation: It has low working voltage and low radiation, which is healthier and more comfortable.
5. Soft and comfortable screen: The screen will not flicker, which can reduce the damage to the eyes caused by the display and make the eyes less likely to tire.
6. Uniform brightness: The brightness of this LCD screen is very uniform and it can maintain high definition even under strong outdoor light.

FAQs

1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.

2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect

3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.

4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and any requirements, pls do not hestiate to tell me.

5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amo
