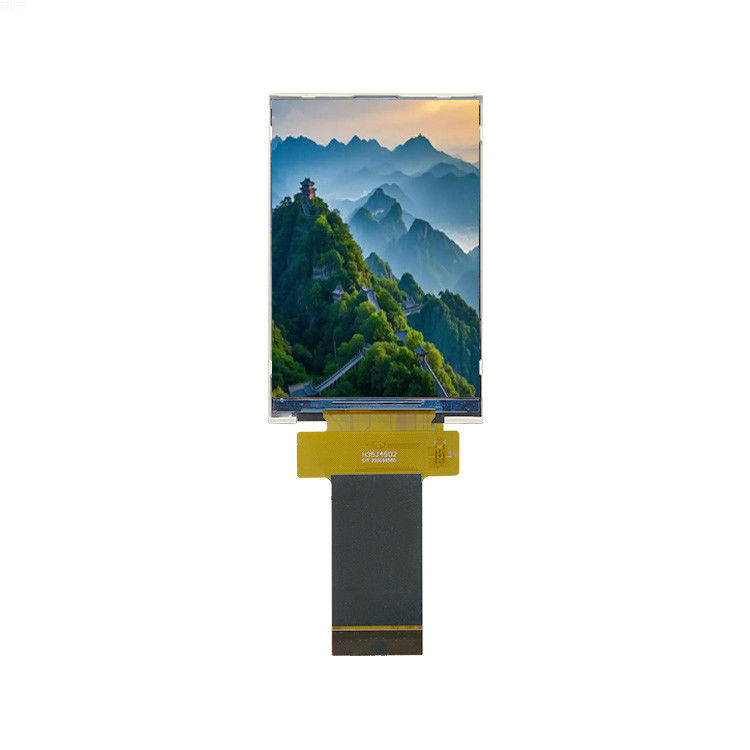

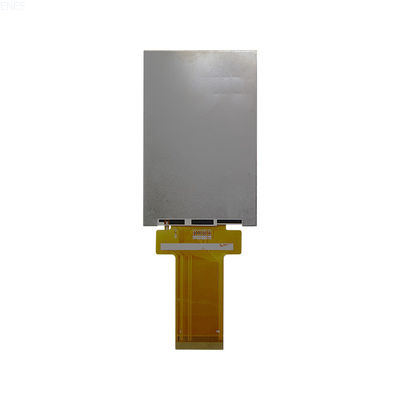

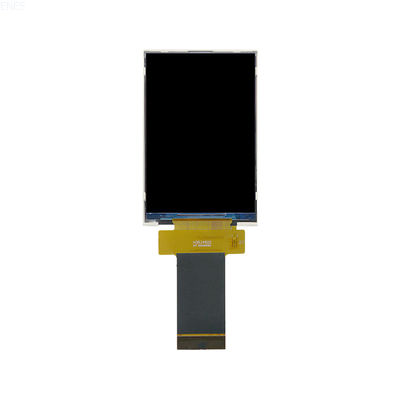

Small LCD Touch Screen 320x480 IPS RGB 18bit Multi Interface 3.5 Inch

Large Image : Small LCD Touch Screen 320x480 IPS RGB 18bit Multi Interface 3.5 Inch

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T35J4502

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

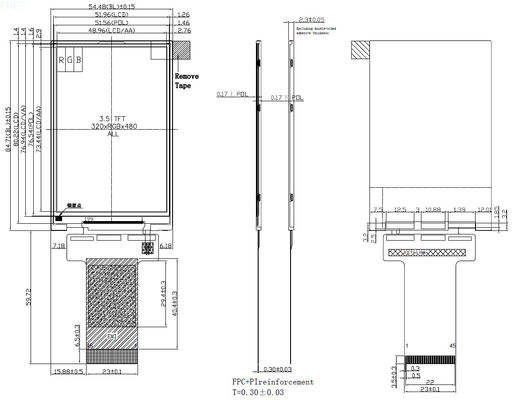

Size:	3.5 Inch	Dimension:	54.48（W）* 84.71（H） * 2.3(T)
Active Area:	48.96 * 73.44 Mm	Number OfDots:	320 * RGB * 480
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	ST7796S	Interface Type:	RGB(18bit)
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	6 LEDs	Luminance:	300/cd~350/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	Small lcd touch screen , 320x480 lcd touch screen , 3.5 Inch resistive touch screen panel

Small LCD Touch Screen 320x480 IPS RGB 18bit Multi Interface 3.5 Inch

Product Specifications

Attribute	Value
Size	3.5 inch
Dimension	54.48（W）* 84.71（H） * 2.3(T)
Active Area	48.96 * 73.44 mm
Number Of Dots	320 * RGB * 480
LCD Type	a-Si TFT
Viewing Direction	ALL
Driver IC	ST7796S
Interface Type	RGB(18bit)
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	6 LEDs
Luminance	300/cd~350/cd
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

The 3.5 inch Small LCD Touch Screen 320x480 IPS RGB 18bit Multi Interface offers exceptional performance with full viewing angle capability.

Key Features

Operates stably in wide temperature range (-20℃ to +70℃)
Integrated capacitive touch panel for direct human-computer interaction
IPS display technology provides full viewing angle (80/80/80/80)
Lightweight, thin, and compact design

Electrical Specifications

DC Characteristics

Typical Operation Conditions

Backlight Circuit Characteristics

Frequently Asked Questions

What kind of after-sales guarantees can you offer?

We provide one-year product warranty service, product replacement within 30 days after shipment, and remote online technical support.

In which industries are your products widely applied?

Our products are used in communication equipment, household appliances, medical equipment, vehicle-mounted devices, digital equipment, wearable devices, and IoT devices.

How do you ensure that the products are not damaged during transportation?

We use export-standard shipping boxes with internal foam filling to protect products during transit.

What customization services do you provide?

We offer module customization, packaging customization, transportation customization, FPC redesign, and different brightness backlight components.

What certifications do your products have?

Our products have CE/ROHS certifications and we can provide relevant certification reports.

Where is your headquarters? What is the business scope of your company?

Our headquarters is in Shenzhen, China. We specialize in LCD/LCM modules/CTP touch screens development and material processing, providing innovative LCD solutions.
