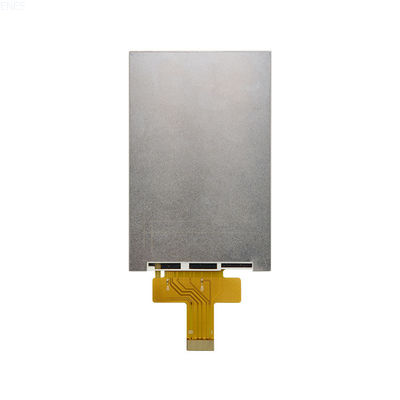

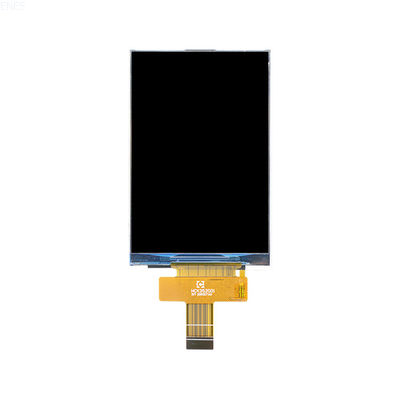

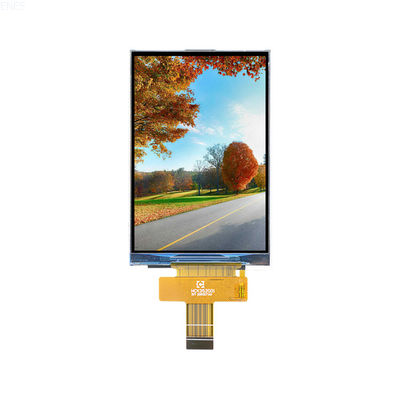

320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch

320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch
320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch
video play

Large Image :  320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T35K2001
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 400K/mth
Contact Now
Detailed Product Description
Size: 3.5 Inch Dimension: 54.48（W）* 84.71（H） * 2.30(T)
Active Area: 48.96* 73.44 Mm Number OfDots: 320 * RGB * 480
LCD Type: A-Si TFT Viewing Direction: 12 O’clock
Driver IC: ST7796S Interface Type: MIPI
Operating Temperature: -20℃~ 70℃ Storage Temperature: -30℃~ 80℃
Backlight Type: 6 LEDs Luminance: 300/cd
Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

320 X 480 tft lcd module

,

MIPI tft lcd module

,

3.5in resistive lcd display

320 × 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch
Product Specifications
Attribute Value
Size 3.5 inch

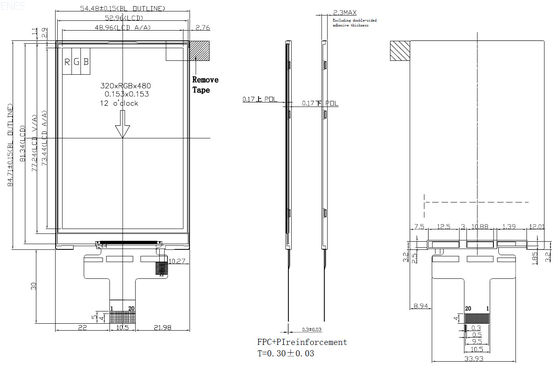

Dimension 54.48(W) × 84.71(H) × 2.30(T) mm
Active Area 48.96 × 73.44 mm
Number Of Dots 320 × RGB × 480
LCD Type a-Si TFT
Viewing Direction 12 o'clock
Driver IC ST7796S
Interface Type MIPI
Operating Temperature -20℃ ~ 70℃
Storage Temperature -30℃ ~ 80℃
Backlight Type 6 LEDs
Luminance 300/cd
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Product Description

The T35K2001 is a color active-matrix thin-film transistor (TFT) liquid crystal display (LCD) module featuring a 3.5-inch diagonal display area with 320×480 resolution. This industrial-grade display combines a TFT liquid crystal panel, driving circuit, resistive touch screen, and backlight system in a compact package.

320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch 0
Pin Assignments
320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch 1
Electro-Optical Characteristics
320 X 480 IPS MIPI TFT LCD Module Resistive LCD Display 3.5 Inch 2

Note: Color chromaticity is for LCD only.

Frequently Asked Questions
How is the quality of the products controlled?
Our quality team performs 100% inspection on all products before shipment.
What is the warranty period?
Standard warranty is one year (varies by product). We guarantee against manufacturing defects and will replace defective units found during normal use.
What certifications does this product have?
Certified for RoHS, CE compliance, with ISO9001 and ISO14001 reports available.
Can you provide product drawings and test reports?
Yes, we can provide technical documentation and test reports upon request.
Is the product manual available in English?
Yes, all product documentation is provided in English.
What is the minimum order quantity?
MOQ varies by product - please contact our sales team for details.
Do you accept OEM orders?
Yes, we provide OEM services including custom configurations.
What are typical applications for this display?
Ideal for HMI systems, handheld devices, medical equipment, instrumentation, appliances, automotive applications, and industrial automation.
