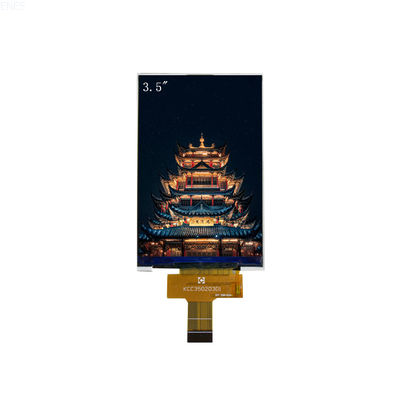

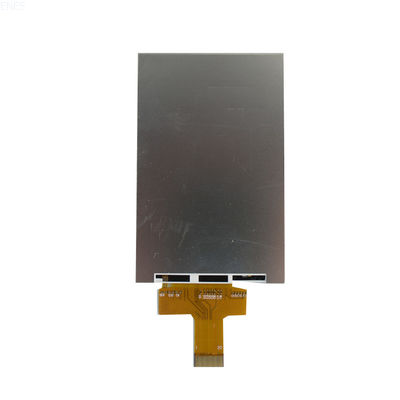

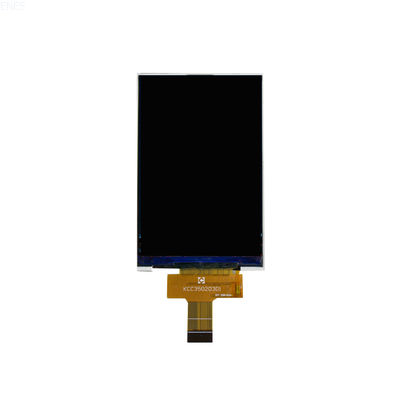

3.5'' SPI Tn TFT LCD Display 320x480 Color LCD Display Module With ILI9488

Large Image : 3.5'' SPI Tn TFT LCD Display 320x480 Color LCD Display Module With ILI9488

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T350C20301

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

Size:	3.5 Inch	Dimension:	54.48（W）* 84.71（H） * 2.30(T)
Active Area:	48.96* 73.44 Mm	Number OfDots:	320 * RGB * 480
LCD Type:	A-Si TFT	Viewing Direction:	12 O’clock
Driver IC:	ILI9488	Interface Type:	SPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	6 LEDs	Luminance:	350/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	SPI Tn TFT LCD Display , 3.5in TFT LCD Display , 320x480 color lcd display module

3.5inch SPI Tn TFT Lcd Display 320x480 Color Lcd Display Module With ILI9488

3.5-inch TFT LCD Module Specification
T350C20301 is a color active-matrix thin-film transistor (TFT) liquid crystal display (LCD) module that adopts amorphous silicon TFT as the switching device. This model consists of TFT liquid crystal panel, driver IC, backlight (BL), and FPC.
This TFT LCD display has an active display area with a diagonal measurement of 3.5 inches (vertical screen), and a resolution of 320(RGB) * 480.
The driver used in this project is ILI9488, which is installed on the glass and drives the display module through components including FPC. It supports multiple interfaces such as SPI/RGB/MCU/MIPI.
This module can also install touch modules such as CTP and RTP.
In addition, FPC can be customized according to customer requirements, such as modifying the backlight and CTP structure, interface definition, etc.
It complies with RoHS standards and halogen-free.

3.5'' SPI Tn TFT LCD Display 320x480 Color LCD Display Module With ILI9488 0

1.Pin Assignments

3.5'' SPI Tn TFT LCD Display 320x480 Color LCD Display Module With ILI9488 1

Note : Color chromaticty is for LCD only.

2.Response time

Response time is the time required for the display to transition from white to black (Rising time, Tr) and from black to white (Falling time, Tf) for additional information.

3.Contrast Ratio (CR)

Contrast Ratio (CR) is defined mathematically as:

Surface Luminance with all white pixels

Contrast Ratio=

Surface Luminance with all black pixels

Surface luminance is the center point across the LCD surface 500mm from the surface with all pixels displaying white.

Our Service

1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is 12 months.
