3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel

3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel
3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel
video play

Large Image :  3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T350C26301
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 7~14 working days
Payment Terms: L/C,T/T
Supply Ability: 400K/mth
Contact Now
Detailed Product Description
Size: 3.5 Inch Dimension: 54.50（W）* 82.90（H） * 2.2(T)
Active Area: 48.96* 73.44 Mm Number OfDots: 320 * RGB * 480
LCD Type: A-Si TFT Viewing Direction: 12 O’clock
Driver IC: ILI9488 Interface Type: MCU
Operating Temperature: -20℃~ 70℃ Storage Temperature: -30℃~ 80℃
Backlight Type: 6 LEDs Luminance: 350/cd
Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

IPS TFT LCD Display

,

320x480 TFT LCD Display

,

3.5in capacitive touch panel

3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel
Product Specifications
Attribute Value
Size 3.5 inch

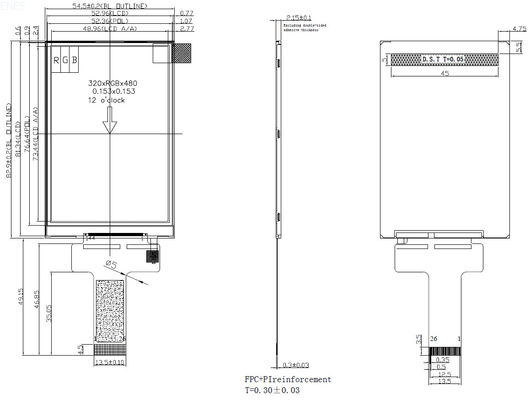

Dimension 54.50(W) × 82.90(H) × 2.2(T) mm
Active Area 48.96 × 73.44 mm
Number Of Dots 320 × RGB × 480
LCD Type a-Si TFT
Viewing Direction 12 o'clock
Driver IC ILI9488
Interface Type MCU
Operating Temperature -20℃ to 70℃
Storage Temperature -30℃ to 80℃
Backlight Type 6 LEDs
Luminance 350 cd/m²
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Product Overview

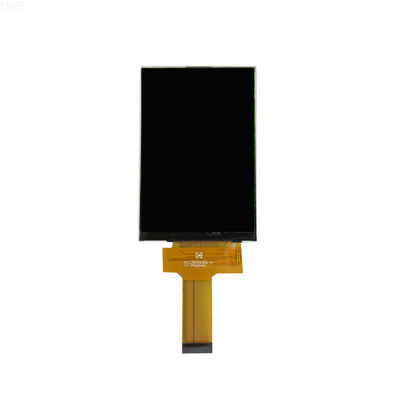

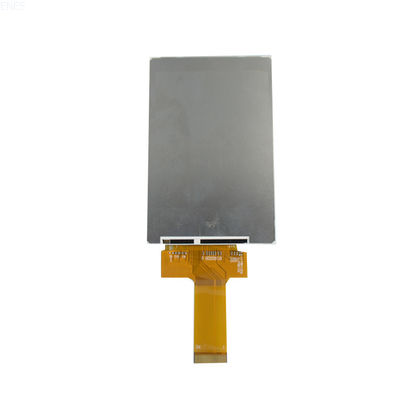

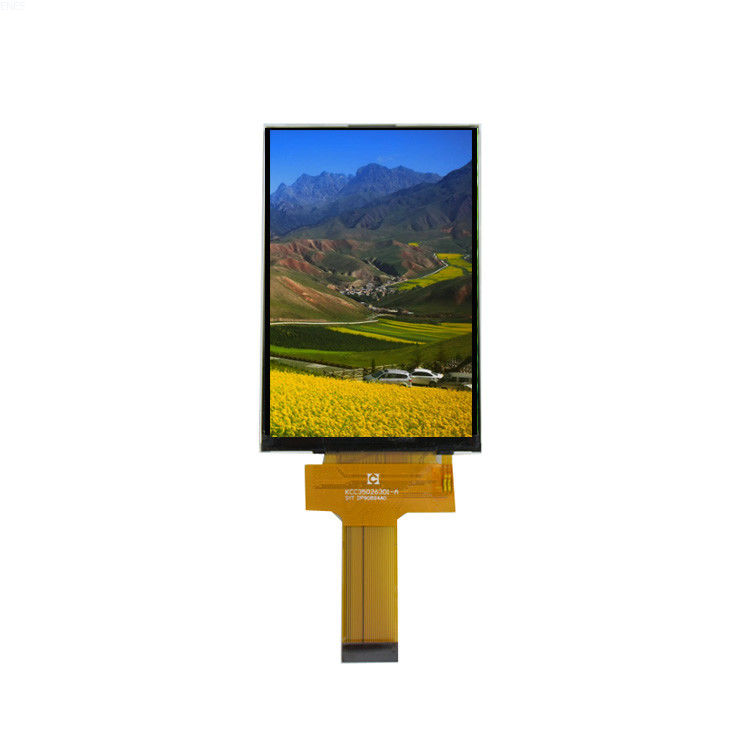

This 3.5 inch 320×480 IPS TFT LCD module features an MCU interface and customizable capacitive touch panel options. Designed for industrial applications, it offers high-quality display performance with excellent viewing angles and brightness.

Applications

Our professional TFT display modules are available with or without touch screens, including both capacitive and resistive touch options. Available in sizes from 1.44 to 12.3 inches, these displays are ideal for:

  • Industrial equipment
  • Medical devices
  • Automotive display systems
  • Office electronics
3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel 0
Electrical Specifications
3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel 1 3.5 Inch 320x480 IPS TFT LCD Display MCU Custom Capacitive Touch Panel 2
Technical Description

The CH350HV40A-T model is a color active matrix TFT LCD using amorphous silicon TFT technology. This complete module includes the LCD panel, driving circuit, resistive touch panel, and backlight system. The 3.5 inch display offers 320×480 pixel resolution with a bright, clear viewing experience.

Frequently Asked Questions
How is product quality controlled?

Our professional quality team performs 100% inspection on all products before shipment.

What is the warranty period?

Standard warranty is one year (varies by product). We guarantee against manufacturer defects, with liability limited to product replacement.

What certifications are available?

Products are certified RoHS, CE, and SGS compliant.

Can you provide product drawings and test reports?

Yes, we can provide all necessary product documentation and test reports upon request.

What language are product specifications in?

All product specifications are provided in English.
