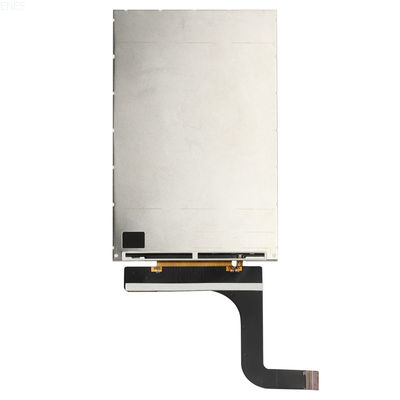

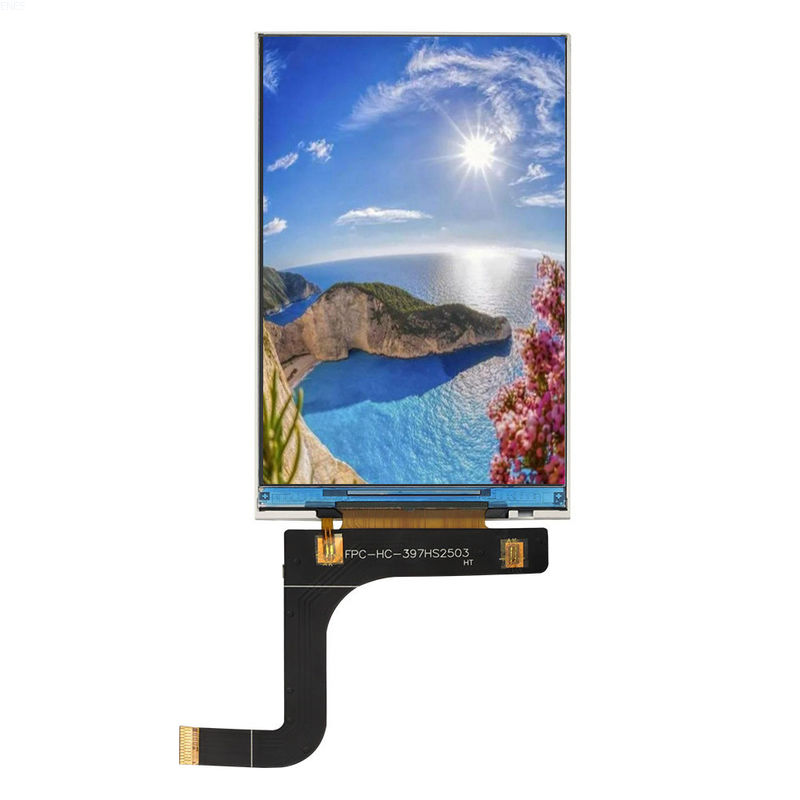

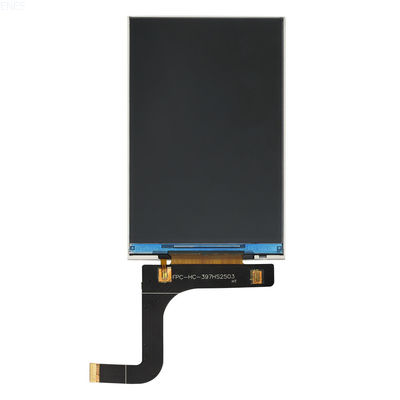

3.97'' TFT LCD Display Module With 480×800 ST7701S IC MIPI Interface

Large Image : 3.97'' TFT LCD Display Module With 480×800 ST7701S IC MIPI Interface

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T-397BS2503

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	400K/mth

Contact Now

Detailed Product Description

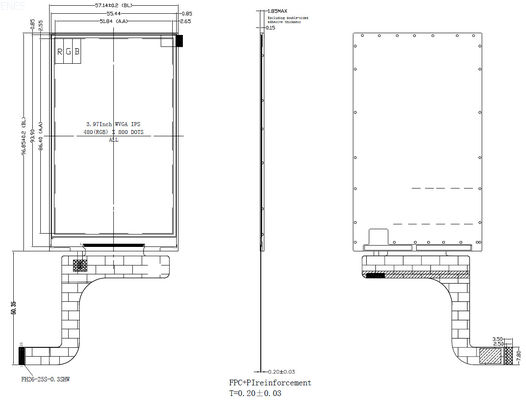

Size:	3.97 Inch	Dimension:	57.14（W）* 96.85（H） * 1.85(T)
Active Area:	51.84 * 86.40 Mm	Number OfDots:	480 * RGB * 800
LCD Type:	A-Si TFT	Viewing Direction:	Free
Driver IC:	ST7701S	Interface Type:	MIPI
Operating Temperature:	-10℃~ 70℃	Storage Temperature:	-20℃~ 80℃
Backlight Type:	8 LEDs	Luminance:	400/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	3.97'' TFT LCD Display , 480×800 TFT LCD Display , ST7701S industrial tft display

3.97'' TFT LCD Display Module With 480×800 ST7701S IC MIPI Interface

Product Specifications

Attribute	Value
Size	3.97 inch
Dimension	57.14（W）* 96.85（H） * 1.85(T)
Active Area	51.84 * 86.40 mm
Number Of Dots	480 * RGB * 800
LCD Type	a-Si TFT
Viewing Direction	Free
Driver IC	ST7701S
Interface Type	MIPI
Operating Temperature	-10℃~ 70℃
Storage Temperature	-20℃~ 80℃
Backlight Type	8 LEDs
Luminance	400/cd
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Description

T-397BS2503 is a color active-matrix thin-film transistor (TFT) liquid crystal display (LCD) that adopts amorphous silicon TFT as the switching device. It mainly consists of LCD panel, flexible circuit board, backlight element and driving IC. There is an active display area with a diagonal size of 3.97 inches, capable of displaying a color screen of 480*800 pixels.

This 480x480 TFT liquid module adopts TN display mode, with the best viewing angle being ALL, and the normal operating temperature is -20~+70. The service life is up to 20,000 H. Besides, T-397BS2503 is a customizable color LCD module. It can be customized according to customer requirements, such as interface definition, flexible circuit board design, brightness adjustment, screen display processing (anti-glare), etc.

Electro-Optical Characteristics

Note: Color chromaticity is for LCD only.

Measurement System

1. LCM Viewing Angle

Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD surface.

2. Response Time

Response time is the time required for the display to transition from white to black (Rising time, Tr) and from black to white (Falling time, Tf) for additional information.

3. Contrast Ratio (CR)

Contrast Ratio (CR) is defined mathematically as:

Surface Luminance with all white pixels
Contrast Ratio = -------------------------------------------------
Surface Luminance with all black pixels

Surface luminance is the center point across the LCD surface 500mm from the surface with all pixels displaying white.
