4.95 Inch MIPI IPS 854x480 Pixels ST7701S Multi Interface LCD Display Full Wide VGA

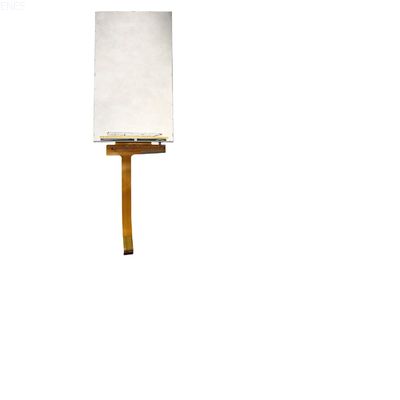

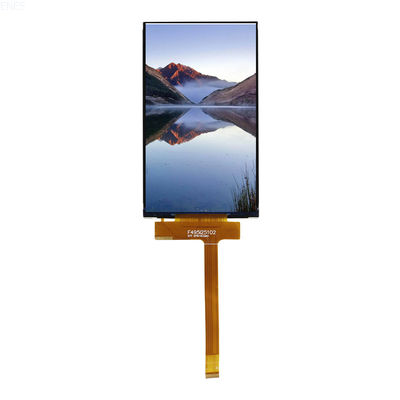

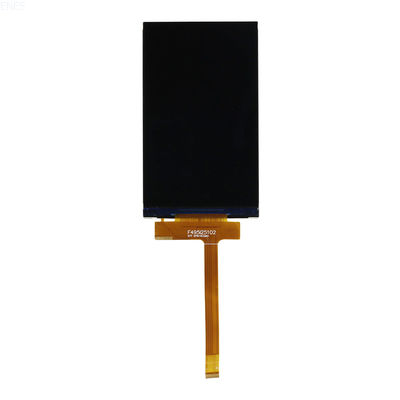

Large Image : 4.95 Inch MIPI IPS 854x480 Pixels ST7701S Multi Interface LCD Display Full Wide VGA

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T495I25102
Document:	T495I25102-NV.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	500K/mth

Contact Now

Detailed Product Description

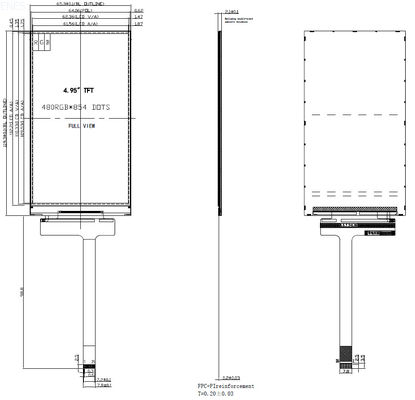

Size:	4.95 Inch	Dimension:	65.3（W）* 119.3（H） * 2.10(T)
Active Area:	61.56 * 109.53 Mm	Number OfDots:	480 * RGB * 854
LCD Type:	A-Si TFT	Viewing Direction:	Free
Driver IC:	ST7701S	Interface Type:	MIPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	12 LEDs	Luminance:	300/cd
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	4.95 Inch ips tft , 854x480 ips tft , ST7701S color tft lcd

4.95 Inch MIPI IPS 854x480 Pixels ST7701S Multi Interface LCD Display Full Wide VGA

Product Specifications

Attribute	Value
Size	4.95 inch
Dimension	65.3(W) × 119.3(H) × 2.10(T) mm
Active Area	61.56 × 109.53 mm
Number Of Dots	480 × RGB × 854
LCD Type	a-Si TFT
Viewing Direction	Free
Driver IC	ST7701S
Interface Type	MIPI
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Backlight Type	12 LEDs
Luminance	300 cd/m²
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

The T495I25102 is a high-performance 4.95-inch color active matrix TFT LCD display module featuring:

Amorphous silicon TFT technology with IPS full viewing angle (80/80/80/80)
854×480 pixel resolution for sharp image quality
MIPI interface for efficient data transfer
Wide operating temperature range (-20℃ to +70℃)
Extended service life exceeding 20,000 hours
Optional resistive touch panel (RTP) integration
300 nits luminance (customizable options available)

Certifications & Applications

This display module is CE and RoHS certified, making it ideal for financial payment terminals and other commercial applications. We offer comprehensive one-year quality assurance and professional customization services for special project requirements.
