5.0 Inch 800x480 Square Shape Display LCD IPS View Angle LCD Screen 40pin ST7262 Drive TFT Module

Large Image : 5.0 Inch 800x480 Square Shape Display LCD IPS View Angle LCD Screen 40pin ST7262 Drive TFT Module

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T050BWV40I3506

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	7~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	500K/mth

Contact Now

Detailed Product Description

Size:	5.0inch	Resolution:	800(horizontal)*480(Vertical)
Interface:	RGB-24bit	Connector:	Connector
Color Depth:	16.7M	Technology Type:	A-Si
Pixel Pitch (mm):	0.045 X 0.135	Pixel Configuration:	R.G.B. Vertical Stripe
Display Mode:	Normally Black	LCD IC:	ST7262
Pin:	40Pin	Viewing Direction:	ALL
Gray Scale Inversion Direction:	FREE	LCM (W X H X D) (mm):	120.775.82.8
Active Area(mm):	108 X 64.80	With /Without TSP:	Without
LED Numbers:	12LEDs	Luminance:	600/cd
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	5.0 inch IPS TFT LCD screen , 800x480 resolution LCD display , 40pin ST7262 drive TFT module

5.0 Inch 800×480 IPS View Angle LCD Screen with ST7262 Driver

A high-performance 5.0-inch TFT LCD module featuring IPS technology for superior viewing angles and color accuracy. Ideal for portable electronic devices including smartphones and tablets.

Technical Specifications

Size	5.0inch
Resolution	800×480 (H×V)
Interface	RGB-24bit
Color Depth	16.7M
Technology	a-Si
Pixel Pitch	0.045 × 0.135 mm
Display Mode	Normally Black
LCD Driver IC	ST7262
Connector	40Pin
Viewing Direction	ALL
Luminance	600 cd/m²
Operating Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃

Physical Dimensions

Module Size: 120.7 × 75.8 × 2.8 mm
Active Area: 108 × 64.80 mm

Customization Options

Available with FPC, capacitive touch panel (CTP), resistive touch panel (RTP), custom pin definition, packing options, and HD-MI board integration.

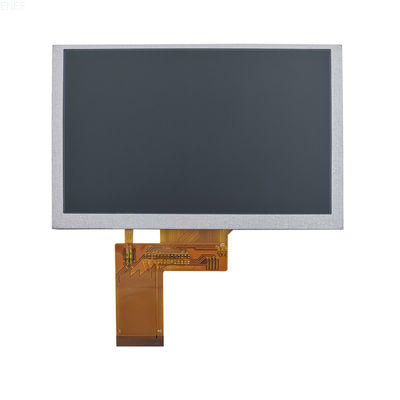

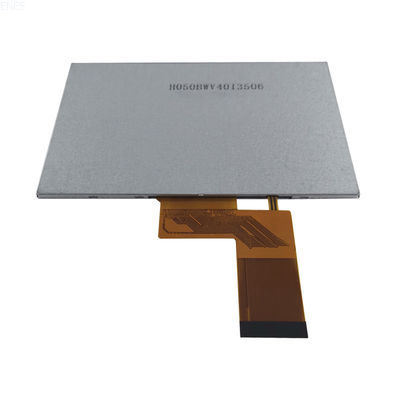

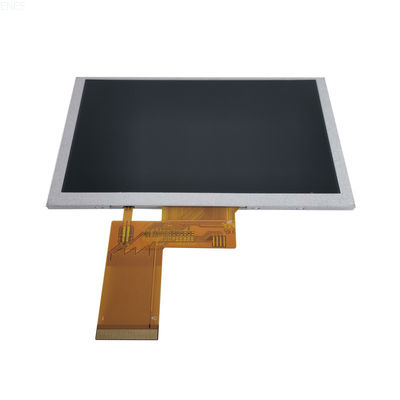

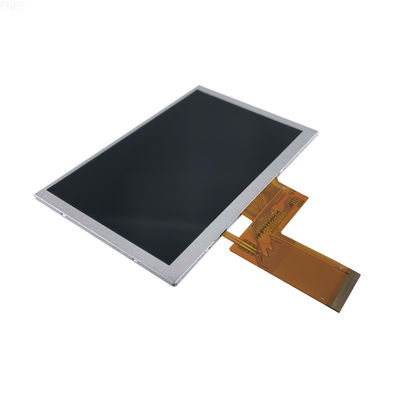

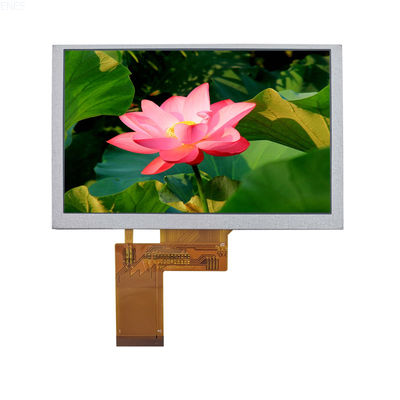

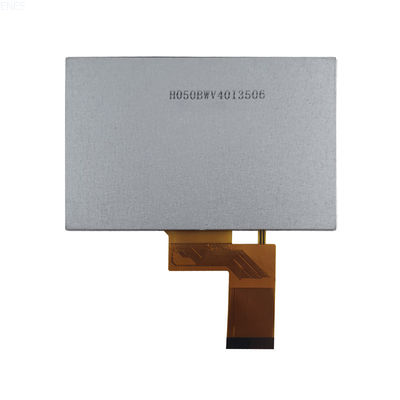

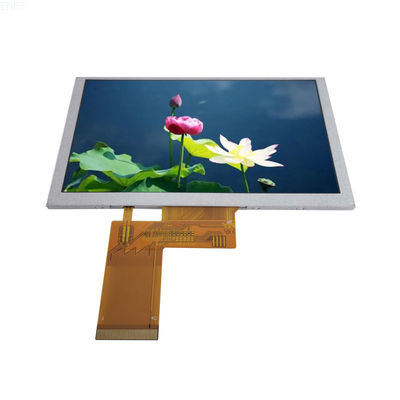

Product Images

Technical Notes

The absolute maximum ratings represent values which, if exceeded, may cause faulty operation or damage to the unit. Operational parameters are specified for PVDD=VDD=VDDI=3.3V, AGND=0V at 25°C.
