5.0 Inch 800*480 Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

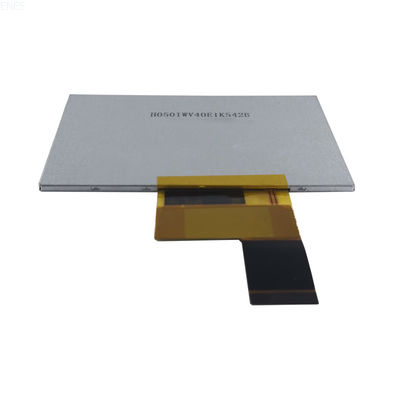

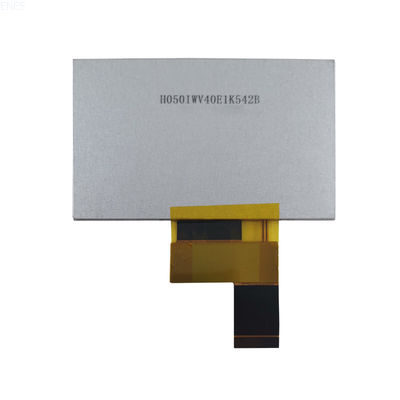

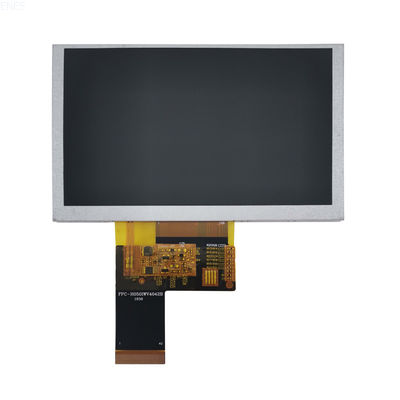

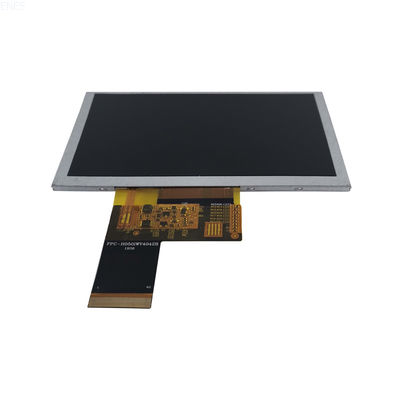

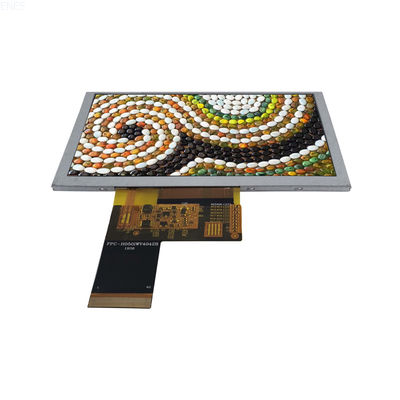

Large Image : 5.0 Inch 800*480 Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T050IWV40E1K542

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	5.0inch	Resolution:	800(horizontal)*480(Vertical)
Interface:	RGB-24bit	Connector:	Connector
Color Depth:	16.7M	Technology Type:	A-Si
Pixel Pitch (mm):	0.045 X 0.135	Pixel Configuration:	R.G.B. Vertical Stripe
Display Mode:	Normally Black	LCD IC:	ILI5960+ILI6122
Pin:	40Pin	Viewing Direction:	12 O’clock
Gray Scale Inversion Direction:	6 O’clock	LCM (W X H X D) (mm):	120.775.93
Active Area(mm):	108 X 64.80	With /Without TSP:	Without
LED Numbers:	18LEDs	Luminance:	500/cd
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

5.0 Inch 800*480 Resolution 40 Pin ILI5960 Lcd Screen LCD Touch Screen

40 Pin Lcd Screen 5 Inch 800*480 Resolution Small LCD Touch Screen

Description

ChengHao Display model T050IWV40E1K542 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a touch panel a driving IC, a back-light and FPC.
This TFT LCD has a 5.0 (Horizontal screen) inch diagonally measured active display area with 800*3(RGB)*480 resolution.
The driver used for this project can display 16M colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support 24-bit Parallel RGB Interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc. RoHS Compliance & Halogen Free.
Of course, if this tft lcd matrix 5 inches does not meet your project requirements at all, we can also design a new display solution for you according to your wishes, and you can obtain relevant information by consulting online customer service.

Absolute Maximum Ratings

Products Quality Assurance

(1)High-quality raw material supplier :
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials:
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
