10.1'' TFT LCD Display Module With 1200x1920 Dots Resolution MIPI Interface

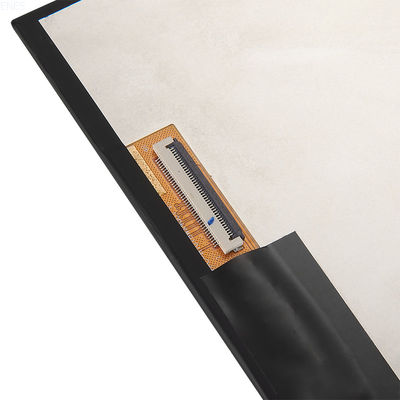

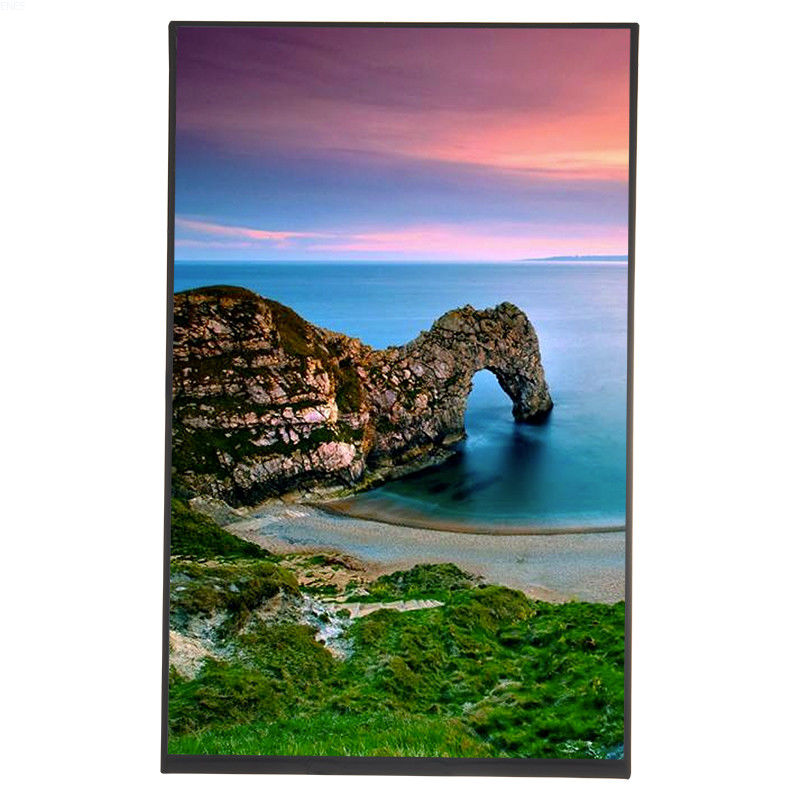

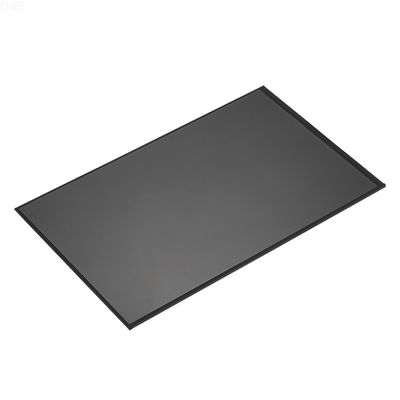

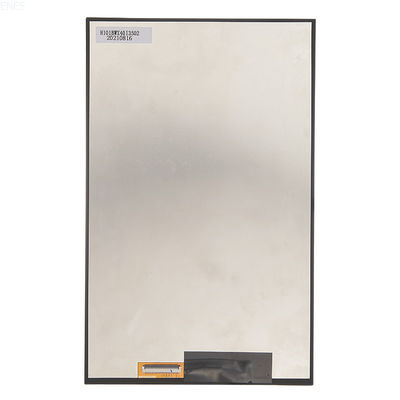

Large Image : 10.1'' TFT LCD Display Module With 1200x1920 Dots Resolution MIPI Interface

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T101WU02

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	10.1TFT	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Resolution:	1200(horizontal)*1920(Vertical)	Interface:	MIPI
Connect Type:	Connector	Color Depth:	16.7M
Technology Type:	A-Si	Pixel Configuration:	R.G.B.-Vertical Stripe
Display Mode:	Normally Black	Driver IC:	OTA7290B
Surface Treatment:	HC	Viewing Direction:	ALL
LCM (W X H X D) (mm):	162.32X243.58*4.75	Active Area(mm):	216.576X135.36
With /Without TSP:	Without TSP	LED Numbers:	32LEDs (8*4)
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Luminance:	330cd/m2
Highlight:	10.1in TFT LCD Display , 1200x1920 Dots TFT LCD Display , MIPI Interface tft lcd display module

10.1'' TFT LCD Display Module With 1200x1920 Dots Resolution MIPI Interface

Product Specifications

Size	10.1TFT
Resolution	1200(horizontal)*1920(Vertical)
Interface	MIPI
Connect type	Connector
Color Depth	16.7M
Technology type	a-Si
Pixel Configuration	R.G.B.-Vertical Stripe
Display Mode	Normally Black
Driver IC	OTA7290B
Viewing Direction	ALL
LCM Dimensions (W×H×D)	162.32×243.58×4.75 mm
Active Area	216.576×135.36 mm
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃
Luminance	330cd/m²

Product Description

This 10.1-inch transmissive TFT LCD display module features a high resolution of 1200×1920 pixels with MIPI interface, delivering 16.7 million colors for vibrant, detailed visuals. The module combines a TFT LCD panel, driver circuit, and backlight unit in a compact design.

Key Features

High-resolution 10.1-inch display with 1200×1920 pixel density
MIPI interface for high-speed data transmission
OTA7290B driver chip ensures high refresh rates and smooth display
Wide viewing angle with accurate color reproduction
Compact dimensions: 162.32×243.58×4.75 mm
Operating temperature range: -20℃ to 70℃
330cd/m² brightness for clear visibility

Applications

Digital products, instrumentation, automotive electronics, communication equipment, medical devices, security systems, and household appliances.

Input/Output Terminals

No.	Symbol	Description
1	GND	Ground
2-4	LEDK	Backlight cathode
6-8	LEDA	Backlight anode
10	TP-VDD	TP power supply
11	TP-RET	TP reset pin
12	TP-INT	TP communication interrupt
13	TP-SDA	TP SPI data input
14	TP-SCL	TP SPI clock
18-20	VDD3.3V	Power supply
22-35	Various	MIPI DSI differential clock pairs
38	RESET	Reset pin
