7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch

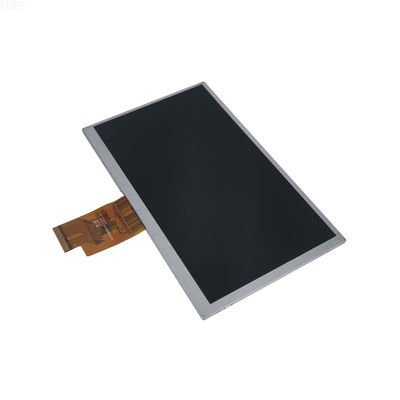

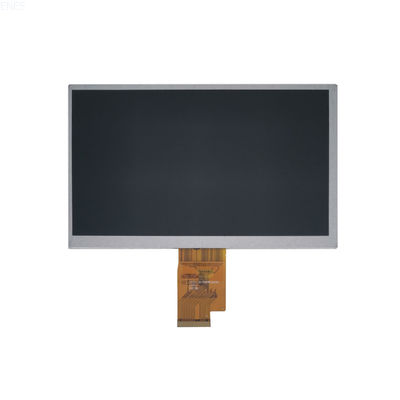

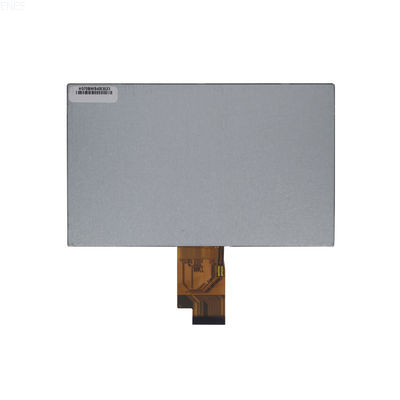

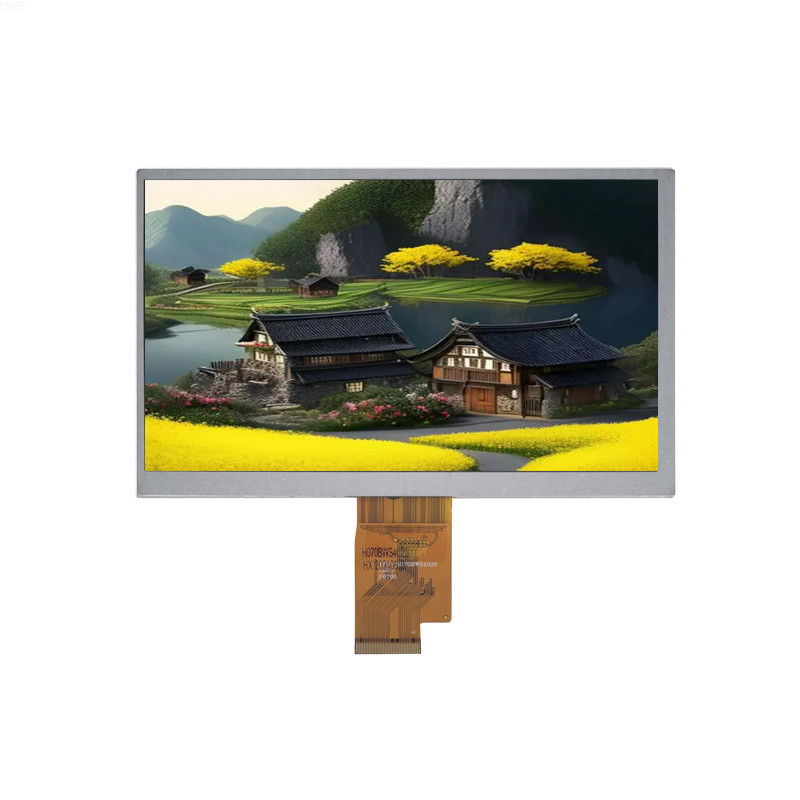

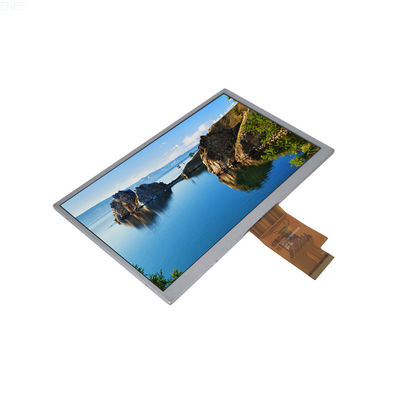

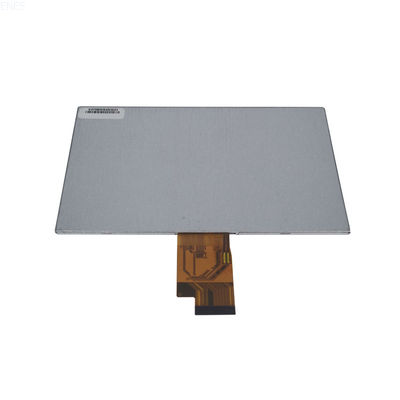

Large Image : 7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T070B W S40I3523

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Panel Size:	7.0 Inch	Number Of Pixels:	1024×RGB (3) ×600
Active Area:	154.21(H)x85.92(V) Mm	Pixel Pitch:	0.1506(H)×0.1432(V) Mm
Outline Dimension:	164.9(W)×100(H)×2.8(D)	Number Of Colors:	16.7M
Display Mode:	Normally Black	LCD IC:	HX8282-A02+HX8696-A01
Viewing Direction:	ALL	Display Format:	RGB Vertical Stripe
Luminance (cd/m^2):	350(TYP.)	Contrast Ratio:	800(TYP.)
Surface Treatment:	Anti-Glare	Interface:	LVDS
Backlight:	27 LEDs	Backlight:	White LED
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board

7.0 Inch 1024×600 LVDS High Resolution LCD Module With Capacitive Touch

Product Specifications

Attribute	Value
Panel Size	7.0 inch
Number of Pixels	1024×RGB (3) ×600
Active Area	154.21(H)x85.92(V) mm
Pixel Pitch	0.1506(H)×0.1432(V) mm
Outline Dimension	164.9(W)×100(H)×2.8(D)
Number of Colors	16.7M
Display Mode	Normally Black
LCD IC	HX8282-A02+HX8696-A01
Viewing Direction	ALL
Display Format	RGB vertical stripe
Luminance (cd/m²)	350(TYP.)
Contrast Ratio	800(TYP.)
Surface Treatment	Anti-Glare
Interface	LVDS
Backlight	27 LEDs, White LED
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

This 7-inch IPS LCD touchscreen module is designed for smart home applications, featuring a high resolution of 1024×600 pixels. The IPS technology provides wide viewing angles, allowing clear visibility from any direction. The LVDS interface ensures high-speed data transfer, while USB connectivity simplifies integration with external devices. The I2C interface offers stable communication for reliable operation in smart home control systems.

Electrical Characteristics

Frequently Asked Questions

Q: Can I order a sample to test the quality?

A: Yes, we recommend testing a sample before placing bulk orders. Samples are available for quality verification.

Q: Could you provide me with your catalogue and price list?

A: Our complete product range is available on our website. Please review the available models or inform us of your specific requirements, and our team will assist you.

Q: What pricing is available for large orders?

A: Please provide detailed specifications including item numbers, quantities, quality requirements, and shipping details for an accurate quotation.

Q: What payment methods do you accept?

A: We accept 100% prepayment for samples and small orders. Bulk orders require 30% advance payment with 70% balance due. Payment methods include TT, bank transfer, and PayPal.

Q: How long will it take for my order to be shipped?

A: Samples typically ship within 1-3 working days after payment confirmation. Custom orders require 7-15 working days. We will notify you immediately if any inventory issues arise.
