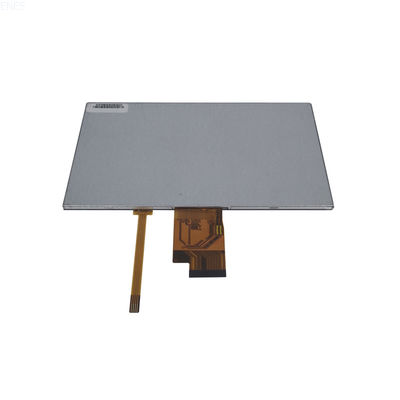

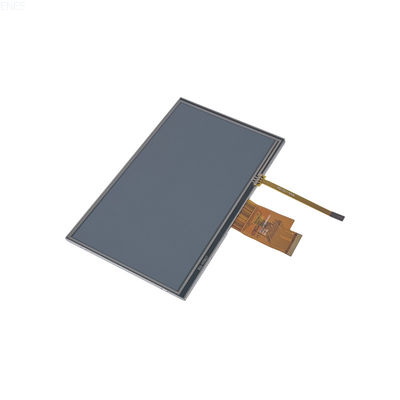

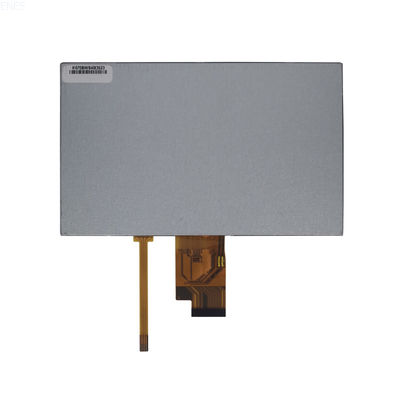

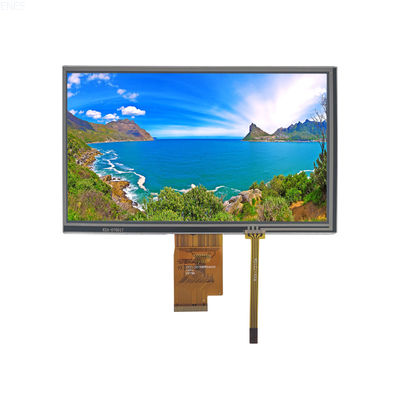

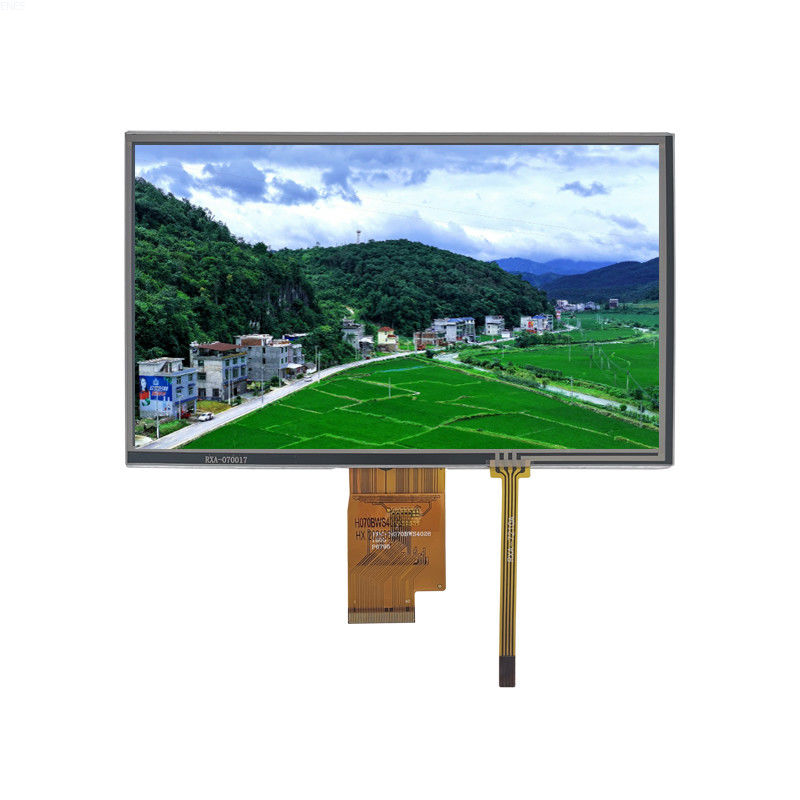

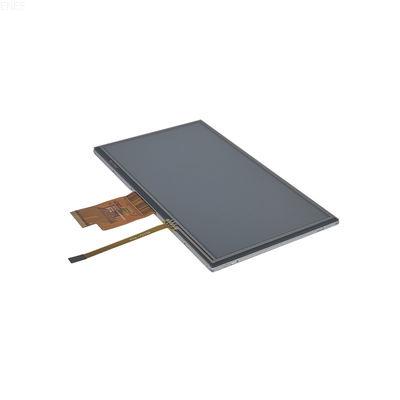

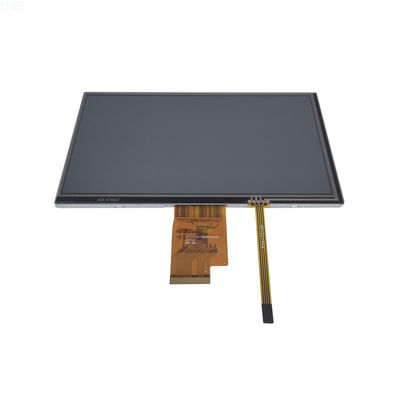

7.0 Inch LVDS 1024x600 IC GT911 HD Tft Lcd LCD Touch Screen

Large Image : 7.0 Inch LVDS 1024x600 IC GT911 HD Tft Lcd LCD Touch Screen

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T070B W S40I3523 -CT24

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Panel Size:	7.0 Inch	Number Of Pixels:	1024×RGB (3) ×600
Active Area:	154.21(H)x85.92(V) Mm	Pixel Pitch:	0.1506(H)×0.1432(V) Mm
Outline Dimension:	164.9(W)×100(H)×2.8(D)	Number Of Colors:	16.7M
Display Mode:	Normally Black	LCD IC:	HX8282-A02+HX8696-A01
Viewing Direction:	ALL	Display Format:	RGB Vertical Stripe
Luminance (cd/m^2):	350(TYP.) (Customizable)	Contrast Ratio:	800(TYP.)
Surface Treatment:	Anti-Glare	Interface:	LVDS
Touch Structure:	G+G, G+F, P+G, G+F+F	Glass Brand:	AGC, Gorilla, BOE, CTC, Inolux, Etc.
Backlight:	White LED	Operating Temperature:	-20--+70/-30--+85(℃)
Storage Temperature:	-30--+80/-40--+90(℃)	Custom Service:	Different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.

7.0 Inch LVDS 1024x600 IC GT911 HD TFT LCD Touch Screen

Product Specifications

Attribute	Value
Panel Size	7.0 inch
Number of Pixels	1024×RGB (3) ×600
Active Area	154.21(H)x85.92(V) mm
Pixel Pitch	0.1506(H)×0.1432(V) mm
Outline Dimension	164.9(W)×100(H)×2.8(D)
Number of Colors	16.7M
Display Mode	Normally Black
LCD IC	HX8282-A02+HX8696-A01
Viewing Direction	ALL
Display Format	RGB vertical stripe
Luminance (cd/m²)	350(TYP.) (Customizable)
Contrast Ratio	800(TYP.)
Surface Treatment	Anti-Glare
Interface	LVDS
Touch Structure	G+G, G+F, P+G, G+F+F
Glass Brand	AGC, Gorilla, BOE, CTC, Inolux, etc.
Backlight	White LED
Operating Temperature	-20--+70/-30--+85(℃)
Storage Temperature	-30--+80/-40--+90(℃)
Custom Service	Different colors, shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, etc.

Product Description

T070B W S40I3523 -CT24 is a high-definition TFT LCD with touch panel designed for industrial equipment applications. This display has undergone rigorous testing including high/low temperature and anti-aging tests, ensuring reliable performance in environments ranging from -20 to +70℃ with a service life exceeding 20,000 hours.

Technical Specifications

Structure: G+G with GT911 IC (TX20 RX123 channels)
Surface hardness: 6H
No visible etching to naked eye
TP warpage ≤ 0.3mm
Unmarked tolerance: ±0.2mm
Bevel: C0.15±0.05mm
Operating environment: -10~60℃, 20~90%RH
Storage environment: -20~70℃, 20~90%RH
ROHS compliant materials

The display features a 7.0-inch color display area capable of showing video animations at 1024×600 pixel resolution. It combines an LCD panel (TN TFT type with 24-bit Parallel RGB Interface) with a resistive touch panel (RTP) supporting USB interface.
