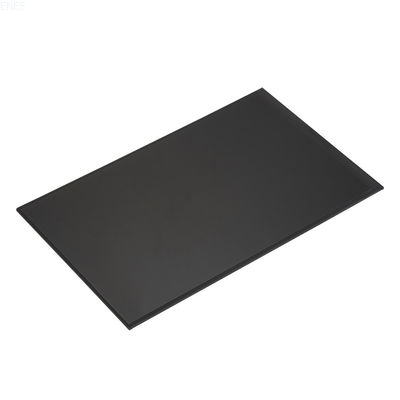

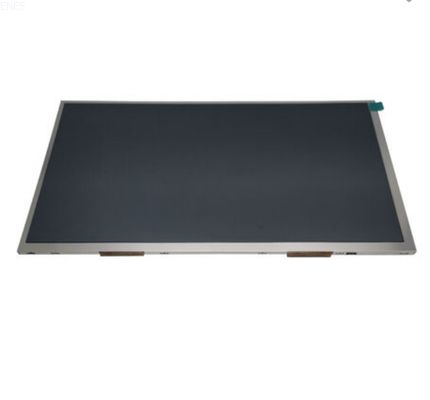

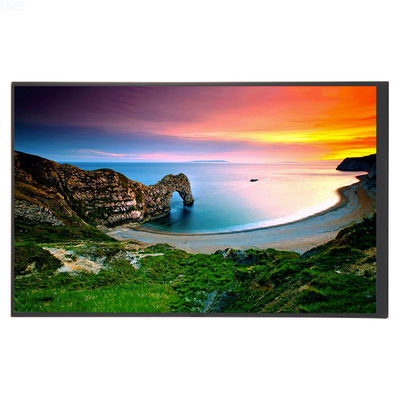

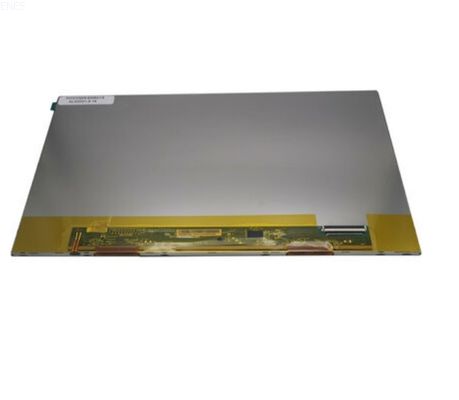

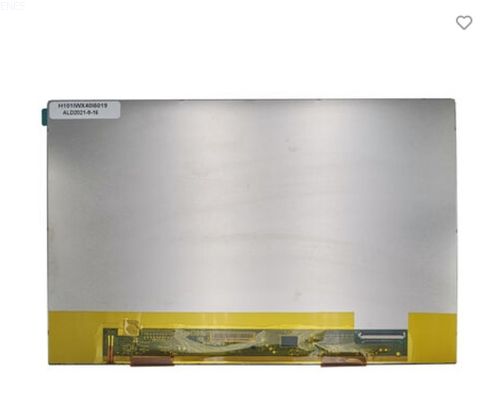

10.1'' 31pin TFT LCD Screen 1280X800 LVDS 8bit Interface For Medical Equipments

10.1'' 31pin TFT LCD Screen 1280X800 LVDS 8bit Interface For Medical Equipments
10.1'' 31pin TFT LCD Screen 1280X800 LVDS 8bit Interface For Medical Equipments
video play

Large Image :  10.1'' 31pin TFT LCD Screen 1280X800 LVDS 8bit Interface For Medical Equipments

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: T101WX09H-V1
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~15 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Panel Size: 10.1 Inch Number Of Pixels: 1280(horizontal)*800(Vertical)
Interface: LVDS 8bit Connect Type: Connector
Color Depth: 16.7M Technology Type: A-Si
Display Spec. Pixel Pitch (mm): TBD Pixel Configuration: R.G.B.-Stripe
Display Mode: Normally Black Driver IC: --
Surface Treatment: HC Viewing Direction: Full View
Brightness: 1000cd/m2 Gray Scale Direction: Free
LCM (W X H X D) (mm): 229.06*148.7*2.65 Active Area(mm): 216.96x 135.6
With /Without TSP: Without TSP LED Numbers: 39LEDs
Custom Service: Different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.
Highlight:

31pin tft lcd screen

,

10.1'' tft lcd screen

,

1280X800 industrial tft display

10.1'' 31pin TFT LCD Screen 1280X800 LVDS 8bit Interface For Medical Equipment
Product Specifications
Attribute Value
Panel Size 10.1 inch
Number of Pixels 1280(horizontal)*800(Vertical)
Interface LVDS 8bit
Connect type Connector
Color Depth 16.7M
Technology type a-Si
Pixel Configuration R.G.B.-Stripe
Display Mode Normally Black
Surface Treatment HC
Viewing Direction Full View
Brightness 1000cd/m2
LCM Dimensions (W x H x D) 229.06*148.7*2.65 mm
Active Area 216.96x 135.6 mm
With /Without TSP Without TSP
LED Numbers 39LEDs
Customization Options
  • Different colors and shapes
  • Logo printing
  • Through holes
  • Transparent windows
  • Silk printing
  • Anti-UV ink
  • Colorful OCA
Product Description

This 10.1-inch TFT LCD display module features 1280×800 resolution with LVDS 8bit interface, specifically designed for medical equipment applications. The high-speed, stable transmission ensures clear display of medical images and data, supporting accurate medical device operation.

10.1'' 31pin TFT LCD Screen 1280X800 LVDS 8bit Interface For Medical Equipments 0
Note 1: Viewing direction follows data measured by optical equipment.
Note 2: Environmental Protection: RoHS compliant.
Note 3: LCM weight tolerance: +/- 5%
Electrical Characteristics
Typical Operation Conditions
Item Symbol MIN Typ MAX Unit Remark
Digital Supply Voltage VDD 2.3 2.5 3.6 V
TFT Gate on Voltage VGH 21.7 22 23 V
TFT Gate off Voltage VGL -7.3 -7 -6.7 V
Analog power Supply Voltage AVDD 8 8.2 8.4 V
TFT Common electrode Voltage VCOM 2.7 3.0 3.6 V
Driving Backlight Specifications
Item Symbol MIN TYP MAX Unit Remark
Forward Current IF - 260 - mA
Forward Voltage VF - 9.6 V
Backlight Power consumption WBL 25000 - - W
Note 1: Each LED: IF =20 mA, VF =3.3V.
Note 2: Optical performance should be evaluated at Ta=25℃ only.
Note 3: LED lifetime may be reduced under high current, temperature & humidity conditions.
Frequently Asked Questions
Q: Are you manufacturer?
A: Yes, we are manufacturer.
Q: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
Q: If the products can't work after receiving it, what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.
Q: Do you accept OEM design?
A: Yes, we do. We can design according to your requirement, MOQ usually 100-1000.
