13.3 Inch LCD Laptop Screen Panel 1920x1080 FHD IPS TFT Module Display For Notebook

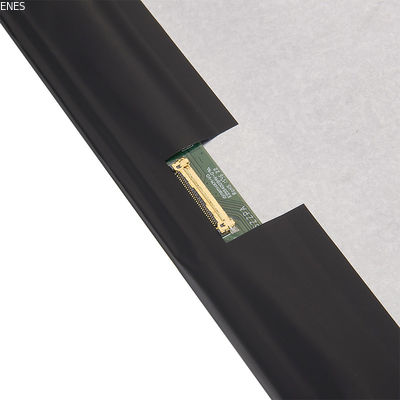

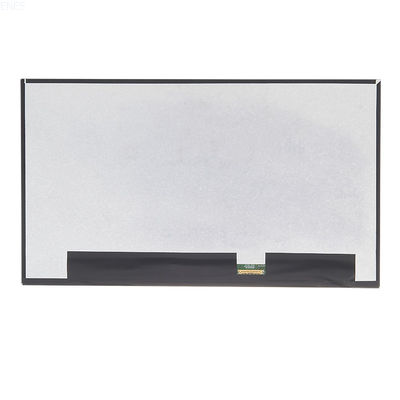

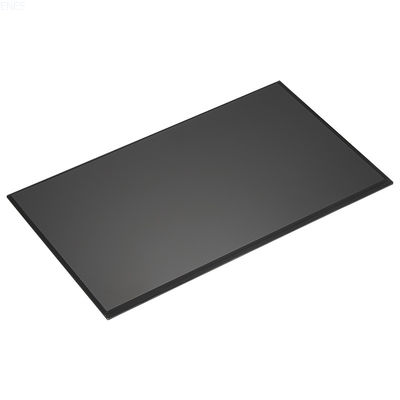

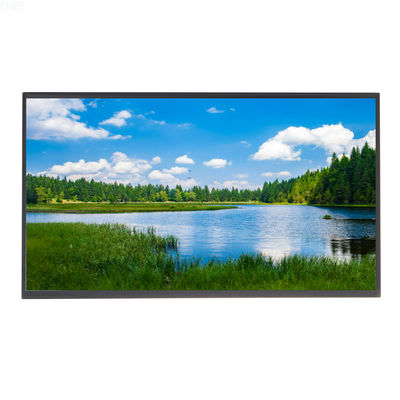

Large Image : 13.3 Inch LCD Laptop Screen Panel 1920x1080 FHD IPS TFT Module Display For Notebook

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T133FH03

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~15 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Panel Size:	13.3 Inch	LCM Dimension:	305（W）x 177.9（H） X 2.65(T)
LCD Active Area:	239.76* 165.24mm	Number OfDots:	1920* RGB * 1080
LCD Type:	A-Si TFT	Viewing Direction:	ALL
Driver IC:	--	Interface Type:	EDP/MIPI
Operating Temperature:	-20℃~ 70℃	Storage Temperature:	-30℃~ 80℃
Backlight Type:	56 LEDs	Backlight Luminance:	300 Cd/m(Typ)
Color Coordinate:	X=0.273±0.03 Y=0.264±0.03	Custom Service:	Different Colors, Different Shapes, Logo Printing, Through Holes, Transparent Windows, Silk Printing, Anti-UV Ink, Colorful OCA, Etc.

13.3 Inch LCD Laptop Screen Panel 1920x1080 FHD IPS TFT Module Display For Notebook

Product Specifications

Attribute	Value
Panel Size	13.3 inch
LCM Dimension	305（W）x 177.9（H） x 2.65(T)
LCD Active Area	239.76* 165.24mm
Number OfDots	1920* RGB * 1080
LCD Type	a-Si TFT
Viewing Direction	ALL
Interface Type	EDP/MIPI
Operating Temperature	-20℃~ 70℃
Storage Temperature	-30℃~ 80℃
Backlight Type	56 LEDs
Backlight luminance	300 cd/m(Typ)
Color coordinate	X=0.273±0.03 Y=0.264±0.03

Customization Options

Different colors, different shapes, logo printing, through holes, transparent windows, silk printing, anti-UV ink, colorful OCA, and more.

Product Overview

The T133FH03 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that employs amorphous silicon TFT as a switching device. This 13.3-inch display module consists of a TFT LCD panel, driving IC, backlight, and connector.

Key Features

Full HD resolution (1920×1080 pixels) with 16M color display capability
IPS technology with wide viewing angles (89/89/89/89)
Operating temperature range: -20°C to +70°C
Storage temperature range: -30°C to +80°C
Maximum brightness of 300 cd/m²
EDP interface support
Complies with RoHS & Halogen-free standards

Packing Method

Put module into tray cavity
Tray stacking
Put 1 foam under the tray stack and 1 foam above
Fix the cardboard to the tray stack with adhesive tape
Put the tray stack into carton
Carton sealing with adhesive tape

Frequently Asked Questions

What is the brand name of the TFT LCD Display product?

The brand name of the TFT LCD display products is ESEN.

What is the model number of this TFT LCD Display?

The model number is T133FH03.

Where is this TFT LCD Display manufactured?

This TFT LCD Display is manufactured in China.

What certifications does the T133FH03 TFT LCD Display have?

The T133FH03 TFT LCD Display has CE, ISO9001, RoHS.

What is the minimum order quantity for this product?

The minimum order quantity for the T133FH03 TFT LCD Display is 3 Piece.

How is the TFT LCD Display packaged?

All products are packed securely. Small sizes use tray + carton, while larger sizes use foam slot + carton. Custom packaging is available upon request.

What is the delivery time for the T133FH03 TFT LCD Display?

The delivery time is 5 to 7 days.

What payment terms are accepted for purchasing this TFT LCD Display?

Accepted payment terms are T/T, AliPay, and PayPal.

What is the supply ability for the TFT LCD Display?

The supply ability is 50,000,000 pieces per month.
