2.76'' 2.8'' TFT LCD Display Round IPS 480×480 MIPI Interface ST7701S IPS

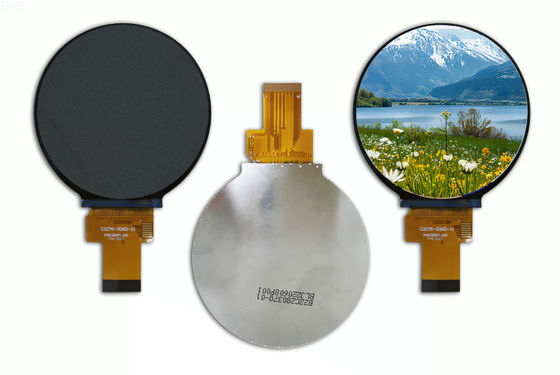

Large Image : 2.76'' 2.8'' TFT LCD Display Round IPS 480×480 MIPI Interface ST7701S IPS

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX028-30MB-A1

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	2.76 Inch	Display Mode:	Normally Black
Resolution:	480(RGB)x480	Pixel Pitch:	0.1497(H) X 0.1462(V)
Pixel Arrangement:	RGB Vertical Stripe	Viewing Direction:	Free
Module Outline Dimension:	73.03 (H)76.48 (V)2.3(D)	LCD AA:	70.128 (H)* 70.128 (V)
Surface Lumiannce:	300/cd	TP VA:	--
Colors:	16.7M	Driver IC:	ST7701SN
Interface:	MIPI/RGB	Backlight:	White LED
Operating Temperature:	-20℃~ +60℃	Storage Temperature:	-30℃~ +80℃
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	2.8'' TFT LCD Display , 2.76'' TFT LCD Display , 480×480 ips tft lcd display

2.76'' 2.8'' TFT LCD Display Round IPS 480×480 MIPI Interface ST7701S IPS

Product Specifications

Attribute	Value
LCD size	2.76 inch
Display Mode	Normally Black
Resolution	480(RGB)x480
Pixel pitch	0.1497(H) x 0.1462(V)
Pixel Arrangement	RGB Vertical Stripe
Viewing direction	Free
Module outline dimension	73.03 (H)76.48 (V)2.3(D)
LCD AA	70.128 (H)* 70.128 (V)
Surface Lumiannce	300/cd
TP VA	--
Colors	16.7M
Driver IC	ST7701SN
Interface	MIPI/RGB
Backlight	White LED
Operating Temperature	-20℃~ +60℃
Storage Temperature	-30℃~ +80℃
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board

Product Overview

The 2.76 Inch TFT LCD display features a round IPS panel with 480×480 resolution and ST7701S driver IC, delivering high-quality visuals for industrial and commercial applications.

Key Features

High Resolution: 480(RGB) x 480 pixels for sharp and vibrant visuals
Compact Size: 2.8-inch display, ideal for compact and portable devices
Wide Viewing Angle: Full 85° viewing angle in all directions (U/D/L/R)
Versatile Interface: Supports RGB 24-bit + 9b_3SPI interface
Durable Performance: Operating temperature range from -30°C to +80°C
Bright & Clear: 300 cd/m² brightness with LED backlight

Pro Tip: Avoid displaying fixed patterns for more than 2 minutes to prevent image sticking. Use a black or moving image as a screen saver for optimal performance!

Technical Specifications

Driver IC: ST7701S
Operating Voltage: VCI 2.8V - 3.6V, IOVCC 2.8V - 3.6V
Storage Temp: -30°C to +80°C
Backlight: 8 white LEDs, 80mA, 3.0V - 3.4V

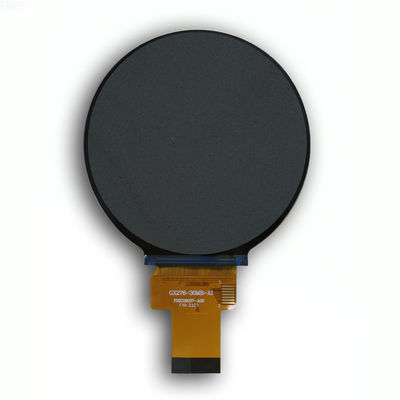

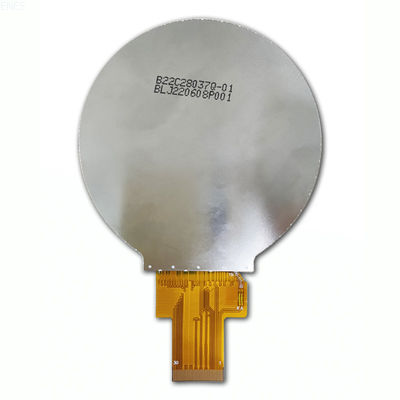

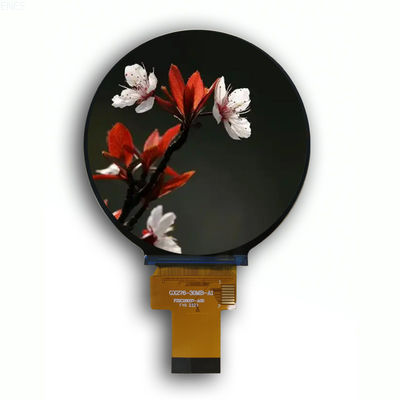

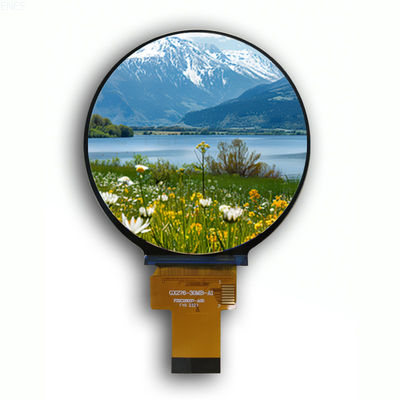

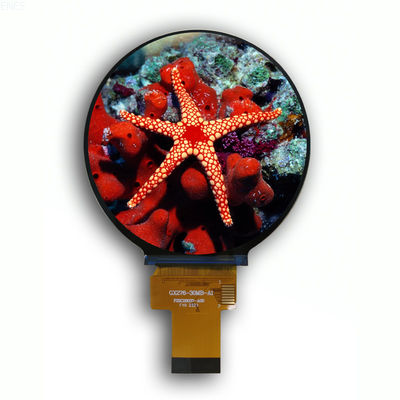

Product Images
