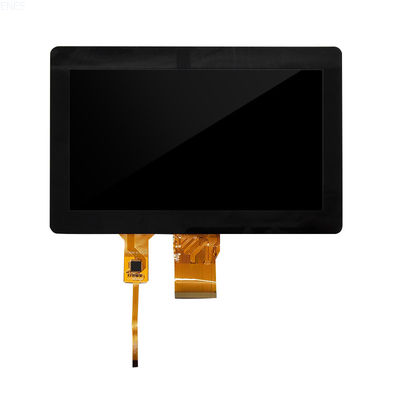

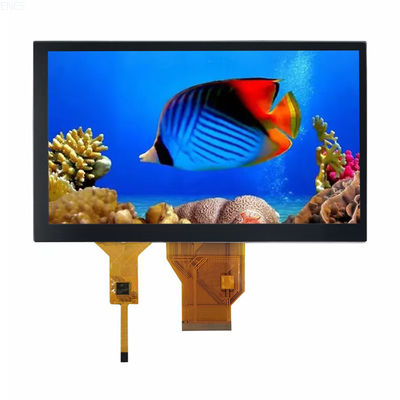

7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor

7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor
7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor
video play

Large Image :  7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX070IPS-2650RB
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: can be negotiated
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 6~14 working days
Payment Terms: L/C,T/T
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
LCD Type: 7 Inch Dimensional Outline: 163.8(W)x97(H)x2.6(D)
Active Area: 154.2144(W)x 85.92(H) Pixel Size: 50.2(W)xRGBx143.2(H)
Resolution: 1024(RGB)x600 Luminance: 300~500cd/m2
Surface Treatment: Glare Display Color: 16M
Viewing Direction: IPS Operating Temperature: -20--+70/-30--+85(℃)
Storage Temperature: -30--+80/-40--+90(℃) Active Area(WxH): Drawing
Backlight: 3*7-LEDs (white) Data Transfer: MIPI
Voltage: 2.8V To 3.3V Interface: I2C/USB
Glass Brand: AGC, Gorilla, BOE, CTC, Inolux, Etc. Touch Structure: G+G, G+F, P+G, G+F+F
Surface Hardness: ≥6H Thickness Of Cover Lens: 0.7, 1.1, 1.8, 2.8, 3.8 Mm
Bonding Methord: Air Bonding (tape Bonding), Optical Bonding (OCA Bonding, OCR Bonding). Special Surface Treatment: AR, AG, AF
Custom Service: FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:

1024 X 600 home ctp

,

Smart home ctp

,

7in tft lcd display

7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor
Product Specifications
Attribute Value
LCD Type 7 inch
Dimensional outline 163.8(W)x97(H)x2.6(D)
Active area 154.2144(W)x 85.92(H)
Pixel size 50.2(W)xRGBx143.2(H)
Resolution 1024(RGB)x600
Luminance 300~500cd/m2
Surface Treatment Glare
Display color 16M
Viewing Direction IPS
Operating temperature -20--+70/-30--+85(℃)
Storage temperature -30--+80/-40--+90(℃)
Backlight 3*7-LEDs (white)
Data Transfer MIPI
Voltage 2.8V to 3.3V
Interface I2C/USB
Glass Brand AGC, Gorilla, BOE, CTC, Inolux, etc.
Touch Structure G+G, G+F, P+G, G+F+F
Surface Hardness ≥6H
Thickness of Cover Lens 0.7, 1.1, 1.8, 2.8, 3.8 mm
Bonding Method air bonding (tape bonding), optical bonding (OCA bonding, OCR bonding)
Special Surface Treatment AR, AG, AF
Custom Service FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Product Overview

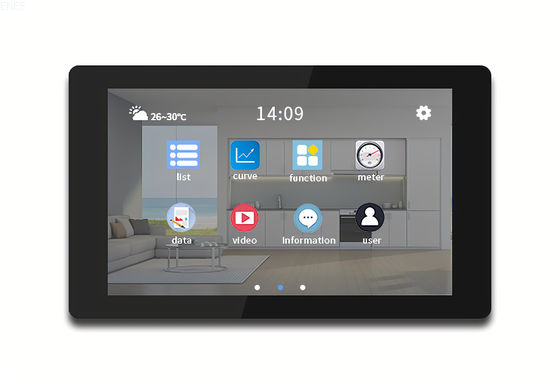

This 7-inch IPS LCD touchscreen is designed for smart home applications and car navigation systems. Featuring 1024×600 resolution and IPS technology, it provides wide viewing angles and excellent visibility from any position. The MIPI interface ensures high-speed data transfer, while USB and I2C interfaces offer stable communication and easy connectivity with external devices.

7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor 0 7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor 1 7 Inch IPS 1024 X 600 Smart Home CTP MIPI Interface For Car Navigation Monitor 2
Shipping & Packaging
  • Payment terms: T/T, PayPal
  • Shipping methods: UPS, EMS, DHL, TNT, FedEx, or by air
  • Delivery time: 7-10 days for samples, 3-4 weeks for mass production
  • Packaging: Anti-static bags with foam box for safe transportation
Frequently Asked Questions
What are your order requirements?

Small MOQ accepted. We offer competitive pricing and short lead times.

What quality certifications do you have?

ISO9001 and RoHS certified factory with professional technicians and QC team testing all products before shipment.

Do you offer customization services?

Yes, we provide comprehensive customization including FPC, CTP, RTP, pin definition, packing, and HD-MI board options.

What is your warranty policy?

Standard 1-year warranty, excluding damage caused by improper handling.
