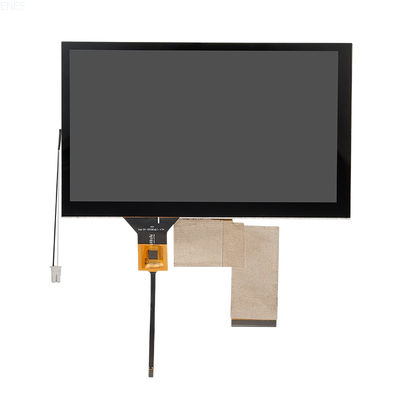

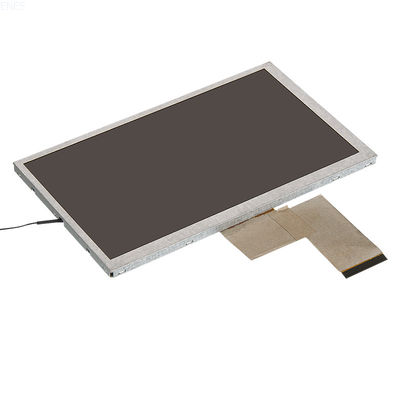

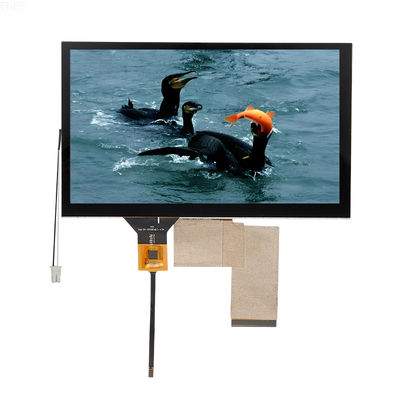

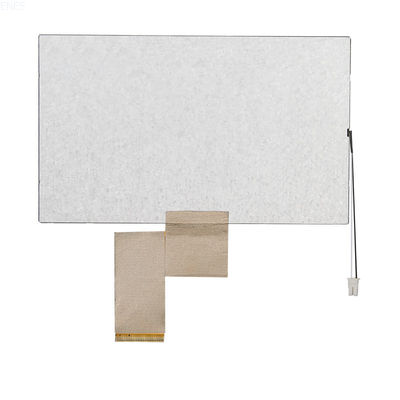

8 Inch LCD screen 800×480 60PIN RGB interface with capacitive touch TFT LCD LCD assembly LCM
It comes with lots of features with a 8-inch in-car display. 800×480 guiding lights that can display large driving and entertainment information. Color processing on this device is handled properly, providing a vibrant picture thanks to its RGB interface. 12H type TN TFT LCD display, fast response speed, suitable for dynamic screen display. The RTP is an easy to use panel which is sensitive to touch that is suitable for the driver helping to achieve an intuitive interaction for vehicle system as well as multimedia functions.
|
No.
|
Symbol
|
Description
|
|
1
|
GND
|
Power ground
|
|
2
|
AVDD
|
Power for Analog circuit
|
|
3
|
VCC
|
Power for Digital circuit
|
|
4
|
R0
|
Red data
|
|
5
|
R1
|
Red data
|
|
6
|
R2
|
Red data
|
|
7
|
R3
|
Red data
|
|
8
|
R4
|
Red data
|
|
9
|
R5
|
Red data
|
|
10
|
R6
|
Red data
|
|
11
|
R7
|
Red data
|
|
12
|
G0
|
Green data
|
|
13
|
G1
|
Green data
|
|
14
|
G2
|
Green data
|
|
15
|
G3
|
Green data
|
|
16
|
G4
|
Green data
|
|
17
|
G5
|
Green data
|
|
18
|
G6
|
Green data
|
|
19
|
G7
|
Green data
|
|
20
|
B0
|
Blue data
|
|
21
|
B1
|
Blue data
|
|
22
|
B2
|
Blue data
|
|
23
|
B3
|
Blue data
|
|
24
|
B4
|
Blue data
|
|
25
|
B5
|
Blue data
|
|
26
|
B6
|
Blue data
|
|
27
|
B7
|
Blue data
|
|
28
|
DCLK
|
Sample clock
|
|
29
|
DE
|
Data Input Enable
|
|
30
|
HS
|
Horizontal Sync Input
|
|
31
|
VS
|
Vertical Sync Input
|
|
32
|
MODE
|
DE/SYNC mode select (Note3)
|
|
33
|
RESET
|
Global reset pin.( Note1)
|
|
34
|
STBYB
|
STBYB=0 timing controlsruce
|
|
35
|
SHLR
|
Right/ left selection
|
|
36
|
VCC
|
Power ground
|
|
37
|
UPDN
|
Up/down selection
|
|
38
|
GND
|
Power ground
|
|
39
|
GND
|
Power ground
|
|
40
|
AVDD
|
Power for Analog circuit
|
|
41
|
VCOM
|
Common voltage
|
|
42
|
DITH
|
Dithering function
|
|
43~55
|
NC
|
No connection
|
|
56
|
VGH
|
Gate ON voltage
|
|
57
|
VCC
|
Power for Digital circuit
|
|
58
|
VGL
|
Gate OFF voltage
|
|
59
|
GND
|
Power ground
|
|
60
|
NC
|
No connection
|
Applications:
This LCD Display Module is suitable for a wide range of applications and scenarios. Its sunlight readable lcd display feature makes it perfect for outdoor use, where it can withstand bright sunlight and still display clear images. It is ideal for use in industrial control systems, medical equipment, and transportation systems.
The Liquid Crystal Display Panel can be used in advertising display screens, gaming machines, and vending machines. It is also perfect for use in digital signage, where it can display clear and bright images in various lighting conditions.
The LCD Display Module can be used in retail stores, where it can be used to display prices and promotions. It is also suitable for use in museums and art galleries, where it can display information about exhibits and artwork.
Overall, Chenghao Optoelectronic's LCD Display Module is a versatile and high-quality product that can be used in a wide range of applications and scenarios. Its sunlight readable lcd display feature, along with its other impressive attributes, makes it a popular choice among customers.
FAQ
Q1. Where is this LCD display module manufactured?
A1. This LCD display module is manufactured in Shenzhen, China.
Q2. Does this LCD display module have any certifications?
A2. Yes, this LCD display module has CE, RoHS and FCC certifications.
Q3. What is the minimum order quantity for this LCD display module?
A3. The minimum order quantity for this LCD display module is 100 units.
Q4. How is this LCD display module packaged?
A4. All products are packaged in the correct way to ensure safety. For small-sized products, we use pallets + cartons, and for larger-sized products, we use foam trays + cartons. We can also design packaging according to customer requirements.
Q5. What is the delivery time for this LCD display module?
A5. The delivery time for this LCD display module is 3 to 7 days.
Q6. What is the payment method for this LCD display module?
A6. The payment method for this LCD display module is TT or other.
Q7. What is the supply capacity of this LCD display module?
A7. The supply capacity of this LCD display module is 50 million units per month.
