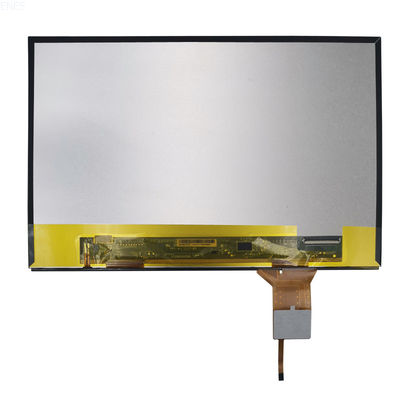

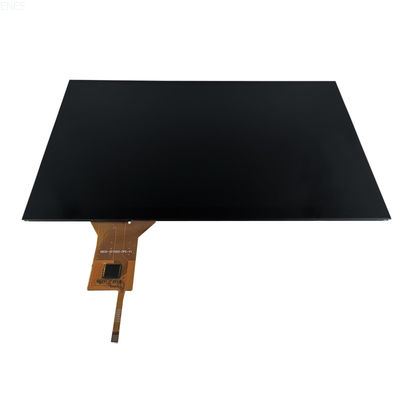

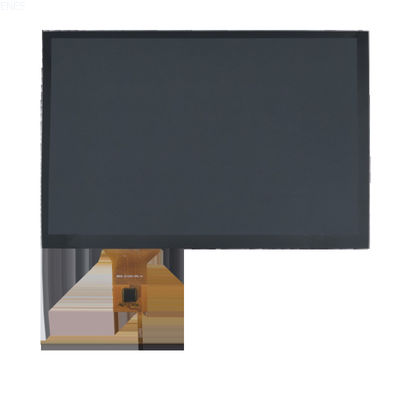

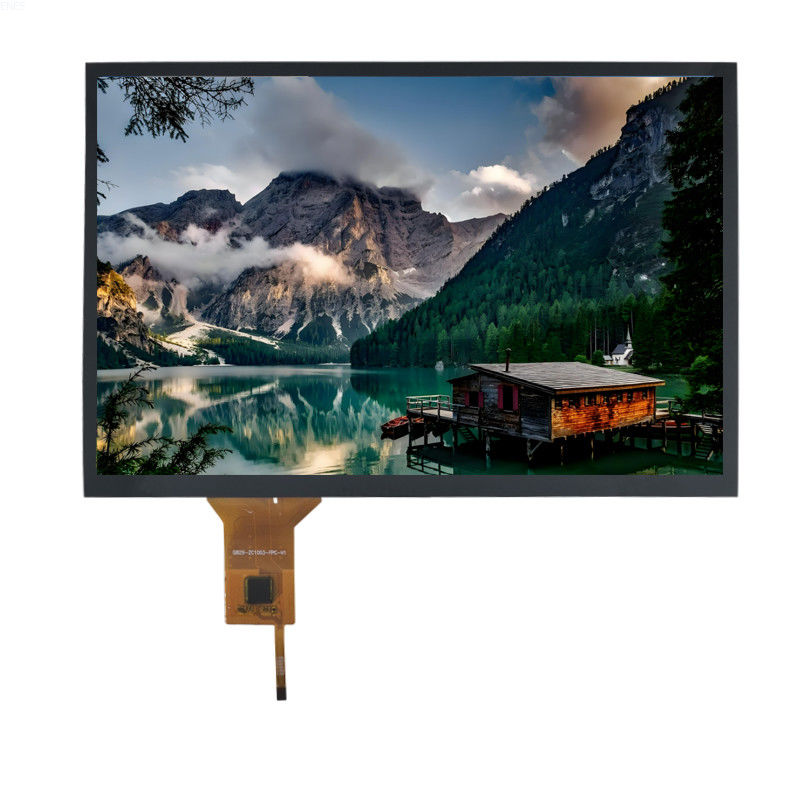

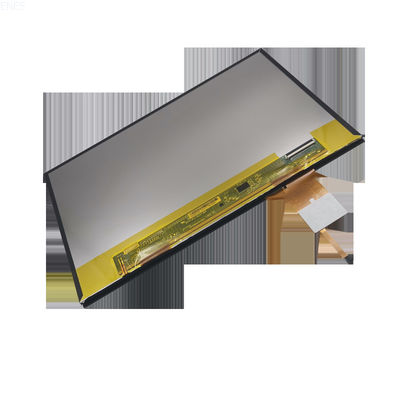

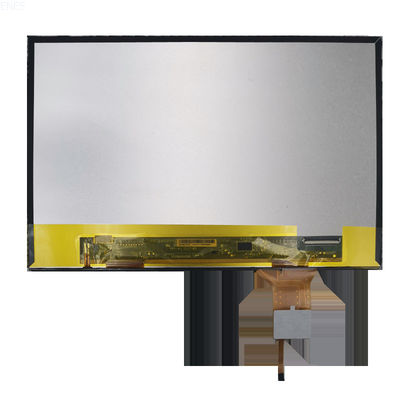

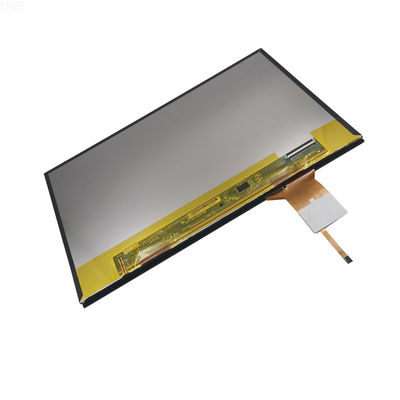

10.1'' IPS LVDS TFT LCD 1280x800 Sunlight Readable Capacitive Touch Screen

Large Image : 10.1'' IPS LVDS TFT LCD 1280x800 Sunlight Readable Capacitive Touch Screen

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T101WX09H-CT

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	10.1TFT	Number OfDots:	1280(horizontal)*800(Vertical)
Interface:	LVDS 8bit	Connect Type:	Connector
Color Depth:	16.7M	Technology Type:	A-Si
Display Spec. Pixel Pitch (mm):	TBD	Luminance:	1000/cd
Pixel Configuration:	R.G.B.-Stripe	Display Mode:	TBD
Surface Treatment:	HC	Viewing Direction:	Full View
Gray Scale Direction:	Free	LCM (W X H X D) (mm):	229.06148.72.65
Active Area(mm):	216.96x 135.6	With /Without TSP:	Without TSP
LED Numbers:	39LEDs	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	IPS LVDS TFT LCD , 10.1'' LVDS TFT LCD , Readable capacitive touch screen

10.1'' IPS LVDS TFT LCD 1280x800 Sunlight Readable Capacitive Touch Screen

Product Specifications

Attribute	Value
Size	10.1TFT
Number Of Dots	1280 (horizontal) × 800 (vertical)
Interface	LVDS 8bit
Connect type	Connector
Color Depth	16.7M
Technology type	a-Si
Luminance	1000 cd/m²
Pixel Configuration	R.G.B.-Stripe
Surface Treatment	HC
Viewing Direction	Full View
LCM Dimensions (W × H × D)	229.06 × 148.7 × 2.65 mm
Active Area	216.96 × 135.6 mm
Touch Screen	Without TSP
LED Numbers	39 LEDs

Product Description

10.1 inch 1280×800 Resolution Sunlight Readable IPS LVDS TFT LCD Capacitive Touch Screen

This high-performance display features a 10.1-inch IPS panel with 1280×800 resolution, offering excellent sunlight readability and wide viewing angles. The LVDS interface ensures reliable data transmission for industrial applications.

Pin Configuration

No.	Symbol	Description
1	VCOM	Common Voltage
2	VDD	Power Voltage for digital circuit
3	VDD	Power Voltage for digital circuit
4	NC	No connection
5	NC	No connection
6	NC	No connection
7	GND	Ground
8	RXIN0-	-LVDS differential data input
9	RXIN0+	+LVDS differential data input
10	GND	Ground
11	RXIN1-	-LVDS differential data input
12	RXIN1+	+LVDS differential data input

Customization Options

We offer comprehensive customization services including:

FPC customization
Capacitive touch panel (CTP) integration
Resistive touch panel (RTP) integration
Pin definition modification
Custom packing solutions
HDMI board integration

Dimensions, interfaces and other specifications can be customized to meet your specific requirements. Contact us to discuss your project needs.
