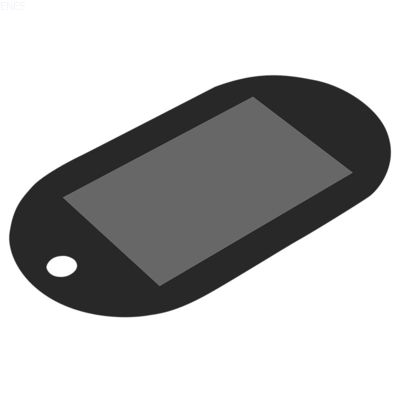

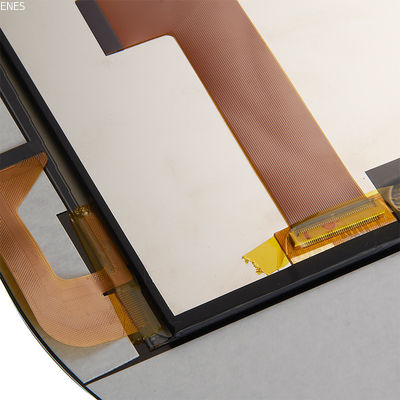

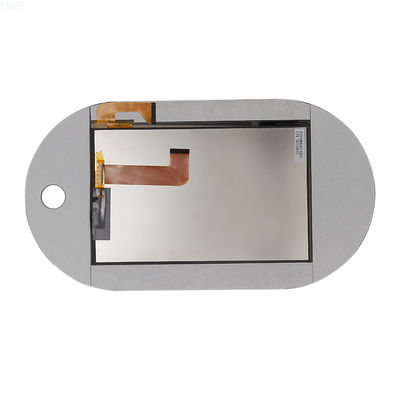

10.1 Inch TFT LCD Display Module with 1200*1920 dots Resolution, with 40 pins , MIPI interface LCM Capacitive touch
This 10.1-inch display screen brings a refined visual experience with a high resolution of 1200×1920. Vehicle information and multimedia content are displayed in every detail. The LVDS interface achieves high-speed and stable data transmission, and in combination with the OTA7290B driver chip, the screen has a high refresh rate and smooth display. The TFT LCD screen based on IPS technology has a wide viewing angle and accurate color reproduction, creating an immersive and clear intuitive in-car display effect for the driver.
Applications:
Digital products, POS machine, instrument and meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances
Packing
Input/OutputTerminals
|
No.
|
Symbol
|
Description
|
|
1
|
GND
|
Ground
|
|
2-4
|
LEDK
|
BACKLIGHT CATHODE
|
|
5
|
NC
|
NC
|
|
6-8
|
LEDA
|
BACKLIGHT ANODE
|
|
9
|
NC
|
NC
|
|
10
|
TP-VDD
|
TP POWER SUPPLY
|
|
11
|
TP-RET
|
TP Reset pin for
|
|
12
|
TP-INT
|
TP Communication interrupt for
|
|
13
|
TP-SDA
|
TP SPI data input
|
|
14
|
TP-SCL
|
TP SPI clock
|
|
15
|
GND
|
Ground
|
|
16-17
|
NC
|
NC
|
|
18-20
|
VDD3.3V
|
POWER SUPPLY
|
|
21
|
GND
|
Ground
|
|
22
|
D0P
|
MIPI DSI differential clock pair
|
|
23
|
D0N
|
MIPI DSI differential clock pair
|
|
24
|
GND
|
Ground
|
|
25
|
D1P
|
MIPI DSI differential clock pair
|
|
26
|
D1N
|
MIPI DSI differential clock pair
|
|
27
|
GND
|
Ground
|
|
28
|
CLKP
|
MIPI DSI differential clock pair
|
|
29
|
CLKN
|
MIPI DSI differential clock pair
|
|
30
|
GND
|
Ground
|
|
31
|
D2P
|
MIPI DSI differential clock pair
|
|
32
|
D2N
|
MIPI DSI differential clock pair
|
|
33
|
GND
|
Ground
|
|
34
|
D3P
|
MIPI DSI differential clock pair
|
|
35
|
D3N
|
MIPI DSI differential clock pair
|
|
36
|
GND
|
Ground
|
|
37
|
BIST-NC
|
NC
|
|
38
|
RESET
|
Reset pin
|
|
39
|
LCD-ID0
|
LCD_ID CIRCUIT
|
|
40
|
LCD-ID1
|
LCD_ID CIRCUIT
|
|
41-44
|
NC
|
NC
|
|
45
|
GND
|
Ground
|
Driving Backlight
|
LED current
|
IF
|
60
|
80
|
100
|
mA
|
Note 1
Note 2,3
|
|
LED Voltage
|
VF
|
22.4
|
24
|
25.6
|
V
|
|
|
Power Consumption
|
|
|
1.920
|
|
mW
|
|
|
LED Life Time
|
WBL
|
35000
|
-
|
-
|
Hr
|
|
Environmental / Reliability Tests
|
No
|
Test Item
|
Condition
|
Remarks
|
|
1
|
High Temperature
Opeartion
|
Ts= +50℃, 240hrs
|
Note 1
IEC60068-2-2, GB2423. 2-89
|
|
2
|
Low Temperature
Opeartion
|
Ta= -10℃, 240hrs
|
Note 2 IEC60068-2-1
GB2423.1-89
|
|
3
|
High Temperature
Storage
|
Ta= +60℃, 240hrs
|
IEC60068-2-2
GB2423. 2-89
|
|
4
|
Low Temperature
Storage
|
Ta= -20℃, 240hrs
|
IEC60068-2-1
GB/T2423.1-89
|
|
5
|
High Temperature &
Humidity Storage
|
Ta= +60℃, 90% RH max, 160 hours
|
IEC60068-2-3
GB/T2423.3-2006
|
|
6
|
Thermal Shock
(Non-operation)
|
-20℃ 30 min ~ +60℃ 30 min
Change time: 5min, 30 Cycle
|
Start with cold temperature,end with high temperature
IEC60068-2-14, GB2423.22-87
|
|
7
|
Electro Static Discharge
(Opeartion)
|
C=150pF, R=330 Ω, 5 points/panel
Air:±8KV, 5 times; Contact: ±4KV, 5 times; (Environment: 15℃ ~
35℃, 30% ~ 60%, 86Kpa ~ 106Kpa)
|
IEC61000-4-2
GB/T17626.2-1998
|
|
8
|
Vibration (Non-operation)
|
Frequency range: 10~55Hz, Stroke:
1.mm Sweep: 10Hz~55Hz~10Hz
2 hours for each direction of X .Y. Z.
(package condition)
|
IEC60068-2-6
GB/T2423.5-1995
|
|
9
|
Shock (Non-operation)
|
60G 6ms, ± X, ±Y , ± Z
3 times for each direction
|
IEC60068-2-27
GB/T2423.5-1995
|
|
10
|
Package Drop Test
|
Height: 80 cm, 1 corner, 3 edges,
6 surfaces
|
IEC60068-2-32
GB/T2423.8-1995
|
