Sunlight Readable IPS PCAP Touch Panel TFT LCD Capacitive LCM 1280 X 800 10.1in

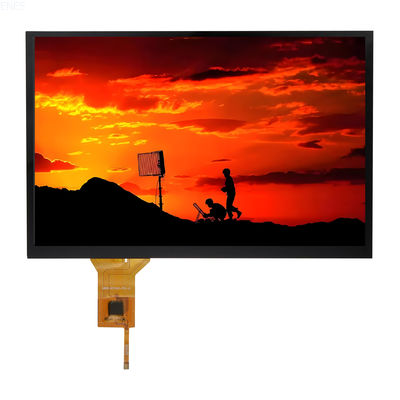

Large Image : Sunlight Readable IPS PCAP Touch Panel TFT LCD Capacitive LCM 1280 X 800 10.1in

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T101WX14-CT

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	10.1TFT	Number OfDots:	1280* RGB * 720
LCM Dimension:	162.8（W）* 254.80（H） * 9.05(T)	Luminance:	700cd/m2
Storage Temperature:	-40--+85(℃)	Operating Temperature:	-30--+80(℃)
LCD Active Area:	125.82* 223.68	LCD Type:	A-Si TFT
Viewing Direction:	ALL	Driver IC:	-
Interface Type:	LVDS	Backlight Type:	40 LEDs
With/Without CTP:	With CTP	CTP Driver IC:	GA6572
CTP Interface:	I2C	CTP Structure:	G+G+LCM(LOCA Bonding)
Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	IPS PCAP Touch Panel , TFT PCAP Touch Panel , 1280 X 800 capacitive screen

Sunlight Readable IPS PCAP Touch Panel TFT LCD Capacitive LCM 1280 X 800 10.1in

Key Features

10.1-inch IPS TFT LCD with 1280×800 resolution
Sunlight readable display with 700cd/m² luminance
Projected capacitive touch (PCAP) with I2C interface
Wide operating temperature range (-30°C to +80°C)
All viewing direction capability
LVDS interface with 40 LED backlight
G+G+LCM structure with LOCA bonding

Technical Specifications

Display Size

10.1-inch TFT

Resolution

1280 × RGB × 720

Active Area

125.82 × 223.68 mm

Brightness

700 cd/m²

LCD Type

a-Si TFT

Viewing Angle

All directions

Interface

Touch Panel

Capacitive (PCAP)

Touch Interface

Operating Temperature

-30°C to +80°C

Storage Temperature

-40°C to +85°C

Product Description

The 10.1-inch PCAP TFT LCD capacitive touch screen with IPS technology delivers high-quality, detailed images with excellent visibility in bright sunlight conditions. Its IPS panel provides wide viewing angles and vibrant color reproduction, while the high-precision capacitive touch ensures responsive interaction.

This sunlight-readable display is ideal for outdoor applications, industrial control systems, intelligent conference panels, and other environments requiring reliable performance in challenging lighting conditions. The G+G+LCM structure with LOCA bonding provides durability and optical clarity.

Pin Configuration

NO.	Symbol	Description
1	NC	NC
2-3	VDD	POWER SUPPLY
4	NC	NC
5	RESET	Reset pin
6	STBYB	Standby mode Normally pulled high STBYB=1,normal operation STBYB=0,timing contrller,source Driver will turn off,all output are High-Z
7	GND	Ground
8	IN0-	LVDS DSI differential clock pair
9	IN0+	LVDS DSI differential clock pair
10	GND	Ground
11	IN1-	LVDS DSI differential clock pair
12	IN1+	LVDS DSI differential clock pair

Customization Options

FPC customization
Capacitive touch panel (CTP) options
Resistive touch panel (RTP) options
Custom pin definitions
Special packing requirements
HD-MI board integration
