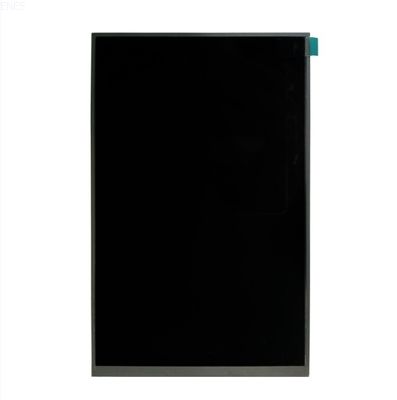

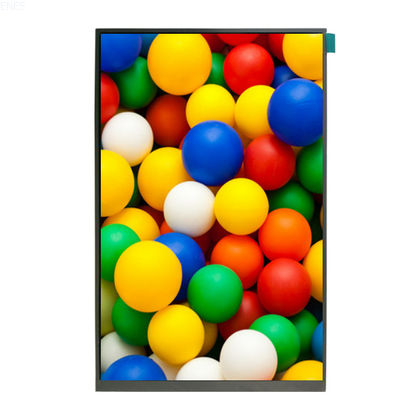

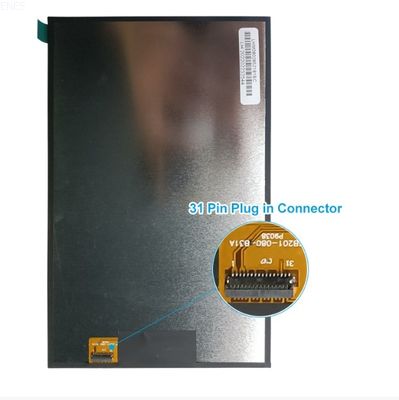

4 Lanes 800x1280 IPS MIPI Vertical TFT LCD Module Display 31 Pin ILI9881C 8''

Large Image : 4 Lanes 800x1280 IPS MIPI Vertical TFT LCD Module Display 31 Pin ILI9881C 8''

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX080HD-30MB-A

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Type:	8 Inch	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Recommended Viewing Direction:	Free	LCD Dot Arrangement:	800(R.G.B)*1280
Module Size (WHT):	114.6184.12.74+/-0.15mm	Active Area (W*H):	107.64*172.22mm
Item Content LCD Type:262K TFT TRANSMISSIVE 262K TFT TRANSMISSIVE Diagonal Length 8.0 Inch Recommend:	0.134.55(H) × 0.134.55 (V)mm	Backlight Type LED:	LED(white 21LED),IF=140mA,VF=7.8V~10.2V
Drive IC:	ILI9881C	Interface Type:	MIPI Interface
Display Mode:	16.7M TFT/Transmissive, Normally Black	Viewing Angle:	ALL
0perating Temp:	-10°C~+50°C	Storage Temp:	-20°C~+60°C
LCM Brightness:	250cd/m2(typ)
Highlight:	800x1280 tft lcd module display , Vertical tft lcd module display , 8'' display lcd tft

4 Lanes 800x1280 IPS MIPI Vertical TFT LCD Module Display 31 Pin ILI9881C 8''

Product Specifications

Attribute	Value
LCD Type	8 inch
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Recommended Viewing Direction	Free
LCD Dot arrangement	800(R.G.B)*1280
Module size (WHT)	114.6184.12.74+/-0.15mm
Active area (W*H)	107.64*172.22mm
Backlight Type	LED(white 21LED),IF=140mA,VF=7.8V~10.2V
Drive IC	ILI9881C
Interface Type	MIPI interface
Display mode	16.7M TFT/Transmissive, Normally Black
Viewing angle	ALL
Operating temp	-10°C~+50°C
Storage temp	-20°C~+60°C
LCM brightness	250cd/m2(typ)

Product Overview

The TX080HD-30MB-A is a high-performance 8.0-inch TFT LCD display module featuring an 800x1280 IPS panel with MIPI interface. This vertical display solution offers exceptional image quality with wide viewing angles and high brightness, making it ideal for industrial and commercial applications.

Key Features

High-resolution 800x1280 IPS display with excellent color reproduction
MIPI interface with 4 lanes for fast data transmission
Wide operating temperature range (-10°C to +50°C)
LED backlight with 250cd/m² brightness
ILI9881C driver IC for reliable performance
Multiple customization options available

Frequently Asked Questions

What is your company's experience and reputation in the industry?

Our company has 11 years of industry experience with a strong reputation for delivering high-quality products and excellent customer service to clients across various industries.

Are there any certifications or standards that the product meets?

Yes, our product meets ISO9001 quality standards and RoHS environmental certification requirements.

What is the process for placing an order?

After sample approval, submit your official purchase order via email or fax. We require: product information (quantity and part numbers), delivery schedule preferences, logistics details (company information and destination port), and any freight forwarder contacts in China.
