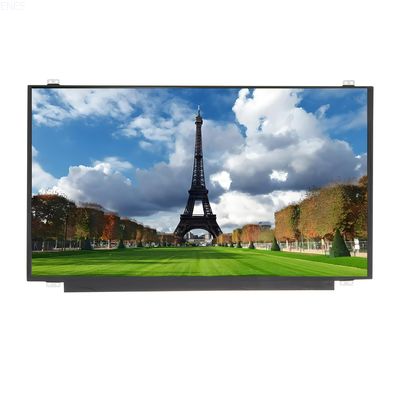

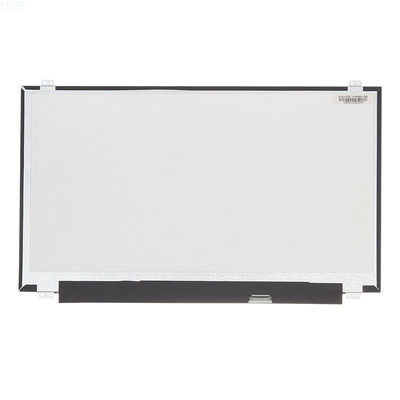

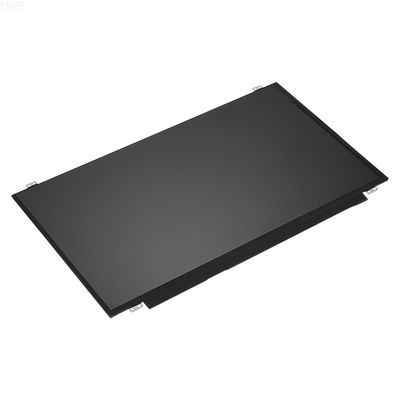

1920x1080 IPS TFT EDP 15.6'' LCD Monitor Module For TV Car Medical GPS

Large Image : 1920x1080 IPS TFT EDP 15.6'' LCD Monitor Module For TV Car Medical GPS

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T156FHND0-R0

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Size:	15.6 Inch	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Active Area:	344.16 (H) X 193.59 (V)	Pixels H X V:	1,920 X 1,080
Pixel Pitch:	0.179 (H) × 0.179 (V)	Pixel Arrangement:	R.G.B. Vertical Stripe
Display Mode:	Normally Black	Contrast Ratio:	1000
White Luminance:	220 Cd/ M 2 (Typ.)	Response Time:	25
View Angle(L/R/U/D):	89/89/89/89	Input Voltage:	+3.3 ( Logic ) / +12V ( Backlight )
Outline Dimension:	359.5(H) X 223.75(V) X 3.1(D)	Electrical Interface (Logic):	EDP 1.2
Support Color:	262K	Optimum Viewing Direction:	ALL
Highlight:	15.6'' LCD Monitor Module , 1920x1080 LCD Monitor Module , GPS colour tft display

1920x1080 IPS TFT EDP 15.6" LCD Monitor Module For TV Car Medical GPS

Product Specifications

Attribute	Value
LCD Size	15.6 inch
Custom Service	FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board
Active Area	344.16 (H) x 193.59 (V)
Pixels H x V	1,920 x 1,080
Pixel Pitch	0.179 (H) × 0.179 (V)
Pixel Arrangement	R.G.B. Vertical Stripe
Display Mode	Normally Black
Contrast Ratio	1000
White Luminance	220 cd/m² (Typ.)
Response Time	25
View Angle(L/R/U/D)	89/89/89/89
Input Voltage	+3.3 (Logic) / +12V (Backlight)
Outline Dimension	359.5(H) x 223.75(V) x 3.1(D)

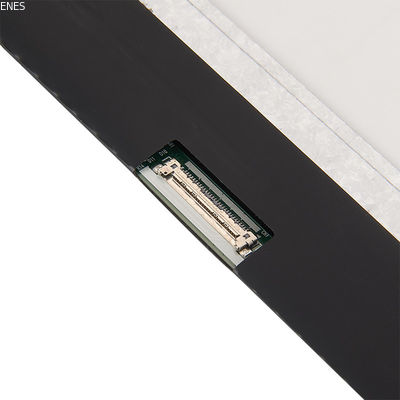

Electrical Interface (Logic)	eDP 1.2
Support Color	262K
Optimum Viewing Direction	ALL

Product Description

15.6 Inch 1920x1080 IPS TFT LCD Screen EDP 15.6inch LCD Monitor Module for TV Car Medical GPS LCD Display Panel

Personalized customization available including appearance, wide temperature screen, high brightness screen, high resolution, wide voltage, etc. OEM/ODM services supported.

Cold rolled sheet metal material for strong, shockproof casing with anti-interference properties
Supports wall-mounted, desktop, and embedded installation options
Industrial-grade high-brightness display for extended lifespan
Natural heat dissipation through industrial design

Frequently Asked Questions

What kinds of display does TSD have?

TSD specializes in manufacturing TFT LCD displays, Monochrome LCD displays, Touch Screens, customized LCD panels, COB and COG displays.

How can I find the right product?

Please send us your requirements or datasheet. We will recommend our standard products, or make necessary adjustments for customization.

Do you accept sample order or small quantity order?

Yes, sample orders for testing and small quantity pilot production orders (no less than MOQ) are accepted.

What are the payment terms?

We usually accept T/T, Paypal, with other terms negotiable.

What's the lead time?

Typically 3-5 days for sample orders if in stock, and 4-5 weeks for mass production (depending on quantity and product specifics).

Important Handling Instructions

Since LCM has been assembled and adjusted with high precision, avoid excessive shocks or modifications.

Do not alter the shape of the tab on the metal frame.

Do not make extra holes on the PCB or modify component positions.

Do not damage or modify the pattern writing on the PCB.

Do not modify the zebra rubber strip or heat seal connector.

Except for interface soldering, no other modifications with a soldering iron.

Do not drop, bend or twist the LCM.
