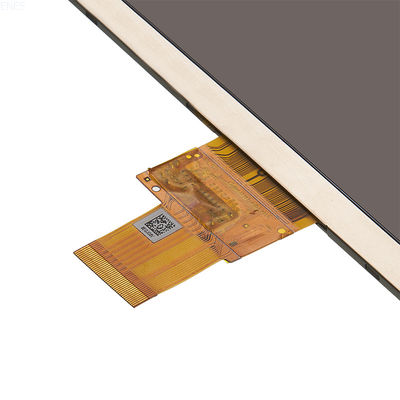

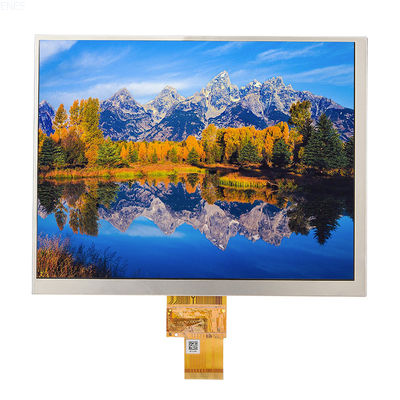

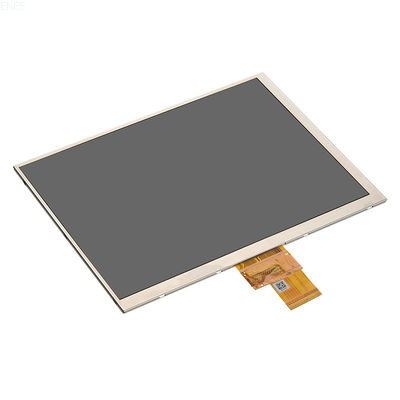

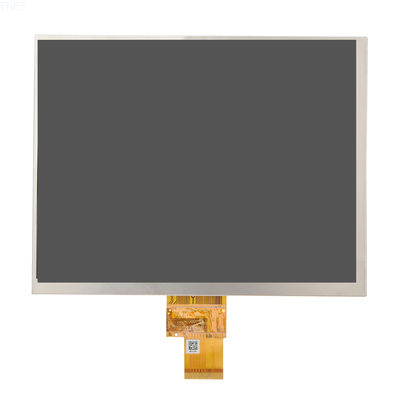

LCD 8 Inch TFT Display 1024×768 LVDS Interface TFT Color Screen TFT LCD Module

Large Image : LCD 8 Inch TFT Display 1024×768 LVDS Interface TFT Color Screen TFT LCD Module

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	T080IWX40I3508

Payment & Shipping Terms:

Minimum Order Quantity:	No MOQ
Price:	can be negotiated
Packaging Details:	Cartons, Capboard, EPE, Blister Tray.
Delivery Time:	6~14 working days
Payment Terms:	L/C,T/T
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

LCD Type:	8 Inch	Resolution:	1024(horizontal)*768(Vertical)
Glass Maker:	Innolux	Interface:	40PIN LVDS
Connect Type:	Connector	Color Depth:	16.7M
Technology Type:	A-Si	Pixel Pitch(mm):	0.1583*0.1583
Pixel Configuration:	R.G.B. Stripe	Display Mode:	Normally Black
Viewing Direction:	ALL	LCM (Wx H X D)(mm):	1741362.5
Active Area(mm):	162.05*121.54	LED Numbers:	30LEDS
Luminance:	400cd/m2	Storage Temperature:	-30--+80(℃)
Operating Temperature:	-20--+70(℃)	Custom Service:	FPC, CTP (capacitive Touch Panel), RTP (resistive Touch Panel), Pin Definition, Packing, HD-MI Board
Highlight:	LCD 8 inch tft display , 1024×768 8 inch tft display , 16.7M tft lcd module

LCD 8 Inch TFT Display 1024×768 LVDS Interface TFT Color Screen TFT LCD Module

Product Specifications

Attribute	Value
LCD Type	8 inch
Resolution	1024(horizontal)×768(Vertical)
Glass Maker	Innolux
Interface	40PIN LVDS
Connect type	Connector
Color Depth	16.7M
Technology type	a-Si
Pixel pitch(mm)	0.1583×0.1583
Pixel Configuration	R.G.B. Stripe
Display Mode	Normally Black
Viewing Direction	ALL

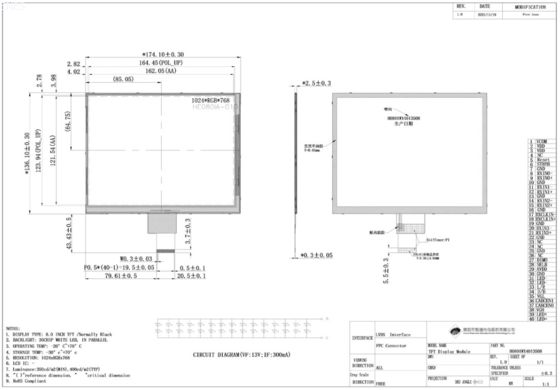

LCM (W×H×D)(mm)	174×136×2.5
Active Area(mm)	162.05×121.54
LED Numbers	30LEDS
Luminance	400cd/m²
Storage temperature	-30~+80(℃)
Operating temperature	-20~+70(℃)

Product Description

8 inch TFT LCD screen with 1024×768 resolution and LVDS interface. This high-quality color display module features customizable dimensions, interfaces, and specifications. Available with optional power capacity touch or resistance touch capabilities.

Pin Configuration

No	Symbol	Description
1	VCOM	Common voltage
2	VDD	3.3V Power
3	VDD	3.3V Power
4	NC	Not connect
5	RESET	Global reset pin Active low enter reset state Suggest to connecting with an RC reset Normally pull high(R=100K,C=1UF)
6	STBYB	Standby mode, normally pull high STBYB="1",timing control ,source driver will turn off, all output are high-Z
7	GND	System Ground
8	RXIN0-	Negative LVDS differential data input
9	RXIN0+	Positive LVDS differential data input
10	GND	System Ground
