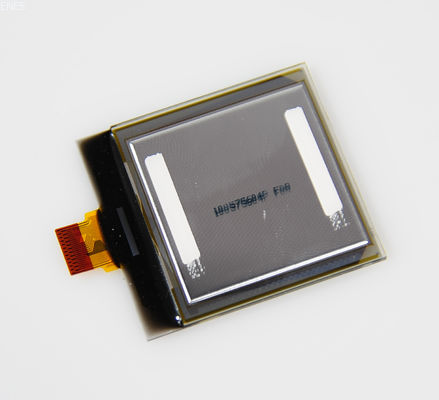

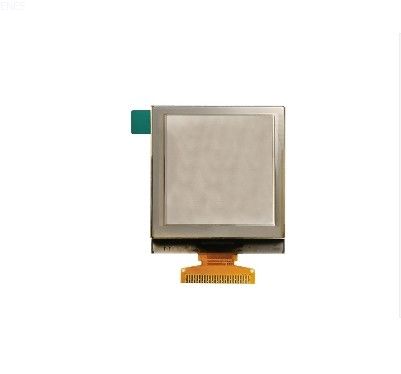

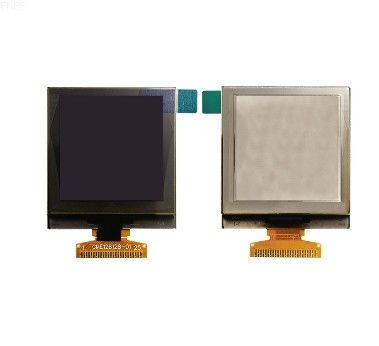

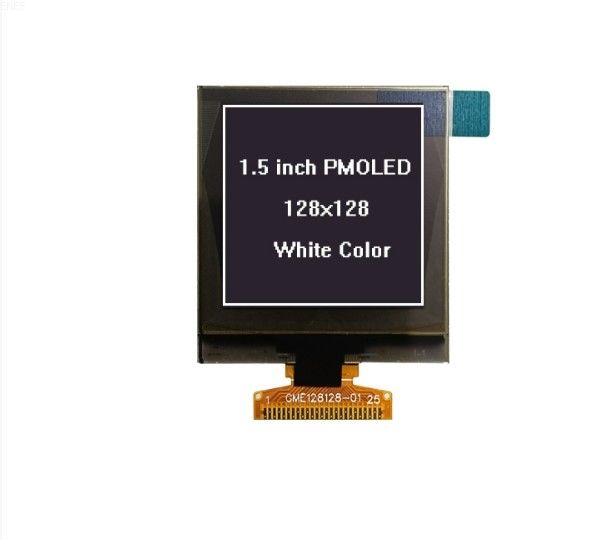

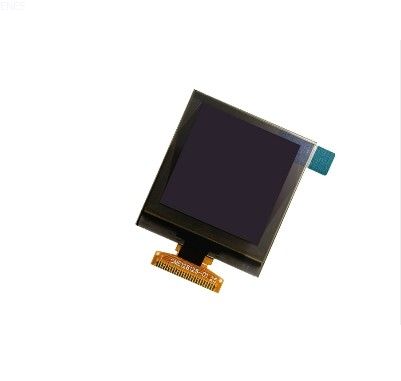

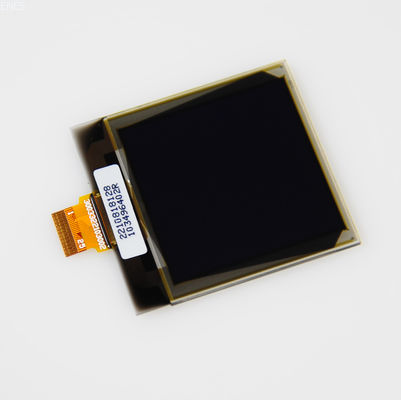

128x128 1.5'' Small Square White Mono OLED Display 25Pin SSD1107 Monochrome PMOLED

Large Image : 128x128 1.5'' Small Square White Mono OLED Display 25Pin SSD1107 Monochrome PMOLED

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	ESEN
Certification:	ISO9001/ISO14001
Model Number:	TX150PM2828KSWKG01

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Please make an enquiry
Packaging Details:	All the products are packed in right way
Delivery Time:	2-4 weeks
Payment Terms:	T/T,L/C
Supply Ability:	300K/mth

Contact Now

Detailed Product Description

Size:	1.32 Inch	Display Mode::	Passive Matrix
Display Color:	Monochrome (White)	Drive Duty:	1/128 Duty
Outline Drawing:	According To The Annexed Outline Drawing	Number Of Pixels:	128 X 128
Panel Size:	33.9 X 37.3 X 1.44(mm)	Active Area:	26.855 X26.855(mm)
Pixel Pitch:	0.21 X 0.21(mm)	Pixel Size:	0.185 X 0.185 (mm)
Driver IC:	SH1107	FPC Number:	NFP1107-26
Interface:	8-bit 68XX80XX Parallel, 4-Wire SPl, 12C	FPC Connecting Mode:	25 Pin Soldering FPC
Luminance:	100cd/m2
Highlight:	1.5'' mono oled display , 128x128 mono oled display , 25Pin mono oled

1.5 Inch 128x128 Small Square White Color Mono OLED Display 25Pin SSD1107 Monochrome PMOLED Screen LCD Module OLED Panel

X150-2828KSWKG01-H25 Folding Type OEL Display Module Pixel Number: 128 x 128, Monochrome, COG Package.

Recommended Components:

C1: 0.1μF / 6.3V, X5R

C2: 4.7μF / 6.3V, X5R

C3: 4.7Uf/35v

C4: 4.7μF / 35V, X7R

C5: 0.1μF / 35V, X7R R3: 910KΩ, R3 = (Voltage at IREF - VSS) / IREF R1, R2: 47kΩ

Q1: FDN338P

Q2: FDN335N

Notes:

VDD: 1.65~3.5V, it should be equal to MPU I/O voltage.

VCC IN: 11.5~12.5V .

Special Tips:When design main board, Please add Electronic Switch circuit, otherwise, will be caused leak current.

128x128 1.5'' Small Square White Mono OLED Display 25Pin SSD1107 Monochrome PMOLED 0

Active Area / Memory Mapping & Pixel Construction

Mechanical Drawing

Pin Definition

FAQ:

Q: What is the operating temperature range of this product?
A: The operating temperature range of this display module is -20 to +70 degrees Celsius, and it can operate stably under a variety of environmental conditions.

Q: If there is a problem with the product, what is the after-sales service like?
A: If customers encounter any technical problems during use, our after-sales service team will provide remote online technical support to ensure that customers can solve the problem smoothly.

Q: How to customize the product?
A: Customers can customize the module shape, backlight brightness, LCD interface, etc. according to their own needs. We will provide personalized solutions according to the specific requirements of customers.

Q: What functions does the touch panel of TX080HD-30MB-CT support?
A: The module is equipped with a capacitive touch panel, supports multi-touch function, enhances the user interaction experience, and is suitable for applications that require touch operation.

Q: How to get technical support?
A: If customers need technical support when using TX080HD-30MB-CT, they can contact our technical team by email, and we will reply within 24 hours.

Q: Do you provide samples?
A: Yes, we support sample application, and customers can get samples for testing and evaluation before placing an order.
