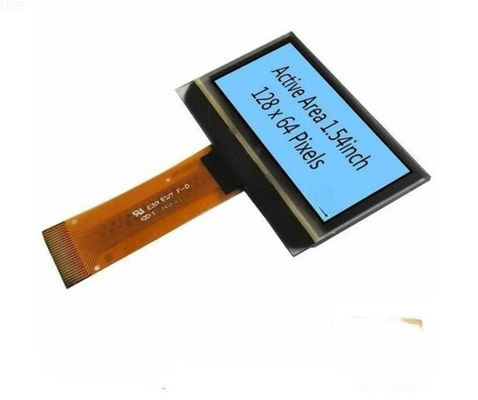

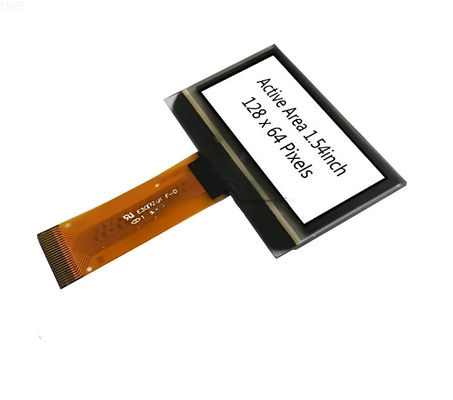

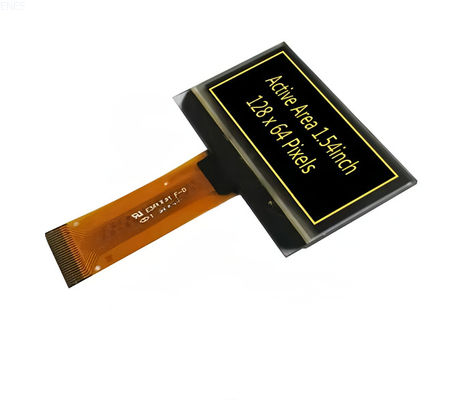

1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309

1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309
1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309
video play

Large Image :  1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309

Product Details:
Place of Origin: Shenzhen China
Brand Name: ESEN
Certification: ISO9001/ISO14001
Model Number: TX154PM2864KLBTG01-C24
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Please make an enquiry
Packaging Details: All the products are packed in right way
Delivery Time: 2-4 weeks
Payment Terms: T/T,L/C
Supply Ability: 300K/mth
Contact Now
Detailed Product Description
Size: 1.54 Inch Display Mode:: Passive Matrix
Display Color: Monochrome (White) Drive Duty: 1/64 Duty
Outline Drawing: According To The Annexed Outline Drawing Number Of Pixels: 128 X 64
Panel Size: 42.04 X 27.22 X 1.4 (mm) Active Area: 35.052 X 17.516(mm)
Pixel Pitch: 0.274x0.274(mm) Pixel Size: 0.254 X 0.254 (mm)
Driver IC: SSD1309 FPC Number: NFP1309-01
Interface: 8-bit 68XX80XX Parallel, 4-Wire SPl, 12C FPC Connecting Mode: 24 Pin Soldering FPC
Luminance: 150cd/m2 Weight: 3.28 (g)
Operating Temperature: -40~85°C
Highlight:

1.54'' OLED LCD Display

,

1.5'' OLED LCD Display

,

128x64 lcd display oled

1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309
Product Specifications
Attribute Value
Size 1.54 inch
Display Mode Passive Matrix
Display Color Monochrome (White)
Drive Duty 1/64 Duty
Outline Drawing According to the annexed outline drawing
Number of Pixels 128 x 64
Panel Size 42.04 x 27.22 x 1.4 (mm)
Active Area 35.052 x 17.516(mm)
Pixel Pitch 0.274x0.274(mm)
Pixel Size 0.254 x 0.254 (mm)
Driver IC SSD1309
FPC Number NFP1309-01
Interface 8-bit 68XX80XX Parallel, 4-Wire SPI, I2C
FPC Connecting Mode 24 Pin Soldering FPC
Luminance 150cd/m2
Weight 3.28 (g)
Operating Temperature -40~85°C
Product Description

X154-2864KLBTG01-C24 Folding Type OEL Display Module Pixel Number: 128 x 64, Monochrome, COG Package

Active Area / Memory Mapping & Pixel Construction
1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309 0
Mechanical Drawing
1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309 1
Pin Definition
1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309 2 1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309 3 1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309 4
Recommended Components
Capacitors:
  • C1, C2: 1μF / 16V, X5R
  • C3: 2.2μF /25V
  • C4: 4.7μF / 25V, X7R
  • C5: 0.1μF/ 25V, X7R
Resistors:
  • R1, R2: 47kΩ
  • R3: 910KΩ, R3 = (Voltage at IREF - VSS) / IREF
Transistors:
  • Q1: FDN338P
  • Q2: FDN335N

Notes: VDD: 1.65V~3.3V VCC_IN: 11.5~12.5V

1.5'' 1.54'' OLED LCD Display 128x64 24 Pin I2C SPI Parallel Interface SSD1309 5

Serial Interface Timing Characteristics: (4-wire SPI)
